Network Switches & Routers

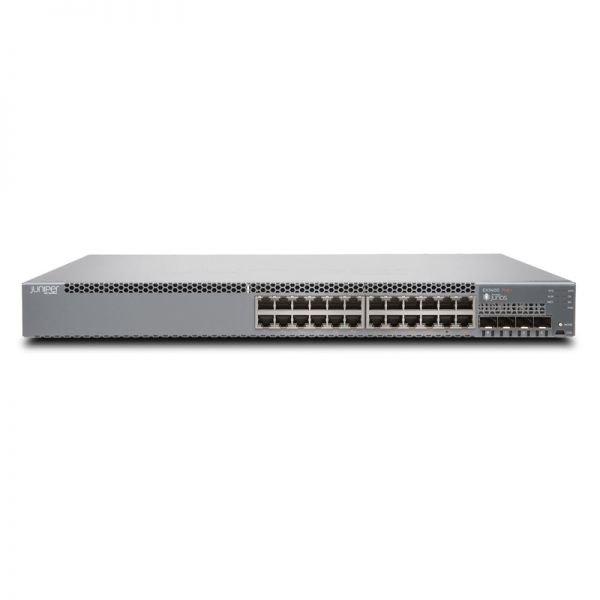

EX3400-24P – Juniper EX3400 Series Ethernet Switches
| Model: | EX3400-24P – Juniper EX3400 Series Ethernet Switches |
| Detail: |
EX3400 24-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+, 2 x 40G QSFP+, redundant fans, front-to-back airflow, 1 AC PSU
|
AED22,599.00
EX3400-24P is a Juniper EX3400 switch with 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for todayās most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Quick Spec
Table 1 shows the quick spec.
| SKU | EX3400-24P |
| Ports | 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Backplane speed | 160 Gbps |
| Data rate | 288 Gbps |
| Throughput | 214 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
Note:
| ā | RJ-45 PoE+ ports | ā£ | Factory Reset/Mode button |
| ā” | Uplink ports | ā¤ | Port status mode LEDs |
| ā¢ | Mini-USB console port | ā„ | Chassis status LEDs |
Note:
| ā | Management Ethernet port | ā¦ | AC power supply |
| ā” | Protective earthing terminal | ā§ | Serial Number ID Label |
| ā¢ | ESD point | āØ | QSFP+ uplink ports |
| ā£ | Fan modules | ā© | RJ-45 console port |
| ā¤ | CLEI code label | āŖ | USB port |
| ā„ | Empty slot for power supply covered by a blank panel |
EX3400-24P Specification |
|
| Description | EX3400 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Backplane speed | 160 Gbps |
| Data rate | 288 Gbps |
| Throughput | 214 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
