Extreme Networks ExtremeSwitching 5420 Series 5420F-48P-4XL – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 48P-4XL
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x SFP-DD (stackable)
  • PoE+ (1480 W)
  • Switch
  • managed
  • rack-mountable

55,499.00 د.إ

Add to Wishlist

Know your gear

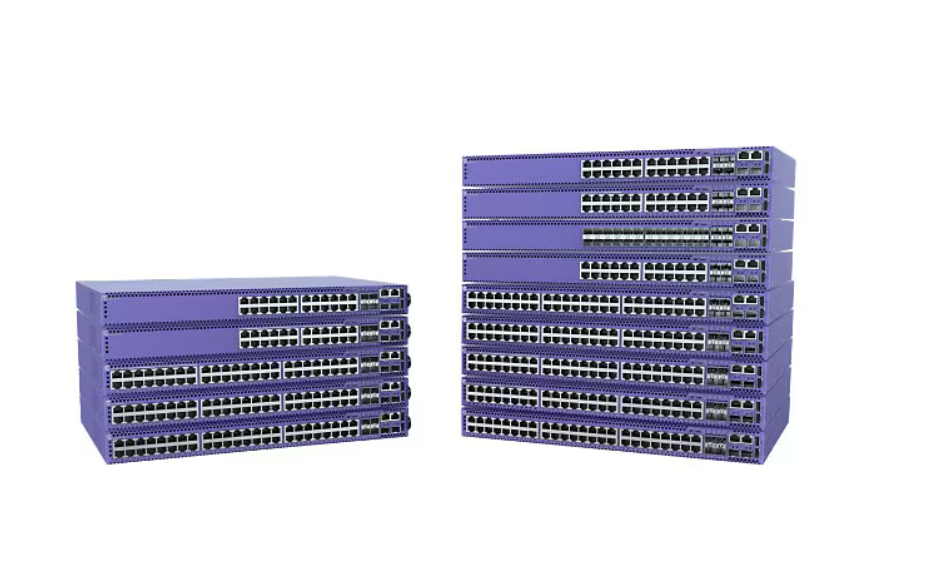

The ExtremeSwitching 5420 Series are high-performance, feature-rich edge switches designed for the next-generation digital enterprise. The 5420 Series universal hardware design provides end-to-end secure network segmentation, in addition to advanced policy capabilities. This makes the 5420 a uniquely flexible platform that can be deployed across a range of edge and wiring-closet environments.
SKU: 5420F-48P-4XL Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching 5420 Series
Model 5420F-48P-4XL
Manufacturer EXTREME NETWORKS
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ae, IEEE 802.3at
Features Auto-sensing per device, Full duplex mode, Half duplex mode, LRM optics support, MACsec support
Form Factor (Hubs & Switches) Rack-mountable
Manageable Yes
Max Units In A Stack 8
PoE Budget 1480 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots SFP-DD (stackable)
Connectivity
Interface Provided 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device SFP-DD, 2 x USB, 4 x 1/10GBase-X SFP+ uplink, 48 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power
Power Provided 860 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Required Voltage AC 100-120/200-240 volt
Software
Software Type Base Software License, ExtremeCloud IQ Pilot (1 year)
Technical Information
Encryption 128-bit AES, 256-bit AES
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate bandwidth: 256 Gbps, Frame rate: 190.5 Mpps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Weight 11.64 lbs
Width 17.4 inch
Depth 13 inch
Physical Characteristics
Color Category Blue
Certifications & Listings
ENERGY STAR Certified No
