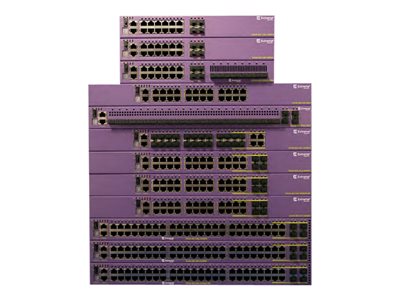

Extreme Networks ExtremeSwitching X440-G2 X440-G2-12p-10GE4 – switch – 12 ports – managed – rack-mountable

Availability:

10 in stock


7,299.00 د.إ

10 in stock

Overview

The ExtremeSwitching X440-G2 series is based on Extreme Networks ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network. The ExtremeSwitching X440-G2 switches are cost-effective campus edge switches with IEEE 802.3at PoE-plus.

Flexible port configuration

This model comes equipped with 4 ports of SFP 1GbE resident on either the faceplate or rear panel of each model. These 1GbE ports are upgradeable to 10Gb SFP+ Ethernet.

High-performance stacking

Up to eight X440-G2 switch can be stacked using SummitStack-V. Each X440-G2 unit comes equipped with 2 stacking ports via an SFP+ interface except for the extended temperature range switches. Standard 10 Gb Ethernet Optics and passive and active cables can be used in the SFP+ ports for stacking X440-G2s together via SummitStack-V.

SummerStack-V – flexible stacking over SFP+ ports

ExtremeXOS supports the SummitStack-V capability using 2 of the SFP+ ports on the X440-G2 as stacking ports, enabling the use of standard cabling and optics technologies used for 10GbE SFP+, SummitStack-V provides long-distance stacking connectivity of up to 40 km while reducing the cable complexity of implementing a stacking solution.

Role-based policy

Utilizing NetSight Policy Management, the role-based policy framework empowers a network administrator to define distinct roles or profiles that represent industry specific operational groups that may exist in an education or a business environment (e.g. administrator, teacher, student, guest). Each defied role is granted individualized access to specific network services and applications and these access privileges remain associated with users as they move across both wired and wireless network access points. Users can be authenticated via IEEE 802.1X, MAC address, or web authentication, and then assigned a pre-defined operational role. Network operations can be seamlessly tailored to meet business-oriented requirements by providing each role with individualized access to network services and applications, thus aligning network resource utilization with business goals and priorities.

Intelligent switching

ExtremeSwitching X440-G2 supports sophisticated and intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching/routing, Provider Bridges, bidirectional ingress and egress Access Control Lists, and bandwidth control by 8 Kbps granularity both for ingress and egress.

IEEE 802.3AT PoE-plus IEEE 802.3af

Power over Ethernet has been widely used in the campus enterprise edge network for Ethernet-powered devices such as wireless access points, Voice over IP phones, and security cameras. Ethernet port extenders can also utilize PoE, making installation and management easier and reducing maintenance costs. The newer IEEE 802.3at PoE-plus standard expands upon Power over Ethernet by increasing the power limit up to 30 watts, and by standardizing power negotiation by using LLDP. X440-G2 supports IEEE 802.3at PoE-plus and supports standards-compliant PoE devices today and into the future.

Audio Video Bridging (AVB)

The X440-G2 series supports IEEE 802.1 Audio Video Bridging to enable reliable, real-time audio/video transmission over Ethernet. AVB technology delivers the quality of service required for high-defiition and time-sensitive multimedia streams.

Specifications

General
Device Type Switch – 12 ports – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 12 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
Performance Aggregate switching bandwidth: 104 Gbps Forwarding performance: 77.4 Mpps Latency (64-byte packets): 4 µs
Capacity Virtual interfaces (VLANs): 4094Ā QoS hardware queues per port: 8
MAC Address Table Size 16K entries
Jumbo Frame Support 9216 bytes
Features Traffic shaping, DoS attack prevention, CLEAR-Flow Security Rules Engine, 1.5MB packet buffer
Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
Processor X MIPS: 1 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Status Indicators Port status, power, fan
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45 PoE+ – 30 WĀ 4 x 10GBase-X SFP+Ā 1 x console RJ-45 managementĀ 1 x management (Gigabit LAN) RJ-45
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 264 Watt
Features Redundant Power System (RPS) connector
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, RoHS, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, WEEE, EN 60825-1, EN55024 Class A, CDRH, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, China RoHS, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, RCM, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN 55022:2006+A1:2007 Class A, FCC CFR47 Part 15 A, ACMA
Software / System Requirements
Software Included ExtremeXOS Edge
Dimensions & Weight
Width 12 in
Depth 10.3 in
Height 1.7 in
Weight 6.66 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 95% (non-condensing)
General
Capacity Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8
Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
Device Type Switch – 12 ports – managed – stackable
Enclosure Type Rack-mountable 1U
Features Traffic shaping, DoS attack prevention, CLEAR-Flow Security Rules Engine, 1.5MB packet buffer
Flash Memory 4 GB
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Performance Aggregate switching bandwidth: 104 Gbps ¦ Forwarding performance: 77.4 Mpps ¦ Latency (64-byte packets): 4 µs
Ports 12 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
Processor X MIPS: 1 GHz
RAM 1 GB DDR3 SDRAM
Status Indicators Port status, power, fan
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 10.3 in
Height 1.7 in
Weight 6.66 lbs
Width 12 in
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, RoHS, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, WEEE, EN 60825-1, EN55024 Class A, CDRH, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, China RoHS, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, RCM, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN 55022:2006+A1:2007 Class A, FCC CFR47 Part 15 A, ACMA
Power
Features Redundant Power System (RPS) connector
Installed Qty 1 (installed) / 2 (max)
Power Consumption Operational 264 Watt
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included ExtremeXOS Edge
