Extreme Networks ExtremeSwitching X690 Series X690-48T-2Q-4C – switch – 54 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 48T-2Q-4C
  • L3
  • 48 x 10GBase-T + 4 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28 + 2 x 10/40 Gigabit QSFP+
  • Switch
  • managed
  • rack-mountable

35,299.00 د.إ

Add to Wishlist

Know your gear

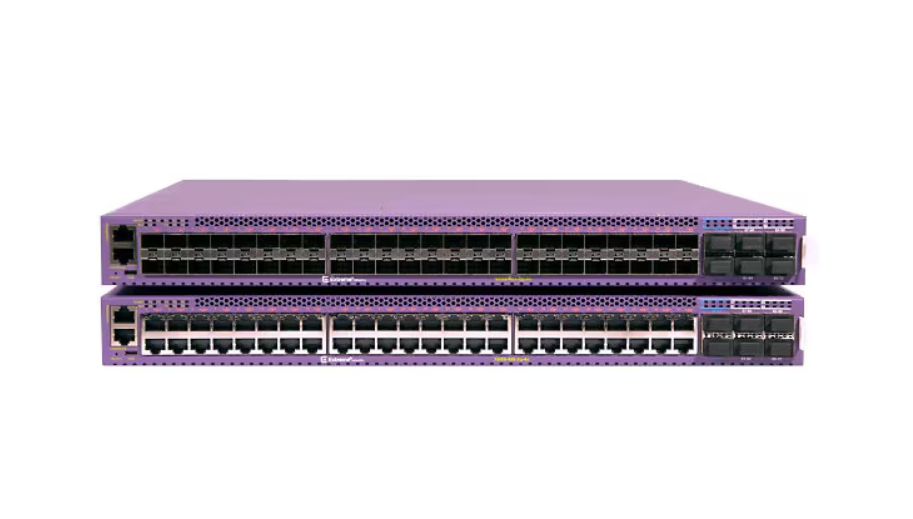

The Extreme Networks ExtremeSwitching X690 Series X690-48T-2Q-4C switch is a high-density purpose-built 10 GB/100 GB switch. It is ideal for top-of-rack and edge-leaf applications within high-performance data centers. This 48-Port switch with 10 Gigabit, 25 Gigabit, 40 Gigabit, 50 Gigabit and 100 Gigabit QSFP28 type ports supports up to two power supplies.

SKU: 17360 Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X690 Series
Model X690-48T-2Q-4C
Manufacturer EXTREME NETWORKS
Processor
Clock Speed 2.4 GHz
Memory
Memory Technology DDR3 SDRAM
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm
Features 12MB packet buffer, Cut-through, DCBX support, Enhanced transmission selection, Flexible universal forwarding tables (UFT), Hot swappable fan, OnePolicy Profile, PFC, Scaling function, sFlow, SDN, Store and forward, VXLAN, VTEP support, ZTP
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 272K entries
Manageable Yes
Ports 54
Product Type Switch
Stackable Stackable
Subcategory Network hubs and switches
Expansion Slots
QSFP Slots 10/40 Gigabit QSFP+
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console RJ-45, 1 x micro-USB Type B storage, 2 x 40Gbit LAN QSFP+, 4 x 100Gbit LAN QSFP28, 48 x 10GBase-T RJ-45
Port Quantity 48
Port Type 10GBase-T
Ports Type (2nd) 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28
Power
Hot-Plug Hot-plug
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type ExtremeWare XOS Advanced Edge
Technical Information
Built-in Devices 32 GB SSD
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Capacity Authenticated policy users: 512, Egress rules: 1000, Ingress rules: 8000, IP multicast entries: 130000, IP multicast groups: 4000, IPv4 hosts: 146000, IPv4 rules: 512, IPv6 hosts: 32000, IPv6 rules: 512, L2 rules: 440, Longest prefix match (LPM) entries (IPv4): 256000, Longest prefix match (LPM) entries (IPv6): 128000, MAC rules: 512, Permit/deny rules: 1976, Policy profiles: 63, Queues per port: 8, VLAN/VMANs: 4092
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Latency: 2.3 µs, Switching capacity: 1.76 Tbps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 2
Included Items
Included Accessories Rack mount kit
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Width 17.4 inch
Depth 19.2 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, CB 60950-1, CCC, CDRH, China RoHS, CISPR 32:2015 Class A, CSA 22.2 No. 60950-1, Directive 2014/30/EU, Directive 2014/35/EU, EMC, EN 300 386 V1.6.1, EN 55024:2010, EN 55032:2015 Class A, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11:2004, EN 61000-4-2:2008, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753, ETSI EN 300 019-2-2 V2.1.2, ETSI EN 300 019-2-3 V2.1.2, FCC CFR21 Part 1040, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, KCC, RoHS, UL 60950-1, WEEE
ENERGY STAR Certified No
