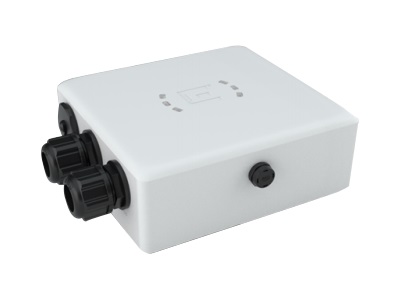

Extreme Networks ExtremeWireless AP360i

Add to Wishlist

Radio Technology

  • 5 GHz 2×2:2
  • 2.4 GHz 2×2:2

Radio Modes – SSR

  • 2.4 GHz / 5 GHz
  • 5 GHz / 5 GHz – Dual 5 GHz
  • Sensor (2.4 GHz/5 GHz) / 5 GHz

High Density Environments

  • Delivers exceptional end-user experience even in the densest user environments

Designed for Harsh Environments

  • IP67 Outdoor Rated

WPA3 Support

  • Includes the latest WPA3 Wi-Fi security standard delivering robust protections for users and IoT devices

Fully Functional over 802.3af

  • USB port usage requires 802.3at

Cellular Coexistence Filter (CCF)

  • Minimizes the impact of interference from cellular networks

Smart Management Choices

  • ExtremeCloud IQ delivers powerful, simple and secure public or private cloud management capabilities [Future]
  • ExtremeCloud Appliance or VX or NX controller is ideal for on-premises requirements

د.إ6,399.00

Add to Wishlist

Overview:

The AP360 is designed for harsh environments; from hurricane force winds to sub-zero temperature, IP67 rated and designed to extend Extreme’s Wi-Fi 6 outdoors. Integrated GPS and BLE allows for state of the art location applications for asset tracking.

The AP360 is based on new system-on-a-chip (SoC) with two built in dual band 2×2 radios providing the best value with Wi-Fi 6 high-efficiency. Priced for the mass market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance. While other vendors may reduce features and functionality, the AP360 retains all the capabilities of higher-end APs, including software-selectableradios (SSR). 802.11ax data rates are available concurrently in both the 2.4 GHz and 5 GHz band. The AP360 also provides the flexibility to provide the same data rates simultaneously on two 5 GHz channels using dual-5 GHz SSR technology.

Despite the exponential growth of users, BYOD devices, IoT, highBandwidth applications and security threats straining the infrastructure, the AP360 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.

Features:



Security

The AP360 delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security.

Management Analytics

In conjunction with management system, cloud or onpremises, the AP360 provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles. In each context, administrators can adjust dashboards from widget library.

Wi-Fi 6 Technology

Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level.

RF Monitoring

Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with SmartRF, a robust RF management system with AI/ ML like functionality. Built on 10 years of experience across thousands of large-scale networks and millions of access points, SmartRF algorithms manage channels, radios, load balancing, band steering and many other attributes of the RF.

Programable Radios

Extreme launched the Industry’s first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP360 intelligent monitoring of the software configurable radios enables network managers configure network RF topology based on user environment and configure the access points in different modes as required.

Integrated BLE

To support both IoT and Guest Engagement services the AP360 integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or sitespecific information.

SKU: AP360i-FCC Category: Tag:

Specifications:



Radio Specifications

  • SSID per Radio/Total: 8/16
  • Users per Radio/total: 512/1024

802.11a

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM Modulation)
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 – MCS15 (6.5MBps – 300Mbps)
  • 2×2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation

802.11ac

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2
  • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
  • TxBF ( Transmit Beamforming)

802.11ax

  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11ax Modulation (1024-QAM)
  • Dual-band OFDMA
  • Rates (Mbps):
    • 5G: HE0-HE11 (8 Mbps – 1200 Mbps)
    • 2.4G: HE0-HE11 (8 Mbps – 574 Mbps)
  • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HE20/HE40/HE80 support for 5 GHz
  • HE20/HE40 support for 2.4 GHz
  • DL SU-MIMO and MU-MIMO
  • TxBF (Transmit Beamforming)

Interfaces

  • (2) Autosensing 10/100/1000 Ethernet

Power Specifications

  • IEEE 802.3af PoE Power

Radios

  • BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant
  • Internal GPS – accuracy is 2.5m- 3m in open sky

Peak Gain

Software Mode Radio 1 Radio 2 Radio 3
Dual Band 2.4 Ghz 4.2 dBi 5 Ghz 4.74dBi 4.5 dBi
Sensor on R1 2.4 Ghz 4.2dBi
5 Ghz 4.5dBi		 5 Ghz 4.74dBi 4.5 dBi
Dual 5G 5 Ghz 4.5dBi 5 Ghz 4.74dBi 4.5 dBi

Power Options

  • Power Draw: Typical: 9.5W Max: 12.1W
  • 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
  • 802.3af Power over Ethernet injector

Physical

  • 7.4″ x 5.7″ x 1.9″ (190mm x 145mm x 50mm)
  • AP360i/e: estimate 2.2 lbs (1.0kg)

Antennas

  • AP360i – Internal Antennas
    • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional antennas
    • (2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
    • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE

Mounting

  • Pole Mount with 15 degree tilt (sold as an accessory)
  • 12″ Extension arm (sold as an accessory)
  • 10″ Extension w/2-axis 80 degree tilt (sold as an accessory)

Environmental

  • Operating: – 40°C to 60°C, Storage: -40 to 70 °C
  • Humidity: 10% to 95% (non-condensing)

Environmental Discharge

  • +/-4 kV (contact discharge)/ +/-8 kV (Air Discharge)

Regulatory Compliance

Product Safety Certifications

  • FCC CFR 47 Part 15, Class B
  • ICES-003, Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS247
  • AS/NZS4268 + CISPR32
  • IEC/EN 60601-1-2
  • EN 62311
  • EN 50385
  • EN 301 489-1
  • EN 301 489-17
  • EN 55032, (Class B)
  • EN 55011, (Group 1, Class B)
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 300 328
  • EN 301 893
  • EN 50581
  • IR2030/8/3
