FAP-321E Overview
The FortiAP 321E is a dual-radio medium-density 3×3 802.11ac Wave 2 access point. This Enterprise-class access point is ideal for environments such as offices, classrooms, or retail establishments with performance throughput of up to 1,300 Mbps at 5GHz.
Quick Specs

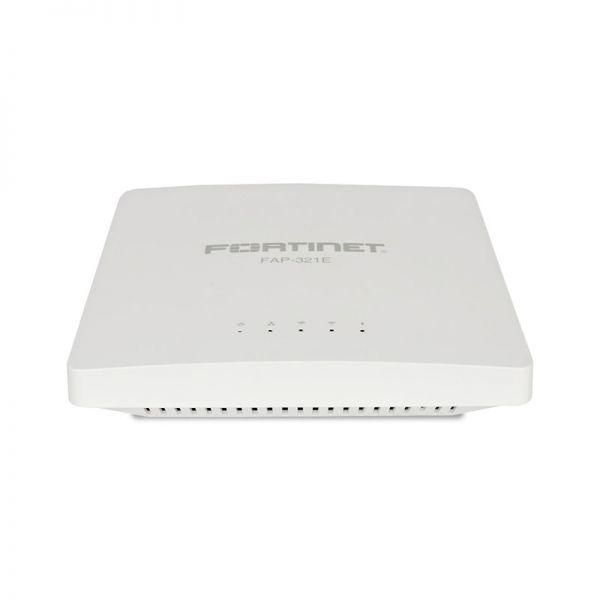

Figure 1 shows the appearance of FAP-321E.
Table 1 shows the Quick Specs.
| Product Code | FAP-321E |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 16.8 Watt |
Product Details
Figure 2 shows the front panel of FAP-321E.
FAP-321E provides these features:
- Unified Management
Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.
- Advanced Security Protection
Wireless LAN security done right, from the leader in network security. Integrate Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.
- Built-in Wi-Fi Security
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.
Compare to Similar Items
Table 2 shows the comparison of FAP-321E.
| Module | FAP-321E | FAP-231F |
| Device Type | Wireless access point | Wireless access point |
| Ruggedized Design | Indoor | Indoor |
| Power Over Ethernet (PoE) Supported | PoE+ | 1 x 802.3at PoE default
1 x 802.af PoE no USB function |
| Power Consumption Operational | 16.8 Watt | 17W |
| Interfaces | 1 x 1000Base-T (PoE+) – RJ-45 ¦ 1 x management (RS-232) – RJ-45 | 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port |
FAP-321E Specification
FAP-321E specification |
|
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1300 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Routing Protocol | MLD |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 16 |
| Features | Wireless Intrusion Detection System (WIDS), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, iBeacon technology, packet aggregation A-MPDU, packet aggregation A-MSDU, spectrum analyzer, Packet Sniffer Mode, MIMO Power Save, Short Guard Interval, 3×3:3 MU-MIMO technology, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support |
| Encryption Algorithm | TLS, PEAP, TTLS, WPA, WPA2, WEP, EAP-SIM, EAP-AKA, WPA3, EAP-FAST |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-SIM |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2 |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 1.5 in |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE+) – RJ-45 ¦ 1 x management (RS-232) – RJ-45 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 16.8 Watt |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 6 |
