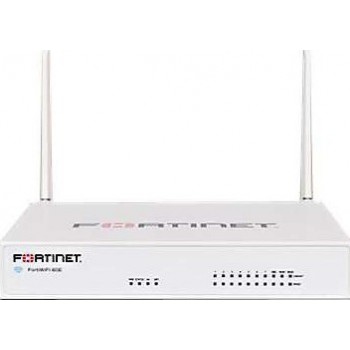

Fortinet FortiGate-60E / FG-60E Next Generation (NGFW) Firewall Appliance
Main Features
- UTM Bundle
- security appliance
- with 3 years FortiCare 24X7 Comprehensive Support + 3 years FortiGuard
- GigE
- desktop
The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass – for the industry’s reliable protection against the most advanced security threats and targeted attacks.
FortiGate is based on FortiASIC, a purpose-built integrated architecture that provides extremely high throughput and exceptionally low latency, while delivering perfect security effectiveness and consolidation. Targeted for distributed enterprises, the FortiGate 60E series contains consolidated security and networking functionality, various connectivity options along with impressive performance in a compact form factor.
Networking | ||||
Connectivity Technology: | Wired | |||
Data Link Protocol: | Ethernet , Fast Ethernet , Gigabit Ethernet | |||
Features: | Antivirus analysis , Application filtering , ASIC VPN , Firewall protection , Intrusion Prevention System (IPS) , Manageable , URL filtering , VPN support , Web threat protection | |||
Form Factor: | Desktop | |||
Network Transport Protocol: | IPSec | |||
Remote Management Protocol: | HTTP | |||
Switching Protocol: | Ethernet | |||
Type: | Security appliance | |||
nterface Provided | ||||
Connector Type: | RJ-45 | |||
Qty: | 2 | |||
Type: | 1000Base-T | |||
WAN DMZ: | WAN | |||
|
|
|
||
Qty: | 1 | |||
WAN DMZ: | DMZ | |||
|
|
|
||
Qty: | 7 | |||
|
|
|
||
Connector Type: | Type A | |||
Type: | USB | |||
|
|
|
||
Type: | Console | |||
|
||||
Service | ||||
Support Details Full Contract Period: | 3 years | |||
Support Details Service Included: | Advance parts replacement | |||
Support Details Type: | Extended service agreement | |||
|
|
|
||
Support Details Service Included: | Phone consulting | |||
Support Details Type: | Technical support | |||
|
|
|
||
Support Details Service Included: | E-mail consulting | |||
Support Details Type: | Product info support | |||
|
|
|
||
Support Details Service Included: | Web knowledge base access | |||
|
|
|
||
Support Details Service Included: | Web support | |||
|
|
|
||
Support Details Type: | New releases update | |||
|
|
|
||
Support Details Type: | Virus definitions update | |||
|
|
|
||
Support Details Type: | Intrusion definitions update | |||
|
|
|
||
Support Details Type: | URL database update | |||
|
|
|
||
Support Details Type: | E-mail database update | |||
|
||||
Miscellaneous | ||||
Compliant Standards: | C-Tick , CB , cUL , FCC Part 15 B , ICSA Antivirus , ICSA Firewall certified , ICSA IPSec certified , ICSA Network IPS , UL , VCCI | |||
Encryption Algorithm: | 256-bit AES , SHA-1 , SSL | |||
|
||||
Environmental Parameters | ||||
Humidity Range Operating: | 20 – 90% (non-condensing) | |||
Max Operating Temperature: | 104 °F | |||
Min Operating Temperature: | 32 °F | |||
|
||||
Header | ||||
Brand: | Fortinet | |||
Compatibility: | PC | |||
Kit: | UTM Bundle | |||
Manufacturer: | Fortinet | |||
Model: | 60E | |||
Packaged Quantity: | 1 | |||
Product Line: | Fortinet FortiGate | |||
|
||||
OS Provided | ||||
Type: | FortiOS 5 | |||
|
||||
Power Device | ||||
Frequency Required: | 50/60 Hz | |||
Nominal Voltage: | AC 120/230 V | |||
Power Consumption Operational: | 14 Watt | |||
Type: | External power adapter | |||
|
||||
Service & Support | ||||
Bundled Services: | 3 years FortiCare 24X7 Comprehensive Support + 3 years FortiGuard | |||
|
||||
Service & Support Details | ||||
Response Time: | Next business day | |||
|
||||
Capacity | ||||
Type: | Concurrent TCP sessions | |||
Value: | 1300000 | |||
|
|
|
||
Type: | New sessions per second | |||
Value: | 30000 | |||
|
|
|
||
Type: | Firewall policies | |||
Value: | 5000 | |||
|
|
|
||
Type: | Gateway to gateway IPSec VPN Tunnels | |||
Value: | 200 | |||
|
|
|
||
Type: | Client to gateway IPSec VPN tunnels | |||
Value: | 500 | |||
|
|
|
||
Type: | Concurrent SSL VPN users | |||
Value: | 100 | |||
|
|
|
||
Type: | Virtual domains | |||
Value: | 10 | |||
|
|
|
||
Type: | Number of FortiAP devices | |||
|
|
|
||
Type: | Number of FortiToken devices | |||
|
|
|
||
Type: | Number of FortiClient devices | |||
|
||||
Performance | ||||
Type: | Firewall throughput | |||
Value: | 3 Gbps | |||
|
|
|
||
Type: | Firewall latency (64-byte UDP) | |||
Value: | 3 µs | |||
|
|
|
||
Value: | 4.5 Mpps | |||
|
|
|
||
Type: | VPN throughput (512-bit IPSec) | |||
Value: | 2 Gbps | |||
|
|
|
||
Type: | VPN throughput (SSL) | |||
Value: | 150 Mbps | |||
|
|
|
||
Type: | IPS throughput (HTTP) | |||
Value: | 1.4 Gbps | |||
|
|
|
||
Type: | SSL inspection throughput | |||
Value: | 340 Mbps | |||
|
|
|
||
Type: | NGFW throughput | |||
Value: | 250 Mbps | |||
|
|
|
||
Type: | CAPWAP throughput | |||
Value: | 1.5 Gbps | |||
|
||||
Dimensions & Weight | ||||
Depth: | 6.3 in | |||
Height: | 1.5 in | |||
Weight: | 31.74 oz | |||
Width: | 8.5 in | |||
|
||||
Optical Storage | ||||
Type: | None |
