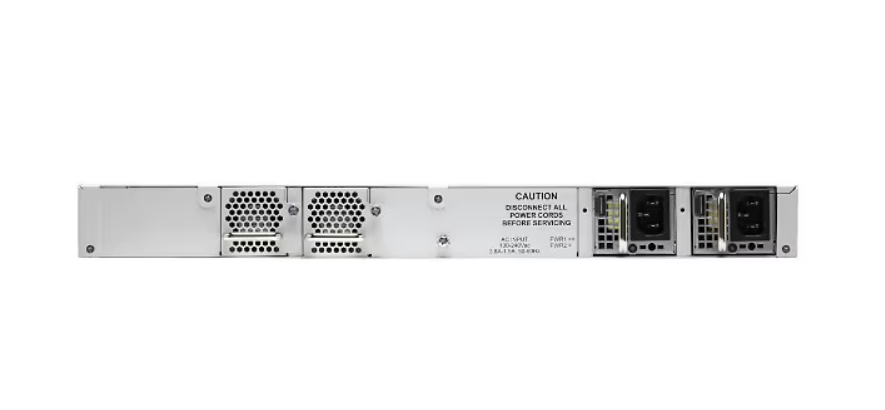

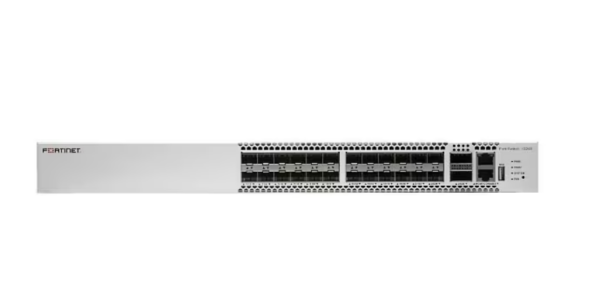

Fortinet FortiSwitch 1024E – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28
  • rack-mountable
  • managed
  • front to back airflow

AED77,999.00

Add to Wishlist

Know your gear

FortiSwitch data center switches deliver a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency, and scalability. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. FortiSwitch data center switches meet these challenges by providing a high-performance switching platform, with a low total cost of ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today’s bandwidth-intensive environments.
SKU: FS-1024E Category: Tag:
Category Specification
Overview
Brand Fortinet
Product Line Fortinet FortiSwitch
Model 1024E
Manufacturer Fortinet
Memory
RAM Installed 8 GB
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z
Features 16MB packet buffer, 802.1x authentication, ACL support, Auto-negotiation, Back Pressure Support, Black list, Cut-through, DHCP client, DHCP relay, DHCP snooping, DSCP based ToS, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Firewall protection, Flow control, FortiLink Mode, High Availability, IGMP snooping, IP forwarding support, IP-MAC binding, LACP, Link Aggregation Group (LAG), LLDP-MED, MAC Access Bypass (MAB), MAC based VLAN, Multichassis link aggregation (MC-LAG), MSTP support, Port mirroring, Port trunking, Port-based VLAN, Priority-based flow control, Private VLAN, RSTP support, RESTful APIs, sFlow, SNTP support, STP support, Store and forward, Storm Control, STP Root Guard, Syslog support, Telnet server, ToS, VLAN Tagging, White list
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support Yes
MAC Address Table Size 64K entries
Manageable Yes
Ports 24
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1/2c/3, SSH, Telnet, TFTP
Routing Protocol BGP, Bidirectional Forwarding Detection (BFD), ECMP, IS-IS, OSPFv2, PIM-SSM, RIP-2, Static IPv4/IPv6 routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 2 x 100Gbit LAN QSFP28, 24 x 1/10Gbit LAN SFP+
Port Quantity 24
Port Type 1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd) 100 Gigabit QSFP28
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption (Operational) 176 watt
Power Supplies Installed 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Required Voltage AC 100-240 volt
Technical Information
Max Operating Temperature 104 Ā°F
Max Storage Temperature 158 Ā°F
Min Operating Temperature 32 Ā°F
Min Storage Temperature -13 Ā°F
MTBF 10 Years
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Authentication Method RADIUS, Secure Shell (SSH)
Capacity ACL entries: 18,000, Host entries: 24,000, Maximum aggregation groups: 24, Packet buffer size: 8 MB, Queues per port: 8, Routing entries: 24,000, VLANs supported: 4000
Device Type Internal power supply
Packaged Quantity 1
Performance Latency: 1 Āµs, Packets per second: 1309 Mpps, Switching capacity: 880 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 14.51 lbs
Width 17.3 inch
Depth 18.1 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
EPEAT Compliant No
TCO Certified No
