Galaxy Audio ECM Wireless Microphone System

Add to Wishlist

1,099.00 د.إ

Add to Wishlist
Key Features
  • Frequency Band D
  • MBP52 Bodypack Wireless Transmitter
  • Head Worn Microphone
  • ECMR UHF Receiver
  • 16 Selectable Channels
  • Diversity Antennas
  • IR Sync

Galaxy Audio ECMR/52HSD Overview

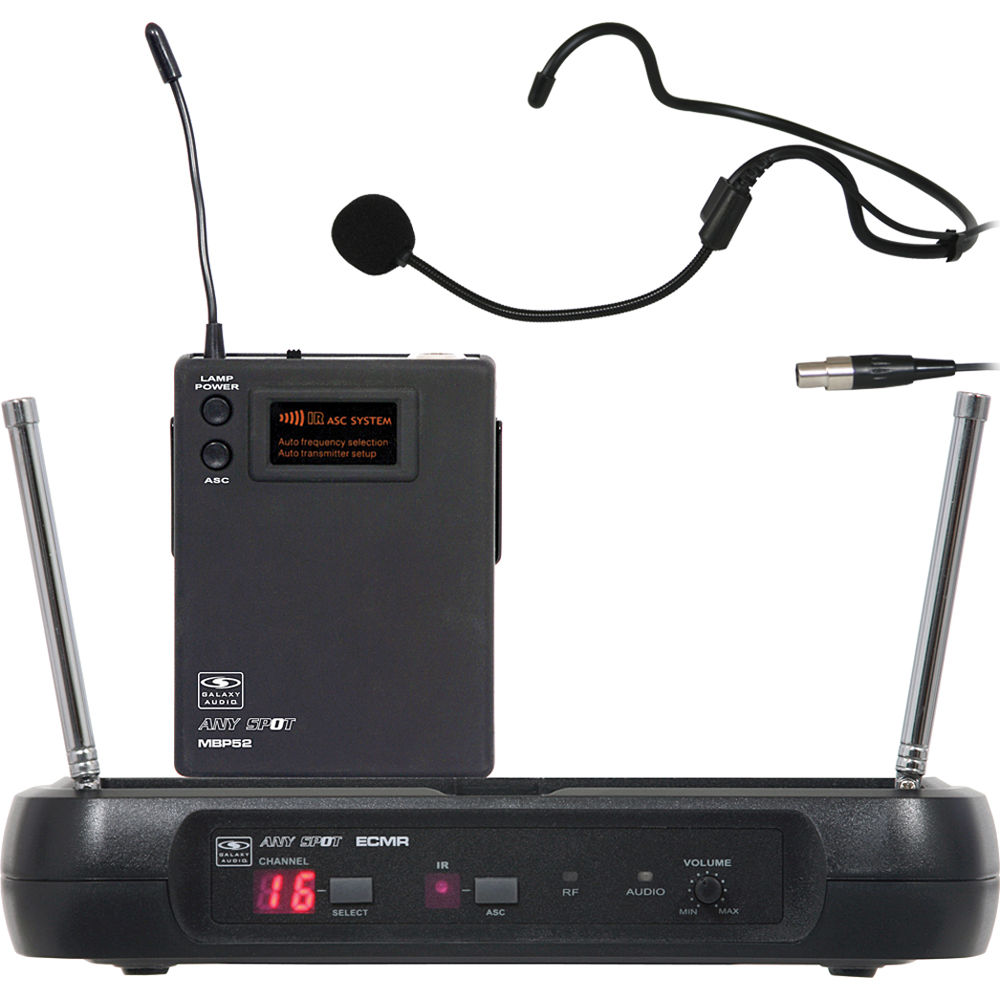

The Galaxy Audio ECM Wireless Microphone System is an affordable, wireless UHF microphone system ideal for general speech applications, presentations, instruction, small performances and more. The system features the ECMR receiver with 16 user selectable channels and diversity reception. Infrared (IR) channel sync is possible between the receiver and transmitter. This system includes the MBP52 bodypack transmitter and head worn microphone for hands-free microphone operation.

16 Selectable Channels
Output Volume Control
AF Level Indicator
IR Sync
Squelch Adjustment
XLR / ¼” Outputs
Rugged Plastic Casing
SKU: ECMR/52HSD Category: Tag:

Galaxy Audio ECMR/52HSD Specs

System
Type of System Diversity Bodypack Head Worn UHF Microphone
RF Carrier Frequency Range 655-679MHz
Approx. Working Range 150′ (50m)
Overall Frequency Response 60Hz to 16kHz +/- 3dB
THD +/- 30kHz Deviation 1kHz tone
Dynamic Range > 90dB A-weighted
# Of Channels 16 Channels

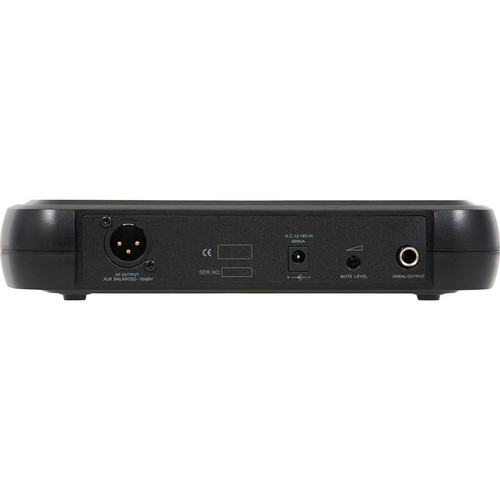

Receiver
Type of Receiver ECMR Diversity
Type of Outputs XLR and 1/4″ Phone
Power Requirements 13.5VDC at 300mA, Supplied by External Power Supply
Battery Type/Approx. Life None – AC power only
Display Dual Digit LED
Antenna Type Two band dependent antennas
Dimensions 1.75 x 9.25 x 4.75″ (44.45 x 235 x 121mm) (HxWxD)
Weight 0.85 lbs. (0.39 kg)

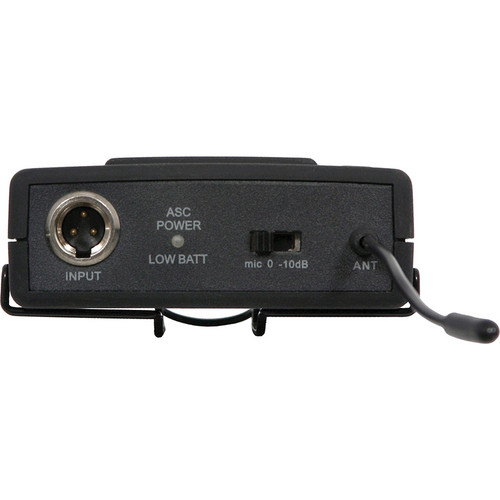

Transmitter
Type of Transmitter MBP52 Bodypack Transmitter
Type of Microphone Head Worn
Battery Type/Approx. Life AA Size Alkaline Batteries
Life: 8 Hours
Mute Switch not specified by manufacturer
Level Control Mic / O / -10dB
Antenna Type Internal
Display Backlit LCD
Dimensions 3.3 x 2.6 x 1″ (85 x 65 x 24mm)
Weight 3 oz (85 g)
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 17.6 x 11.4 x 3.2″
