Galaxy Audio ECMR/52GTR Wireless Microphone System (D)

Add to Wishlist

AED999.00

Add to Wishlist
Key Features
  • Frequency Code: 584-607MHz
  • ¼” Audio Output
  • ASC Synchronizing Signal Transmit Button
  • Channel Select Button
  • Mute Level Option
  • Receiver Volume Control
  • Rugged Plastic Casing
  • Diversity Antennas Mounted to Front
  • IR Sync
  • 16 Selectable Channels

Galaxy Audio ECMR/52GTR Overview

The ECMR/52GTR Wireless Microphone System (D) from Galaxy Audio includes a 200′ (61 m) range, which provides a lot of wiggle room for anyone putting on a performance. The ECMR has 16 selectable channels, diversity antennas, which are mounted to the front of the rugged plastic casing and allows for an IR sync. The MBP52 bodypack transmitter has a 0/-10/mic selector switch.

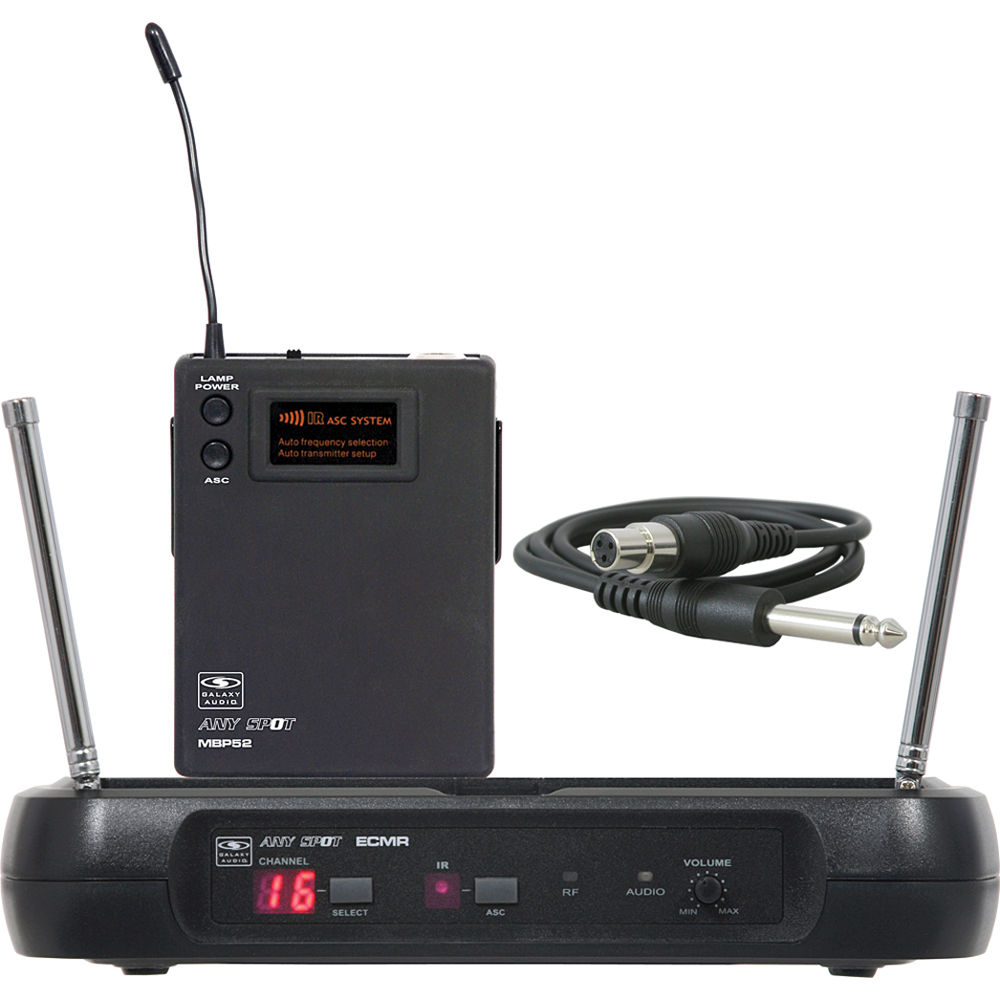

The system includes the ECMR (receiver), MBP52 (bodypack transmitter), AS-GTR (guitar cable), power supply and 1/4-1/4″ output cable. Everything you need for a flexible wireless microphone system.

The ECMR/52GTR Wireless Microphone System (D) has 16 selectable channels, IR sync and diversity antennas mounted to the front of the rugged plastic casing
The solution ships with an ECMR (receiver), MBP52 (body pack transmitter), AS-GTR (guitar cable), power supply, and a 1/4-1/4″ output cable
The ECMR can be used and will sync with the MBP52 transmitter. The transmitter is powered by (2) AA batteries. The MBP52 bodypack transmitter has a 0/-10/Mic selector switch
The guitar cable (AS-GTR) works with all Galaxy bodypack transmitters
SKU: ECMR/52GTRD Category: Tag:

Galaxy Audio ECMR/52GTR Specs

System Channels: 16
Frequency range: Code D 584-607MHz
Transmitter output level: 10dBm
Band: UHF
Operating range: Under typical conditions 150′ (50m)
Note: Actual range depends on RF signal absorption, reflection and interference
Audio frequency response: +/-3dB 70Hz-16KHz
Total harmonic distortion: +/-30KHz deviation 1KHz tone Dynamic range: >90dB A-weighted
Operating temperature: Range 14-122ºF (-10-50 Cº)
Receiver Audio output level: +/-30kHz deviation, 1KHz tone)
XLR connector (into 600 ohms load) -12dBV
1/4″ connector (into 3 kohms load) -18dBV
Impedance XLR connector: 200 ohms
1/4″ connector: 1 kohms
Outputs XLR output: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio
Sensitivity -93dBm for 30dB
Image Rejection < 90dB
Power Requirements 13.5 VDC at 300mA, supplied by external power
Dimensions (HxWxD) 1.8 x 9.3 x .8″ (44.5 x 235 x 121mm)
Weight 0.9 lb. (0.4kg)
Transmitter Bodypack
Maximum Audio Input Level Analog 0-10dBV
Gain Mic/0/-10dB
Impedance 5 kohms
Power Requirements 2 x AA size alkaline or rechargeable batteries
Battery Life About 8 hours
Dimensions (H x W x D) 3.3 x 2.6 x 1″ (85 x 65 x 24mm)
Weight 3 oz. (85 g)
Cable Guitar 1/4″ cable (AS-GTR): Guitar/instrument cable, TA3F connector, works with all Galaxy bodypack transmitters. Use with any guitar or bass guitar. 1/4″ to mini XLR connector
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 17.75 x 11.5 x 3″
