UPS , Power Back up and accessories

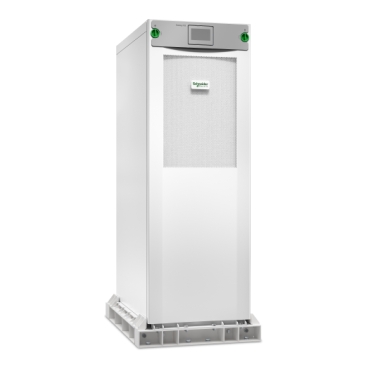

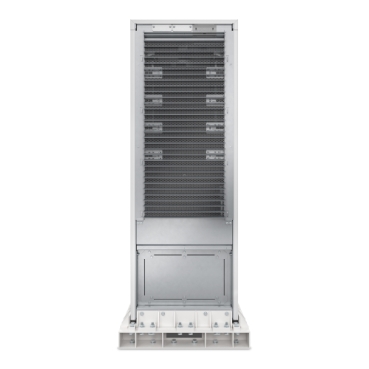

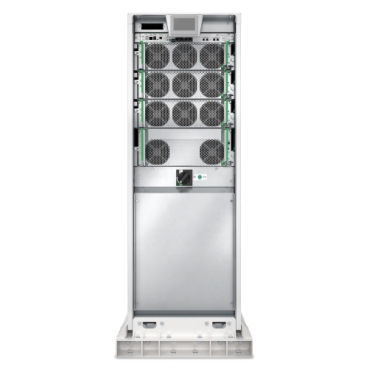

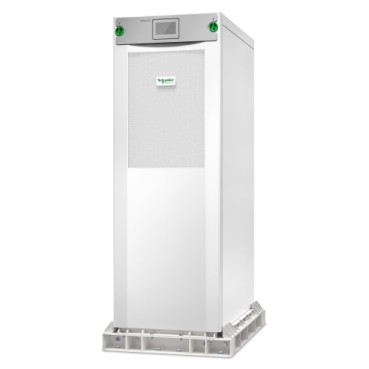

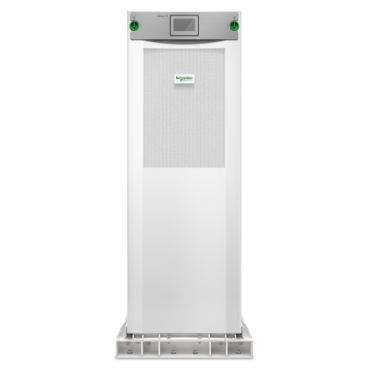

Galaxy VS UPS 60kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5×8
AED224,499.00
UPS Specifications Table
| Category | Specification |
|---|---|
| Overview | 60kW, 400V 3-phase UPS; easy to deploy; for edge, small/medium data centers and industrial use. Includes 5×8 start-up service, halogen-free cables. Marine certified. |
| Lead Time | Usually Ships within 2 Weeks |
Electrical Specifications
| Input | Output |
|---|---|
| Main Input Voltage | 400 V 3 phase |
| Other Input Voltage | 380 V / 415 V |
| Input Frequency | 40 – 70 Hz |
| Max Input Current per Phase | 108 A |
| Max Short Circuit Withstand (Icw) | 65 kA |
| Input THD | < 3% at full load |
| Load Power Factor | 0.7 leading to 0.7 lagging (no derating) |
| Main Output Voltage | 400 V 3 phase |
| Output Frequency | 50 Hz / 60 Hz (sync to mains) |
| Output Frequency Accuracy | ±0.1% (not synced) |
| Max Configurable Power (Watts/VA) | 60 kW / 60 kVA |
| Crest Factor | 2.5 |
| Waveform | Sine wave |
| Output Voltage Tolerance | ±1% after 50ms |
| Output Voltage THD | < 1% (linear), < 5% (non-linear) |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Bypass Type | Built-in Static Bypass |
| Bypass Voltage Tolerance | ±10% |
Battery & Runtime
| Attribute | Value |
|---|---|
| Battery Type | External battery system, Li-Ion, VRLA |
| End of Discharge Voltage | 384 V DC |
| Max Discharge Current | 163 A |
| Battery Power | 0 VAh runtime |
| Extendable Runtime | No |
General Specifications
| Attribute | Value |
|---|---|
| Redundant | No |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Galaxy VS |
| Range Compatibility | Galaxy VS |
| Provided Equipment | Dust filter, EcoStruxure IT, Installation guide, Integrated network management, Power modules installed, Start-Up Service |
Physical Specifications
| Attribute | Value |
|---|---|
| Color | White |
| Height | 58.46 in (148.5 cm) |
| Width | 2.05 in (52.1 mm) |
| Depth | 33.35 in (84.7 cm) |
| Weight | 551.2 lb (250 kg) |
| USB Compatible | No |
Environmental Specifications
| Attribute | Value |
|---|---|
| Operating Temp | 32 – 104 °F (0 – 40 °C) |
| Relative Humidity (Operation) | 0 – 95%, non-condensing |
| Operating Altitude | 0 – 3300 ft |
| Storage Temperature | -13 – 131 °F (-25 – 55 °C) |
| Storage Relative Humidity | 10 – 80%, non-condensing |
| Acoustic Level | 68 dBA |
| Online Thermal Dissipation | 6150 Btu/h |
| IP Degree of Protection | IP21 |
Standards and Certifications
| Compliance |
|---|
| EN/IEC 62040-1 |
| EN/IEC 62040-2 |
| FCC Part 15 Class A |
| IEC 60721-4-2 Level 2M2 |
| UL 1778 5th Edition |
