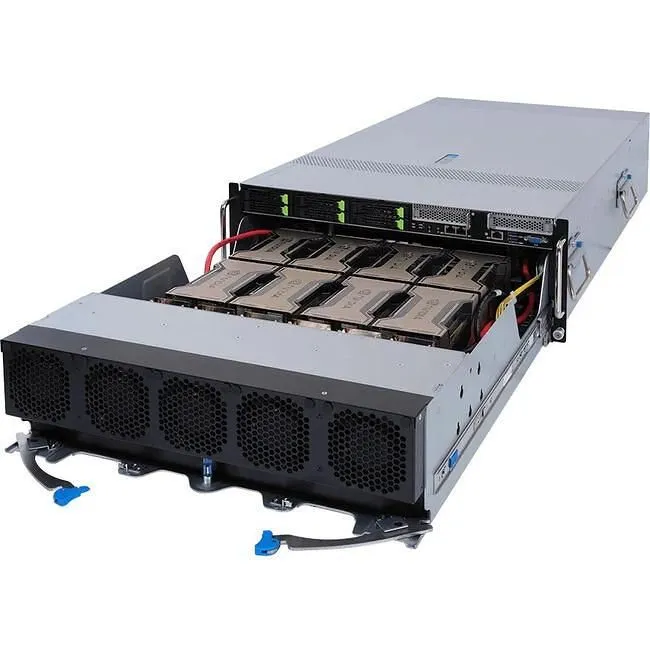

GIGABYTE G492-ZD2 NVIDIA HGX A100 8x GPU Barebone

Nothing Stacks Up To EPYC™|AMD EPYC™ 7003 Processors with AMD 3D V-Cache™

AMD EPYC 7003 Series Processors with AMD 3D V-Cache™ technology are raising the bar once more for breakthrough performance on targeted technical computing workloads like Electronic Design Automation, Computational Fluid Dynamics, and Finite Element Analysis software and solutions. Delivering breakthrough performance per core and performance per watt, the Zen 3 architecture maintains leadership in number of cores – up to 64, amount of L3 cache – 768MB, and 128 PCIe 4.0 lanes, while maintaining socket compatibility with existing 3rd Gen AMD EPYC platforms.

Architecture for Modern Data Centers | AMD EPYC™ 7003 Series Processors

GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.

• Up to 64 Cores
• 8 Channels of DDR4-3200
• Up to 4TB Memory Capacity
• 128 lanes PCIe 4.0
• 2-way SMT & Turbo Boost
• 4,6,8-channel Memory Interleave
• Synchronized Fabric and Memory Clock Speeds
• Secure Memory Encryption
• Secure Encrypted Virtualization

High Performance | Supports NVIDIA HGX™ A100 8-GPU

Massive datasets, exploding model sizes, and complex simulations require multiple GPUs with extremely fast interconnections. NVIDIA HGX A100 combines NVIDIA A100 Tensor Core GPUs with high-speed interconnects to form the world’s most powerful servers. With A100 80GB GPUs, a single HGX A100 has up to 1.3 terabytes (TB) of GPU memory and over 2 terabytes per second (TB/s) of memory bandwidth, delivering unprecedented acceleration.

Max Memory Speed Even at 2 DPC

With GIGABYTE unique solution, maximum memory speed is now supported, even when using 2 DIMMS per channel. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds.

Hardware Security | Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Power Efficiency |Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
