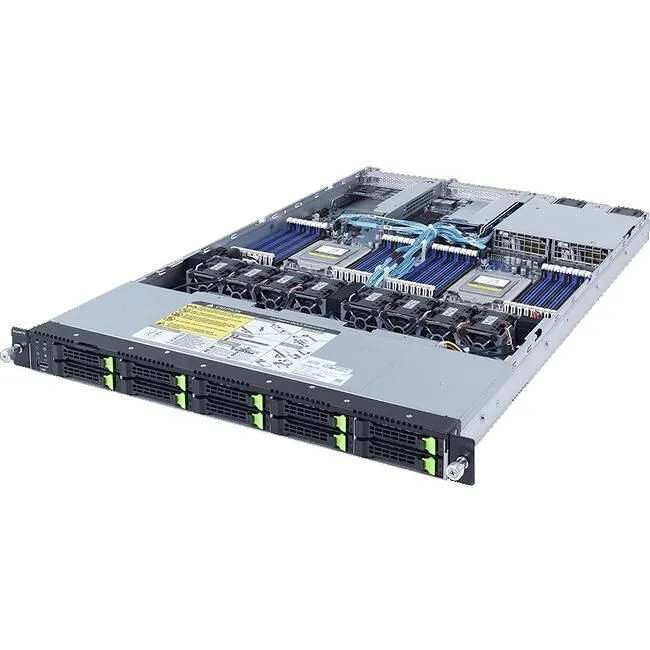

GIGABYTE R182-Z93 1U Rackmount Barebone – 2x Socket SP3

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on7nmadvanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to64 coreper CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture
• SupportingPCIe® 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0
• Embedded security protectionto help defend your CPU, applications, and data

PCIe® 4.0 Ready

AMD EPYC Rome is ready to support PCIe® 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMD’s Radeon MI50 GPGPU.

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

Get the Memory Performance Edge |3200Mhz Even at 2 DIMMS Per Channel

On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!

More M.2 Storage

GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.

OCP 3.0 Add-On Card Ready

GIGABYTE’s AMD EPYC Rome Server Platforms feature an onboard OCP 3.0 mezzanine slot for the next generation of PCI Gen 4.0 add on cards.

Compared to previous OCP 2.0 type cards, advantages of this new type include:

• Easier Serviceability:simply slot in / pull out the card without needing to open the server chassis; tool less design
• Larger Thermal Envelope:more space for heat sink provides an increased power budget for new & emerging capabilities
