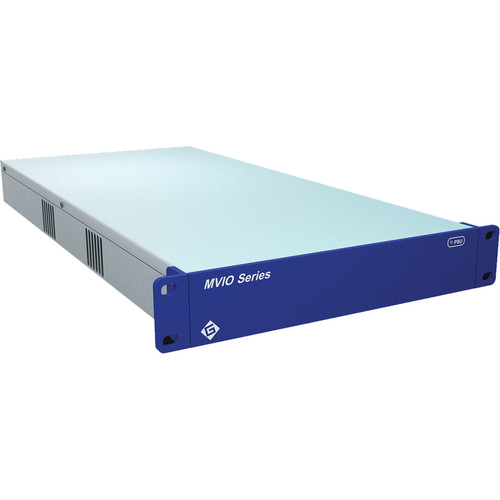

Gra-Vue MVIO XC HD-SD Cross Converter

Add to Wishlist

د.إ14,499.00

Add to Wishlist

Gra-Vue MVIO XCĀ Overview

TheĀ MVIO XC HD-SD Cross ConverterĀ fromĀ Gra-VueĀ allows you to convert signals between HD and SD resolutions. It features a self-adaptive SD/HD-SDI input and offers four HD/SD-SDI outputs and two SD/HD-SDI loop-through outputs connections. It supports digital signal input with embedded audio and can also amplify the output signal (optional). This cross converter supports AFD (Active Format Description). The module uses a de-interlacing filter for video processing. It also supports manual parameter adjustment with a dial switch when installed in a rack.

  • One SD/HD-SDI video signal self-adaptive input
  • Supports through, up, or down conversion
  • Features 4 HD/SD-SDI and two loop-through SD/HD-SDI outputs
  • BNC connectors
  • Offers support for both PAL and NTSC signal formats
  • Supports HD/SD-SDI signal with embedded audio
  • Supports AFD (Active Format Description)
  • De-interlaces filter on video
  • Hot swappable
SKU: MVIO XC Category: Tag:

Gra-Vue MVIO XCĀ Specs

Digital Video Input
Input Connector
1 x SD/HD-SDI, BNC
Impedance
75 Ī©
Format
SMPTE 259M-C; 270 Mb/s; 625i, 525i
SMPTE 29M; 1.485 Gb/s; 1080i, 720p
Return Loss
> 15 dB, 5 MHz up to 1.5 GHz
Maximum Cable Length
820′ (250 m) (Belden 1694A)
Digital Video Output
Output Connector
4 x HD/SD-SDI, BNC (Scaled output)
2 x HD/SD-SDI, BNC (Loop output)
Impedance
75 Ī©
Format
SMPTE 259M-C; 270 Mb/s; 625i, 525i
SMPTE 292M; 1.485 Gb/s; 1080i, 720p
Return Loss
> 15 dB, 5 MHz up to 1.5 GHz
Eye Pattern Characteristics
800 mV Ā± 10%
Jitter
< 0.2 UI
General
Power Consumption
60 W
Dimensions
8.6 x 16.9 x 1.7″ (22.0 x 43.0 x 4.4 cm)
