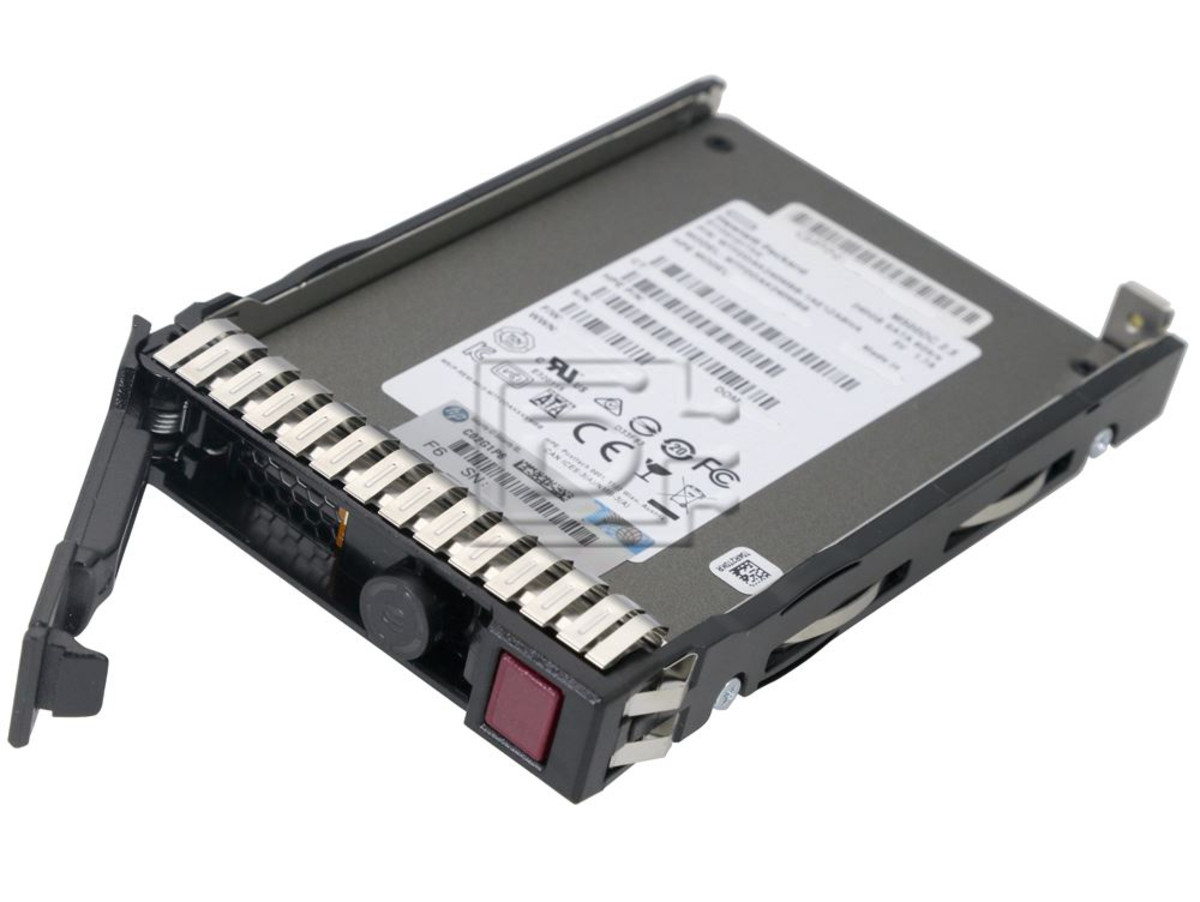

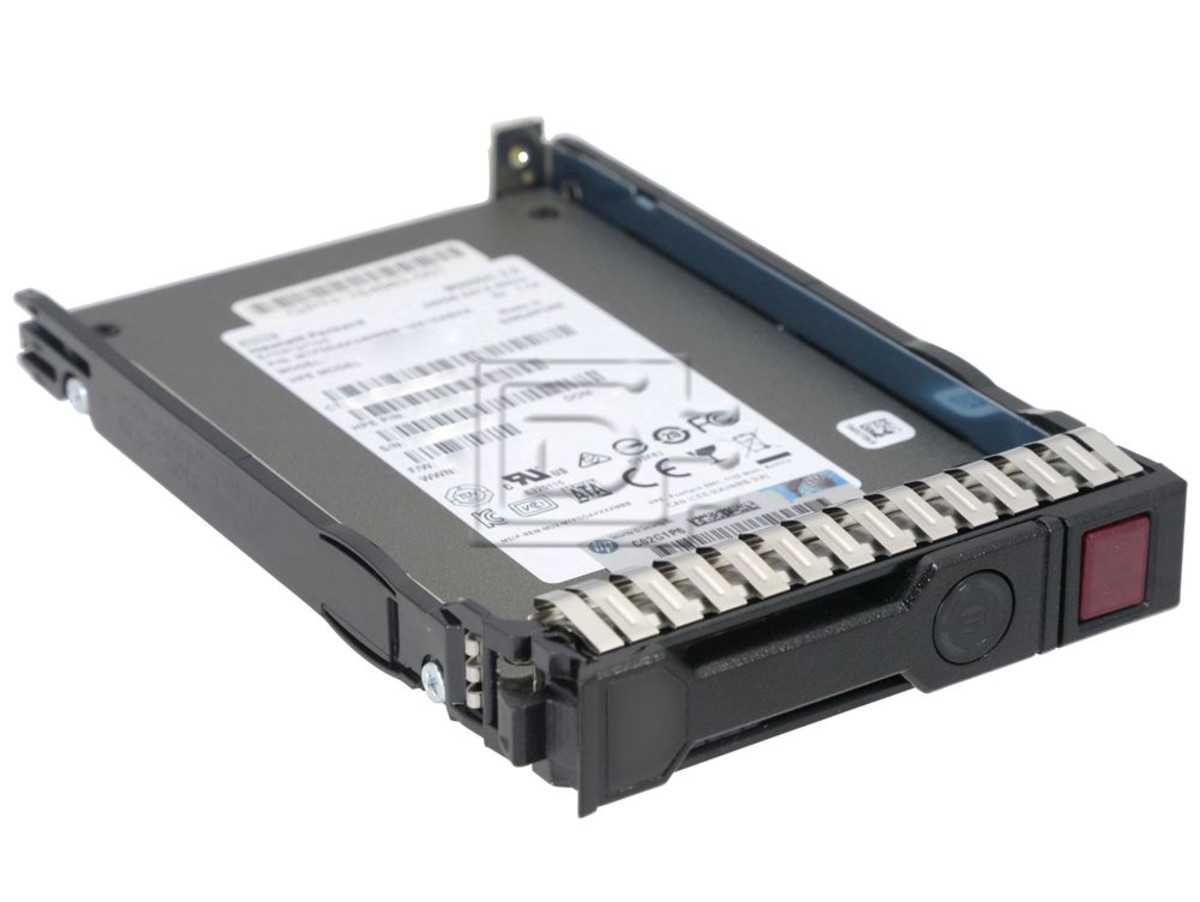

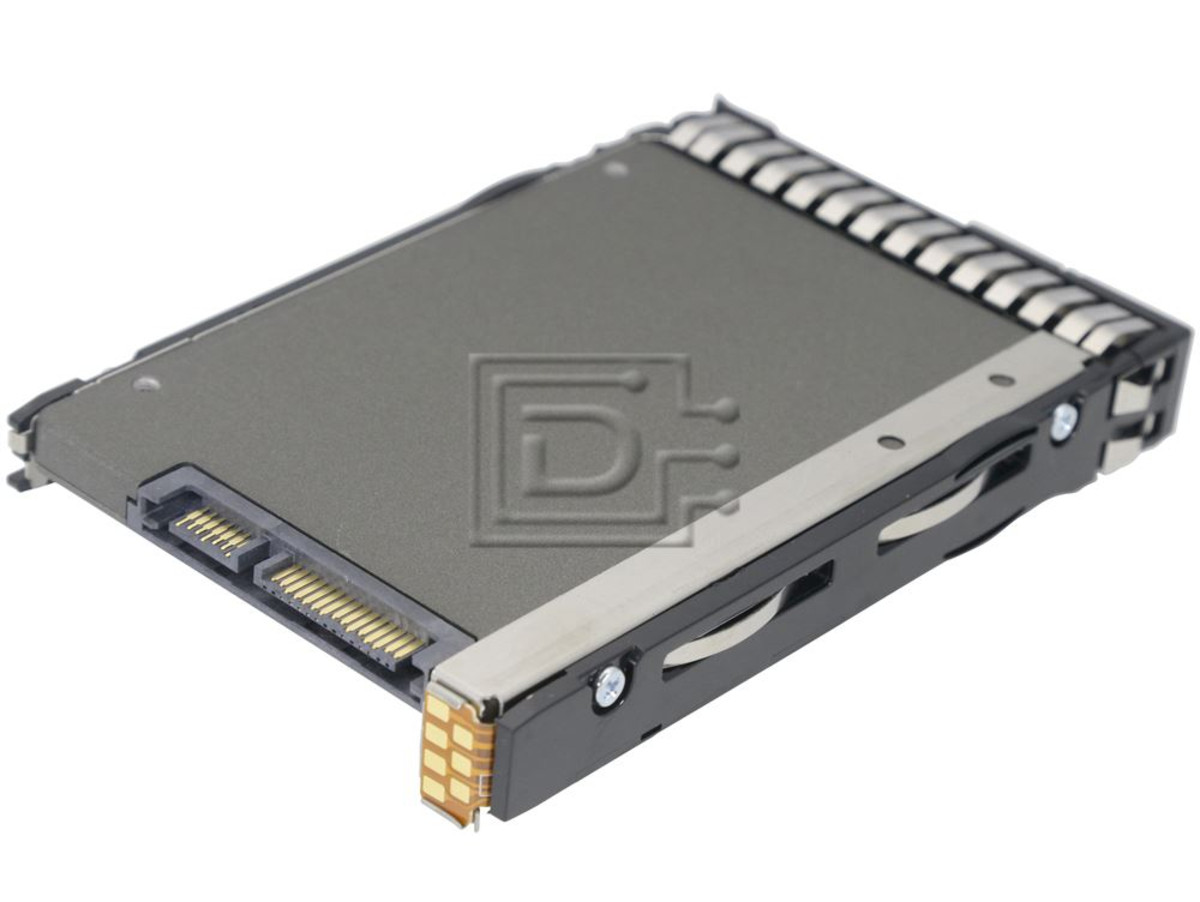

Hewlett Packard 717973-B21 800GB SATA Solid State Drive

Hewlett Packard 717973-B21 / 718139-001 800GB 2.5in SFF 6Gbps Value Endurance eMLC SATA SSD 651687-001 Kit for Gen8 / Gen9 systems – Brand New

Hewlett Packard 717973-B21 / 718139-001 800GB 2.5″ SFF / Small Form Factor 6.0 Gb/s Value Endurance SC Enterprise Value Multi Level Cell Serial Attached Technology Attachment Solid State Disk Drive 651687-001 Kit for Gen8 / Gen9 systems – Brand New

HP Spare Part Number: 718139-001

NOTE: This drive supports Gen8 servers and beyond.

HP Enterprise Solid State Drives
Excellent solid state storage performance for HP ProLiant servers

It is estimated that 2.5 exabytes (a billion gigabytes) of data are created every day. To tap the potential of Big Data, applications must read and write more data, faster than ever. HP Enterprise Solid State Drives (SSDs) help you access data faster by providing exceptional performance, extended endurance, and consistently low latency—all while using less power.

Peak Performance for random data applications
HP Enterprise SSDs are suited to enterprise environments with highly random data under a variety of write-workload applications. The SSDs provide significantly better random read and write I/O operations per second (IOPS) compared to 15K SAS HDDs. While sequential read and write throughput is also improved over 15K SAS HDDs, the greatest benefit is recognized in random data applications. As a result, these high-performance, low-latency, and low-power SSDs provide significant system benefits for applications that previously over-provisioned HDD capacity to achieve better performance.

Enterprise features for data center applications
HP Enterprise Solid State Drives have the key features you need in your data center—full data path error detection, surprise power loss protection, and SmartSSD Wear Gauge support. We enable the SmartSSD Wear Gauge through the HP Gen8 Smart Carrier. With the new SmartSSD Wear Gauge utility, HP Enterprise SSDs monitor the amount of data written and report when the device may be nearing its maximum supported lifetime.

Targeted at extreme operating environments or local storage, these drives provide higher I/O throughput, excellent latency, reduced power consumption, enhanced reliability, and faster reads and writes when compared to traditional rotating media. They remove the latency found in conventional rotating hard disk drives (HDDs) caused by seek time for each read operation, so they deliver high random read performance. Most of these SSDs are available as small form factor (SFF), large form factor (LFF), quick release carriers, or non-hot plug (NHP) for general use across the HP ProLiant Server portfolio. The drives are fully qualified and fit seamlessly into the existing HP server infrastructure.

With no moving parts, more reliability, and greater power savings than traditional rotating media drives, SSDs are finding new applications in the Big Data era.

Compatible with your server environment
HP SSDs are fully tested and qualified to enable compatibility with HP ProLiant and HP BladeSystem solutions. The HP Qualified Option designation places HP SSDs among the best of the best compared to products available on the open market. It is important to note that SSDs on the open market—even those with similar model numbers—may not have the same level of performance, endurance, and quality as HP Qualified Options. For example, the NAND or even the controller in non-qualified products may be different from an HP Qualified Option. HP firmware optimizes our qualified SSD performance, wear leveling, and over-provisioning.

The right SSD for every application
HP Enterprise SSDs are available in four categories based on their endurance: performance, mainstream, light, and value. The categories indicate the number of drive writes per day (DWPD) that you can expect from the drive. (DWPD is the maximum number of 4K host writes to the entire drive capacity of the SSD per day over a five-year period.)

HP Enterprise Performance Solid State Drives
HP Enterprise Performance 12G SAS SSDs provide high performance and endurance. They are best suited for mission-critical enterprise environments with workloads high in both reads and writes. SAS SSDs transfer data at full duplex allowing greater I/O bandwidth to alleviate bottlenecks. Additionally SAS uses SCSI commands for error recovery and error reporting, which have more functionality than the ATA command set used by serial ATA (SATA).

HP Enterprise Mainstream Solid State Drives
HP Enterprise Mainstream 12G SAS and 6G SATA SSDs are best suited for high I/O applications with workloads balanced between reads and writes. The SAS and SATA SSDs provide the workload-optimized performance required for demanding I/O-intensive applications. When paired with HP ProLiant servers, these SSDs help you meet the challenges of Big Data. They achieve twice the performance and endurance of previous HP SAS and SATA SSDs. The SATA SSDs come with a six gigabit per second (Gb/s) SATA hot-plug interface and are available in 800, 400, 200, and 100 gigabyte (GB) capacities. The SAS SSDs come with a 12 gigabit per second (Gb/s) SAS hot-plug interface and are available in 800, 400, and 200 gigabyte (GB) capacities.

HP Enterprise Value Solid State Drives
HP Enterprise Value 12G SAS and 6G SATA SSDs deliver enterprise features for a low price in HP ProLiant Gen8 server systems. This entry-level pricing is fueling rapid SSD adoption for read-intensive workloads because the cost per IOPS compares very favorably to 72 GB and 146 GB 15K HDDs. Available capacities for the HP Enterprise Value12G SAS SSDs are 800 GB and 1.6 TB. The 6G SATA SSDs are available in 240 GB, 480 GB, and 800 GB capacities. HP Enterprise Boot SSDs come in capacities of 80 GB and 120 GB and include an Endurance Manager feature to dynamically throttle writes, which maintains endurance for boot/ swap applications.

Key features and benefits

Higher performance and better latency
HP SSDs enable rapid reads and writes of transactional data. On an HDD, random reads require constant repositioning of the read/write head to seek the exact location of data on the platter before the data transfer can begin. However, SSDs have no moving parts or rotating platters that can cause latency problems, and that results in faster access to data. Therefore, with faster seek times, the drives achieve high IOPS, producing quicker data access and better latency.

The drives also pack the operating performance of several rotating HDDs into the same space as a single HDD, so you can get more performance out of your existing data center.

Lower power consumption
Steadily increasing storage requirements pose power and performance challenges to data centers. Solid state devices have a significantly better performance-to-power rating than traditional rotating HDDs. The lack of a motor greatly reduces an SSD’s power consumption, so the drives draw less energy—less than two watts idle and less than nine watts maximum— for SSDs.

Environmental ruggedness
The inherent environmental ruggedness of SSDs makes them well suited for extreme environments where traditional drives cannot operate. The drives can tolerate significantly higher operating shock and vibration levels compared to traditional rotating HDDs. In fact, they virtually eliminate rotational vibration problems.

High reliability
Reliability is important for any storage medium, and it is essential when considering a storage device that can be used in servers. HP Enterprise SSDs pass a rigorous HP ProLiant qualification of 2.4 million test hours.

Investment protection
HP Enterprise SSDs are a drop-in replacement for existing HDDs. They fit into existing HDD hot-plug bays and require no modification to operating system or infrastructure tools. The drives are recognized as standard SAS or SATA devices with no special changes in firmware or hardware. Although you cannot mix SSDs and HDDs in the same logical array, you can mix them within the system to provide a more effective use of both technologies.

Compatibility:
