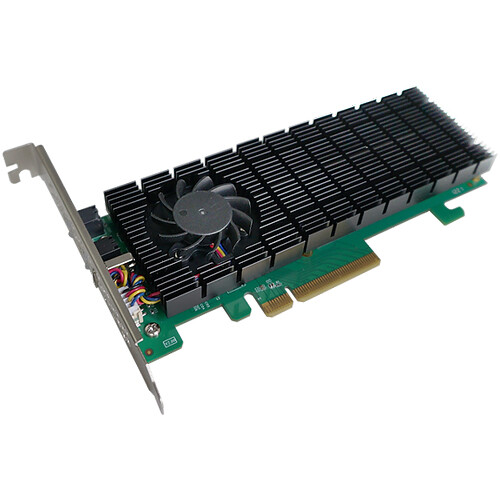

HighPoint SSD6202A NVMe RAID Controller

Add to Wishlist
Key Features
  • Dual M.2 PCIe SSD Interfaces
  • PCIe 3.0 x8 Bus Interface
  • Supports RAID 0, 1 & JBOD
  • Data Transfer Rate up to 8 GT/s
  • Supports 2242, 2260, 2280 M.2 Drives
  • Low-Profile Design
  • LED Indicator Lights
  • Integrated RAID Switch
  • Out-of-Band RAID Type-C Management Port
  • Supports Multiple Operating Systems

د.إ1,499.00

Add to Wishlist

HighPoint SSD6202A Overview

Streamline your production and expand upon your current storage capabilities with the robust HighPoint SSD6202A NVMe RAID Controller. This configurable internal card enables you to create a bootable platform, optimizing performance suitable for a wide range of environments from software development to audio engineering, and more.

The PCIe 3.0 x8 bus interface plugs into a wide range of motherboards and supports up to two M.2 PCIe NVMe solid-state drives. You get data transfer speeds up to 8 GT/s with support for RAID 0, 1, and JBOD configurations, making this ideal for production studios and video editing bays. LED indicators notify you of the status of your connected drives, alerting you of critical and suboptimal status, and simplifying troubleshooting processes in the event of a failure.

M.2 Size Support
The SSD6202A supports a variety of single- and double-sided 2242, 2260, and 2280 SSDs.
Out-of-Band Management
An Out-of-Band (OOB) USB Type-C management port enables quick field maintenance, allowing the RAID storage to be administered in a pre-OS environment as well as secure data center and hosting applications without interacting with user data.
Integrated RAID Switch
The controller features two hardware switches which can be used to configure one of three array modes including mirroring, striping, and JBOD configurations.
Operating System Support
HighPoint’s SSD6202A controller enables professional solution providers to seamlessly configure bootable, redundant RAID storage for a wide range of applications. Native In-Box Driver support is available for all major Virtualization platforms, such as VMware, Microsoft Hyper-V, and Promox, and all current versions and distributions of Windows, Linux, and FreeBSD operating systems. You are free to update the Kernel, apply patches, or download and install scheduled updates as needed, without fear of data loss or the need for complicated procedures.
SKU: SSD6202A Category:

HighPoint SSD6202A Specs

General
System Connection PCI Express 3.0 x8
M.2 2 x 2242, 2260, 2280 (PCIe 3.0 x4)
RAID RAID 0, 1, JBOD
OS Compatibility Windows 10
Windows 11
Windows Server 2022
Windows Server 2019
Windows Server 2016
Linux 3.10 or Later
Linux 5.17.5 or Later
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Environmental
Operating Temperature 37 to 87°F / 5 to 55°C
Storage Temperature -4 to 176°F / -20 to 80°C
Physical
Form Factor Low-Profile
Audible Alarm No
Status Monitoring LED Indicator
Dimensions 6.6 x 2.7 x 0.67″ / 16.8 x 6.9 x 1.7 cm
Weight 0.77 lb / 0.35 kg
Packaging Info
Package Weight 0.775 lb
Box Dimensions (LxWxH) 9 x 7.2 x 1.3″
