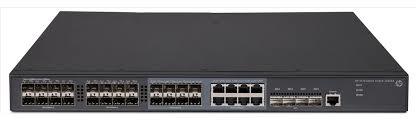

HP 5130-24G-SFP-4SFP+ EI Switch 24 Ports L3 Managed Stackable (JG933A)

The HP 5130 EI Switch Series are Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, IPv6 forwarding and provide four 10-Gigabit Ethernet extended interfaces.

Overview



The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.



Specifications

Compare Features
General Information
Product Name 5130-24G-SFP-4SFP+ Ei Switch
Manufacturer Part Number JG933A
Product Series 5130 EI
Product Model 5130-24G-SFP-4SFP+ EI
Packaged Quantity 1
Product Type Layer 3 Switch
Interfaces/Ports
Uplink Port Yes
Modular No
Port / Expansion Slot Details 8 x Gigabit Ethernet Network

16 x Gigabit Ethernet Expansion Slot

4 x 10 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots 28
Expansion Slot Type SFP

SFP+
Shared SFP Slot Yes
Number of SFP Slots 24
Number of SFP+ Slots 4
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet

10 Gigabit Ethernet
Network Technology 10/100/1000Base-T

1000Base-X

10GBase-X
Network & Communication
Layer Supported 3
Power Description
Power Source Power Supply
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 17.3″
Depth 14.2″
Other Information
Product Family 5130 EI
PoE (RJ-45) Port No
Token Ring Port No
LRE Port No
USB No
Number of Network (RJ-45) Ports 8
Management Port Yes
Bypass No
Memory Technology SDRAM
MTBF 456105.60 Hour
Management
  • Web-based Management
  • SNMP v1/2c/3
  • Command Line Interface (CLI)
  • RMON
  • DHCP
  • IMC
  • MIB
Flash Memory 128 MB
Input Voltage 120 V AC

230 V AC
Standard Memory 1 GB



SKU: JG933A Categories: , Tags: , ,
Weight 6.09 kg
