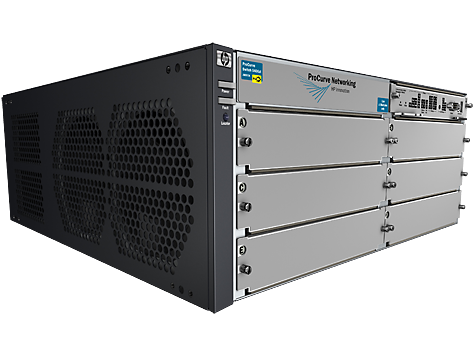

HP 5406 zl Switch with Premium Software(J9642A)

The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion.

With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

Features

Software-defined networking

OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths

Quality of Service (QoS)

Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis

Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers

Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues

Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.

Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

Management

Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network

RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops

Management simplicity: provides common software features and CLI implementation across all HP ProVision-based switches (including the zl and yl switches)

Connectivity

IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)

IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras

IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE- and PoE+-powered devices, such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras

Prestandard PoE support: detects and provides power to prestandard PoE devices; see the list of supported devices in the product FAQ at www.hp.com/networking

High-density port connectivity: provides up to 12 interface module slots and up to 288 wire-speed 10/100/1000 PoE-enabled ports or 96 10-GbE ports per system

Address table size	64000 entries
Form Factor	4U height
Input Frequency	50/60 Hz
Input Voltage	100 – 127 / 200 – 240 VAC
Management features	HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Manufacturer Warranty	Lifetime, advance replacement, next business day
Operating altitude (imperial)	up to 10000 ft.
Operating humidity range	15 to 95% @ 131°F (55°C) (noncondensing)
Operating temperature range	32 to 131°F
Ports	6 open module slots; Supports a maximum of 48 10GbE ports or 144 autosensing 10/100/1000 ports or 144 mini-GBICs, or a combination; Included
Power features	Chassis ships without power supplies. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Power supplies must be ordered separately. Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.
Product dimensions (W x D x H)	17.5 x 17.75 x 6.9 in
Storage humidity	15 to 95% @ 149°F (65°C) (noncondensing)
Storage temperature range (Celsius)	-40 to 70°C
Storage temperature range (Fahrenheit)	-40 to 158°F
Technical Notes	When using mini-GBICs with this product, mini-GBICs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C) are required.
Warranty	Lifetime, advance replacement, next business day
Weight ( Imperial )	23.55 lb
Weight ( Metric )	10.68 kg
