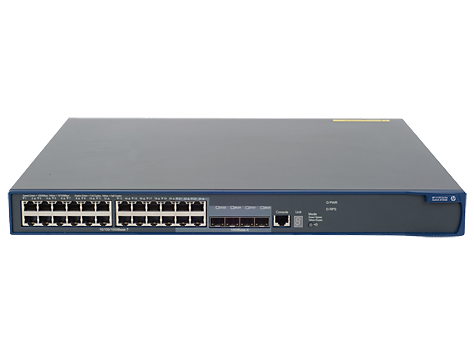

HP A5120-24G EI Switch

The HP 5120 EI Switch Series delivers flexibility, scalability and low TCO with a robust feature set supporting stacking, static layer 3 routing, PoE+, ACLs and IPv6. HP Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity.

The HP 5120 EI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your network.

Features

Scalable and Secure Access Layer Switches

The HP 5120 EI Switch Series supports stacking, static layer 3 routing, PoE+, ACLs and IPv6. HP Intelligent Resilient Framework (IRF) technology creates a virtual fabric which increases network resilience, performance, and availability while reducing operational complexity.

HP 4 chassis IRF for simpler, flatter, more agile networks and flexible deployment with longer-distance stacking between closets up to 70 km distance.

Modular 10GbE uplinks (CX4, SFP+ and 10GBASE-T), stacking and power supplies allow for future upgradability.

External redundant power supply for increased reliability.

Limited Lifetime Warranty 2.0 with 3 years 24×7 phone support and no software licensing required.

Powerful Quality of Service (QoS)

The HP 5120 EI Switch Series supports advanced classifier-based QoS which classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.

Traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.

Comprehensive Security Control

The HP 5120 EI Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.

Access control lists (ACLs) provide IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL.

Source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout deliver enhanced security.

Single View of the Network

The HP 5120 EI Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Dimensions & Weight
	Depth:		11.8 in
	Height:		1.7 in
	Weight:		9.9 lbs
	Width:		17.3 in
	Environmental Parameters
	Humidity Range Operating:		10 – 90% (non-condensing)
	Max Operating Temperature:		113 °F
	Min Operating Temperature:		32 °F
	Flash Memory
	Installed Size:		16 MB
	Type:		Flash
	Header
	Brand:		HP
	Compatibility:		PC
	Country Kits:		United States
	Localization:		English
	Manufacturer:		ProCurve Networking
	Model:		5120-24G EI Switch
	Packaged Quantity:		1
	Product Line:		HP
	Interface Provided
	Connector Type:		RJ-45
	Qty:		24
	Type:		1000Base-T
	Comments:		Management
	Qty:		1
	Type:		Console
	Connector Type:		SFP (mini-GBIC)
	Qty:		4
	Miscellaneous
	Authentication Method:		RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+
	Compliant Standards:		CISPR 22 Class A , CSA C22.2 No. 60950-1 , EN 60825-1 , FCC Part 15 A , ICES-003 Class A , RoHS , WEEE
	Encryption Algorithm:		SSL
	Height (Rack Units):		1
	Rack Mounting Kit:		Included
	Networking
	Advanced Switching:		Layer 4
	Cabling Type:		Ethernet 1000Base-T , Ethernet 100Base-TX , Ethernet 10Base-T
	Communication Mode:		Full-duplex
	Compliant Standards:		IEEE 802.1ab (LLDP) , IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3i , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
	Connectivity Technology:		Wired
	Empty Slots:		4 x shared SFP (mini-GBIC)
	Features:		Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , Committed Access Rate (CAR) , Device Link Detection Protocol (DLDP) support , DHCP support , Endpoint Admission Defense (EAD) , Flow control , IGMP snooping , Jumbo Frames support , Layer 2 switching , Layer 3 switching , MLD snooping , Quality of Service (QoS) , Routing , sFlow , STP Root Guard , VLAN support
	Form Factor:		Rack-mountable
	MAC Address Table Size:		16K entries
	Manageable:		Yes
	Ports Qty:		24
	Remote Management Protocol:		CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet
	Routing Protocol:		Static IPv4 routing , Static IPv6 routing
	Stackable:		Stackable
	Subcategory:		Network hubs and switches
	Subtype:		Gigabit Ethernet
	Switching Protocol:		Ethernet
	Type:		Switch
	Ports
	Qty:		24
	Type:		10/100/1000
	Ports (2nd)
	Qty:		4
	Type:		Shared SFP
	Power Device
	Frequency Required:		50/60 Hz
	Nominal Voltage:		AC 120/230 V
	Type:		Internal power supply
	RAM
	Installed Size:		128 MB
	Technology:		SDRAM
	Service
	Support Details Full Contract Period:		Lifetime
	Support Details Type:		Limited warranty
