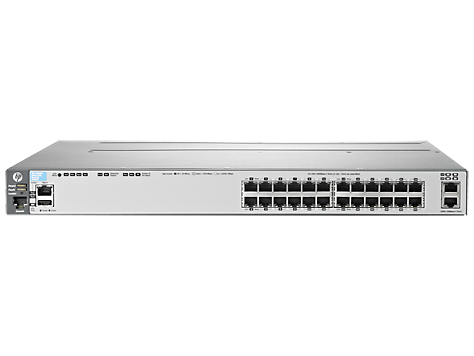

HP 3800-24G-2XG Switch(J9585A)

The HP 3800 Switch Series provides performance, resiliency and flexibility, and ease of use for enterprise edge, and SMB and branch office deployments. Based on a powerful HP Networking ASIC, the switch has low latency, increased packet buffering, and adaptive power consumption.

Mesh stacking technology delivers modular chassis-like resiliency in stackable1U form factor. The HP 3800 Switch Series has a robust Layer 3 feature set with IPv6, IPv4 BGP, policy based routing, and OSPF, can be seamlessly managed with HP Intelligent Management Center (IMC) and is SDN ready with OpenFlow support.

Features

Performance, Resiliency and SDN Ready for the Campus Edge

The HP 3800 Switch Series provides performance, resiliency and flexibility, and ease of use for enterprise edge, and SMB and branch office deployments.

Full Layer 3 switch series for flexible deployment with 24 or 48 Gigabit Ethernet ports plus convenient built-in 10GbE uplinks (10GBASE-T or SFP+), PoE+, Energy Efficient Ethernet, and hot swappable redundant power supplies.

Mesh stacking technology delivers modular chassis-like resiliency in stackable1U form factor with optional stacking modules.

License free software with advanced Layer 2 and 3 feature set including IPv4 BGP, policy based routing, and IPv4/IPv6 OSPF and robust QoS.

Software-defined Network (SDN) ready with OpenFlow 1.3 support for future proofing your network.

Mesh Stacking and Power at the Edge

The HP 3800 Switch Series uses a powerful HP Networking ASIC providing very low latency, increased packet buffering, and adaptive power consumption.The HP 3800 Switch Series uses a powerful HP Networking ASIC providing very low latency, increased packet buffering, and adaptive power consumption.

Meshed stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency.

Up to ten 3800 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.

Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.

Resiliency and High Availability

The HP 3800 Switch Series supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.

Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.

Dual hot-swappable power supplies provide uninterrupted power and allow swapping of modules on the fly to reduce impact on the network availability. Provides up to 1080W PoE+ power.

Robust Security and Quality of Service

The HP 3800 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.

Flexible authentication options include Local MAC Authentication, 802.1X, MAC and Web Authentication modes, delivering greater security and policy-driven application authentication.

Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities.

Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH to increase security and control change management access.

The HP 3800 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

Environmental Parameters
	Humidity Range Operating:		15 – 95% (non-condensing)
	Max Operating Temperature:		131 °F
	Max Storage Temperature:		158 °F
	Min Operating Temperature:		32 °F
	Min Storage Temperature:		-40 °F
	Header
	Brand:		HP
	Compatibility:		PC
	Country Kits:		United States
	Localization:		English
	Manufacturer:		ProCurve Networking
	Model:		3800-24G-2XG Switch
	Packaged Quantity:		1
	Product Line:		HP
	Interface Provided
	Connector Type:		RJ-45
	Interface:		Ethernet 10Base-T/100Base-TX/1000Base-T
	Qty:		24
	Interface:		10Gb Ethernet
	Qty:		2
	Comments:		Management
	Connector Type:		RJ-45
	Qty:		1
	Type:		Console
	Miscellaneous
	Authentication Method:		RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+
	Compliant Standards:		CISPR 24 , CSA 22.2 No. 60950 , EN 60825 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , FCC Class A certified , IEC 60950-1 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , RoHS , UL 60950 , VCCI Class A ITE
	Encryption Algorithm:		SSL
	Height (Rack Units):		1
	Rack Mounting Kit:		Included
	Networking
	Advanced Switching:		Layer 3
	Compliant Standards:		IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1v , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3an , IEEE 802.3u , IEEE 802.3x
	Features:		Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , DHCP support , DiffServ support , Fan tray , Flow control , IGMP snooping , IPv6 support , Layer 2 switching , MAC address lockout , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , sFlow , STP Root Guard , Uni-Directional Link Detection (UDLD) , Virtual Route Redundancy Protocol (VRRP) support , VLAN support
	Form Factor:		Rack-mountable
	Jumbo Frame Support:		Yes
	MAC Address Table Size:		65K entries
	Manageable:		Yes
	Ports Qty:		24
	Remote Management Protocol:		CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet
	Routing Protocol:		IGMP , MLD , MLDv2 , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , RIP-1 , RIP-2 , Static IP routing , VRRP
	Stackable:		Stackable
	Subcategory:		Network hubs and switches
	Subtype:		Gigabit Ethernet
	Type:		Switch
	Power Device
	Frequency Required:		50/60 Hz
	Hot-Plug:		Hot-plug
	Installed Qty:		1
	Max Supported Qty:		2
	Nominal Voltage:		AC 120/230 V
	Power Redundancy:		Optional
	Power Redundancy Scheme:		1+1 (with optional power supply)
	Type:		Internal power supply
	Processor
	Installed Qty:		2
	Service
	Support Details Full Contract Period:		Lifetime
	Support Details Service Included:		Advance parts replacement
	Support Details Type:		Limited warranty
	Slot Provided
	Free Qty:		1
	Total Qty:		1
	Type:		Stacking Module slot
	Dimensions & Weight
	Depth:		18.4 in
	Height:		1.7 in
	Weight:		15.9 lbs
	Width:		17.4 in
	Service & Support
	Type:		Limited lifetime warranty
	Flash Memory
	Installed Size:		4 GB
	Performance
	Type:		Throughput
	Value:		65.4 Mpps
	Type:		Switching capacity
	Value:		88 Gbps
	Ports
	Qty:		24
	Type:		10/100/1000
	Ports (2nd)
	Qty:		2
	Type:		10Gb Ethernet
	RAM
	Installed Size:		2 GB
	Technology:		SDRAM
