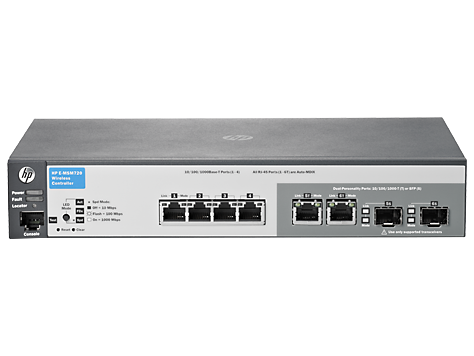

HP MSM720 Access Controller (WW)(J9693A)

The 802.11ac-ready HP MSM Controller Series works in unison with the HP 425 and MSM 802.11n access points to deliver a cost effective high-performance networking solution for the mid-size enterprise campus. The enhanced architecture supports next generation standards, RF optimization and flexible distribution models for unparalleled performance, reliability and ease of deployment.

Features

Optimized Design and Performance

The HP Multiservice Mobility Controller Series supports both centralized and distributed forwarding options to reduce latency, optimize application performance and increase WLAN scalability.

Optimizes wireless coverage and the user experience with Wi-Fi Clear Connect RF optimization, automatic interference mitigation and dynamic client load balancing to increase connectivity.

Offers flexible upgrade licensing to scale the network as business requirements change.

Comes in appliance or blade form factors and support for 802.11a/b/g/n clients and is 802.11ac ready.

Simplicity and Low Total Cost of Ownership (TCO)

The HP Multiservice Mobility Controller Series simplifies configuration and deployment of WLAN services with automated workflows.

Reduces complexity by streamlining configuration, management and troubleshooting of multivendor wired/WLAN networks with HP single management tool.

Abstract



Working in unison with HP MSM access points, the HP MSM Controller Series delivers high-performance networking solutions. The enhanced architecture scales to 802.11n without requiring controller replacement. Robust identity- and roles-based user account profiles, as well as Virtual Service Communities (VSCs) with independently configurable Quality of Service (QoS), authentication, encryption, and VLAN support, deliver intelligence to the network edge. Scalable from small to larger deployments, the MSM wireless controllers support a fast-roaming capability. Wireless security is comprehensive with support for internal and external authentication, authorization, and accounting (AAA) servers, built-in stateful firewall, per-user VLAN mapping, and authentication.

Product Specifications    Compare with other products



Product Name	HP MSM720 Access Controller (WW)
Product Type	Wireless LAN Controller
Ethernet Port	Yes
Fast Ethernet Port	Yes
Gigabit Ethernet Port	Yes
10Gigabit Ethernet Port	No
ISM Band	No
UNII Band	No
Number of Network (RJ-45) Ports	6
Height	1.8″
Width	6.3″
Depth	10″
Product Series	MSM700
Form Factor	Rack-mountable Wall Mountable
Product Model	MSM720
USB	No
VGA	No
Serial Port	No
Network (RJ-11)	No
Powerline	No
Management Port	Yes
PoE (RJ-45) Port	No
Features	Quality of Service (QoS)
Management	VLAN DHCP SNMP v2c/v3 MIB/II Web Based Management Command Line Interface
Wireless Security	AAA Firewall NAT PAT RADIUS SSL VPN
Expansion Slots	2 x SFP (mini-GBIC)
Input Voltage	110 V AC 220 V AC
Power Source	Power Supply
Product Family	MSM700

Lowers total cost of ownership (TCO) with Industry leading warranties.

Business Continuity

The HP Multiservice Mobility Controller Series delivers seamless failover of mobility services through virtual controller redundancy.

Offers comprehensive security and threat protection with integrated intrusion detection system (IDS), support for internal and external authentication, authorization and accounting (AAA) servers and a stateful built-in firewall.

Supports comprehensive identity management, endpoint security and centralized policy enforcement for a converged wired/wireless infrastructure.
