QK754B Overview

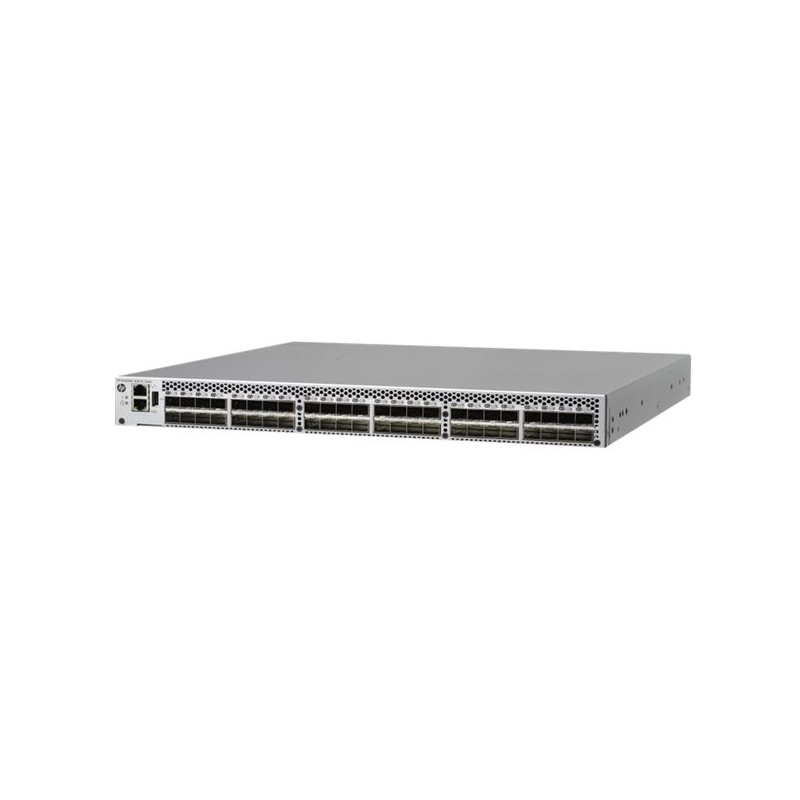

HP SN6000B 16Gb 48/24 Pwr Pck+ FC Switch
QK754B Specification
QK754B Specification |
|
| General | |
| Device Type | Switch – 24 ports – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 24 x 16Gb Fibre Channel SFP+ |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, SMI-S, SSH, CLI |
| Encryption Algorithm | 256-bit AES-GCM |
| Features | Syslog support |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Base-T/100Base-TX – RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x USB Type A management ¦ 48 x SFP+ |
| Power | |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS |
| Manufacturer Selling Program | HPE Complete |
| Software / System Requirements | |
| Software Included | Brocade Advanced Zoning, Brocade Fabric Watch, Brocade Advanced Performance Monitoring, Brocade Extended Fabrics, Brocade ISL Trunking, Brocade Advanced Web Tools, Brocade Adaptive Networking, HP SAN Network Advisor Professional, HP Server Application Optimization, Brocade EZ Switch |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 17.4 in |
| Height | 1.7 in |
| Weight | 20.19 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
