HPE 1620-24G – switch – 24 ports – managed – rack-mountable JG913A#ABA

Availability:

10 in stock


AED899.00

10 in stock

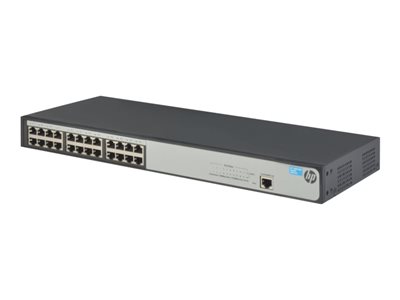

HP JG913A HPE Office Connect 1620-24G Switch



The HPE 1620 Gigabit Switch Series is an entry-level, smart-managed switch ideal for small businesses looking for basic network features to enhance network performance but without the added complexity and cost of more advanced switches. Part of the HPE OfficeConnect portfolio, these switches are plug-and-play out of the box. An intuitive Web GUI provides ease of access to fine tune switch operation, if necessary. The HPE 1620 Gigabit Switch Series consists of 8-, 24-, and 48-port models that can be rack mounted. Customizable features include VLANs, IEEE802.1p QoS and IGPM Snooping.



Simple Deployment and Management

  • The HPE 1620 Switch Series is an entry-level, smart-managed switch ideal for small businesses that deliver plug-n-play out of the box. No device configurations are needed to get up and running at gigabit speeds.
  • An intuitive Web interface provides access to fine tune network performance, if necessary.
  • Auto-speed negotiation automatically selects individual port speed depending on client capabilities without the need for manual intervention.
  • All models come with internal power supplies removing the need to manage external power adapters and can be rack mounted with the included hardware. The 8-port model can be deployed on the desktop, on the wall or in the rack.



Enhance Network Performance

  • The HPE 1620 Switch Series includes VLAN support to provide network traffic and resource segregation for additional security and better network performance.
  • IEEE 802.1p QoS and IGMP Snooping prioritizes traffic and reduces unnecessary broadcast of multicast traffic for efficient network utilization.



Overview

The HPE 1620 Gigabit Switch Series is an entry-level, smart-managed switch ideal for small businesses looking for basic network features to enhance network performance but without the added complexity and cost of more advanced switches. Part of the HP OfficeConnect portfolio, these switches are plug-and-play out of the box. An intuitive Web GUI provides ease of access to fine tune switch operation, if necessary. The HPE 1620 Gigabit Switch Series consists of 8-, 24-, and 48-port models that can be rack mounted. Customizable features include VLANs, IEEE802.1p QoS and IGPM Snooping.

Simple Deployment and Management

The HPE 1620 Switch Series is an entry-level, smart-managed switch ideal for small businesses that deliver plug-n-play out of the box. No device configurations are needed to get up and running at gigabit speeds.

An intuitive Web interface provides access to fine tune network performance, if necessary.

Auto-speed negotiation automatically selects individual port speed depending on client capabilities without the need for manual intervention.

All models come with internal power supplies removing the need to manage external power adapters and can be rack mounted with the included hardware. The 8-port model can be deployed on the desktop, on the wall or in the rack.

Enhance Network Performance

The HPE 1620 Switch Series includes VLAN support to provide network traffic and resource segregation for additional security and better network performance.

IEEE 802.1p QoS and IGMP Snooping prioritizes traffic and reduces unnecessary broadcast of multicast traffic for efficient network utilization.

Peace of Mind

The HPE 1620 Switch Series has a Limited Lifetime Warranty.

The switch series uses Energy Efficient Ethernet for lower power consumption.

SKU: JG913A#ABA Category: Tags: , ,

Specifications

General
Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000
Performance Throughput (64-byte packet size): up to 35.7 MppsĀ Routing/switching capacity: 48 Gbps
MAC Address Table Size 8192 entries
Jumbo Frame Support 10KB
Routing Protocol IGMPv2, IGMP, IGMPv3
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, CLI
Features Flow control, full duplex capability, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Quality of Service (QoS), Jumbo Frames support, fanless, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, dual firmware images, NTP time synchronization, Loopback, DiffServ Code Point (DSCP) support, cable test
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az
Processor 1 x MIPS: 500 MHz
RAM 128 MB SDRAM
Flash Memory 32 MB
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45Ā 1 x console RJ-45 management
Power
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 15 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 123.46 years
Compliant Standards CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, VCCI Class A, CSA 22.2 No. 60950-1
Localization English / United States
Dimensions & Weight
Width 17.3 in
Depth 6.8 in
Height 1.7 in
Weight 4.85 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95% (non-condensing)
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az
Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable 1U
Features Flow control, full duplex capability, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Quality of Service (QoS), Jumbo Frames support, fanless, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, dual firmware images, NTP time synchronization, Loopback, DiffServ Code Point (DSCP) support, cable test
Flash Memory 32 MB
Jumbo Frame Support 10KB
MAC Address Table Size 8192 entries
Performance Throughput (64-byte packet size): up to 35.7 Mpps ¦ Routing/switching capacity: 48 Gbps
Ports 24 x 10/100/1000
Processor 1 x MIPS: 500 MHz
RAM 128 MB SDRAM
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, CLI
Routing Protocol IGMPv2, IGMP, IGMPv3
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 6.8 in
Height 1.7 in
Weight 4.85 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day
Miscellaneous
Compliant Standards CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, VCCI Class A, CSA 22.2 No. 60950-1
Localization English / United States
MTBF 123.46 years
Rack Mounting Kit Included
Power
Power Consumption Operational 15 Watt
Voltage Required AC 120/230 V (50/60 Hz)
