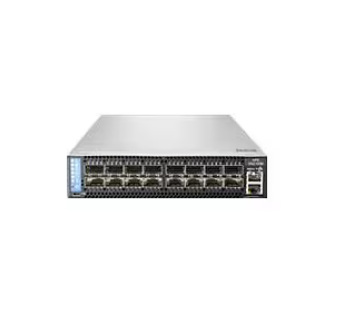

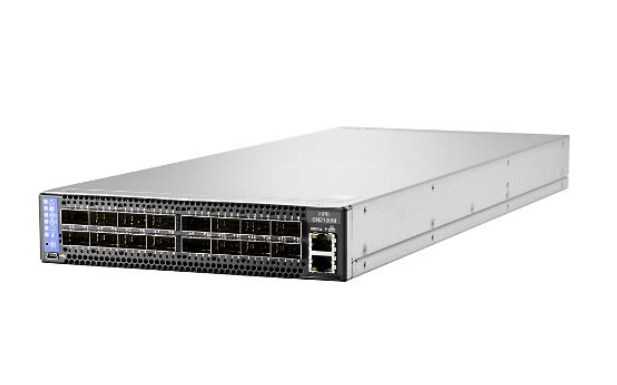

HPE StoreFabric SN2100M 100GbE 8 QSFP28 Half Width – switch – 8 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • managed
  • rack-mountable
  • L3
  • 8 x 100 Gigabit QSFP28
  • for HPE J2000; Apollo 4200, 4200 Gen10

AED69,099.00

Add to Wishlist

Know your gear

How can you provide fast, reliable, and cost-effective connectivity in the data center with predictable performance and investment protection? HPE M-series SN2100M Ethernet switches are ideal for modern server and storage networks. Supporting port speeds of 1, 10, 25, 40, 50, and 100 GbE, delivering predictable performance and zero packet loss at line-rate across each port and packet size. Enhanced for storage combined with efficient design, it provides enterprise-level performance with attractive economics and outstanding ROI. Networks built on HPE SN2100M are fast, reliable, and scalable while also being affordable and easy to manage. It supports primary and secondary storage, providing consistently fair, fast, low-latency connectivity even under heavy workloads or a mix of different port speeds. This makes them ideal for storage, hyper-converged, financial services, and media and entertainment deployments.
SKU: Q2F24A Category: Tag:
Category Specification
Overview
Brand HPE
Product Line HPE StoreFabric
Model SN2100M 100GbE 8 QSFP28 Half Width
Manufacturer Hewlett-Packard
Memory
Flash Memory Installed 16 megabyte
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards X.509
Features 16MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Bidirectional Forwarding Detection (BFD), BPDU Filter, Data Center Bridging Exchange (DCBX) support, DHCP relay, Explicit Congestion Notification (ECN), IGMP snooping, IPv4 support, IPv6 support, LLDP support, Loop Guard, Multi Chassis Link Aggregation Group (MLAG), Multiple Spanning Tree Protocol (MSTP) support, Open Shortest Path First (OSPF), OpenFlow support, Port mirroring, Priority-Based Flow Control (PFC), Protocol Independent Multicast (PIM), Protocol-based VLANs support, Quality of Service (QoS), Random early detection (RED), Rapid Spanning Tree Protocol (RSTP) support, RDMA over Converged Ethernet (RoCE), Root Guard, sFlow v5, Store and forward, Storm Control, STP BPDU Guard, Top-of-Rack (ToR), Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Voice VLAN
Form Factor (Hubs & Switches) Rack-mountable
Manageable Yes
Ports 8
Product Type Switch
Remote Management CLI, SNMP, SSH, Telnet
Status Indicators Fan, Status, System
Subcategory Fibre Channel and SAN
Switching Type 100 Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x management RJ-45, 1 x USB mini-USB, 8 x 100Gbit LAN QSFP28, 8 x 100Gbit LAN QSFP28 additional port option
Port Quantity 8
Port Type 100 Gigabit QSFP28
Power
Frequency 50/60 hertz
Power Consumption Operational 94 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 10 – 85% (non-condensing)
Product Information
Authentication Method LDAP, RADIUS, TACACS+
Device Type Internal power supply
Packaged Quantity 1
Performance Cut-through latency: 300 ns, Processing rate: 4.76 Bpps, Switching capacity: 3.2 Tbps
Rack Mounting Kit Optional
Included Items
Cables 1 x serial cable
Included Accessories 2 power cords (C13 to C14)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 9.99 lbs
Width 7.9 inch
Depth 20 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS CISPR32:2015 Class A, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EMC, EN 55024:2010, EN 55032:2012 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11:2004, EN 61000-4-2:2002, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2014, FCC CFR47 Part 15 B 2017 Class A, FIPS 140-2, ICES-003:2016 issue 6 Class A, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, KN22:2009 Class A, KN24:2009, LV, TR CU 004/2011, TR CU 020/2011, UL 60950-1:2007, VCCI V-3/2015.04 Class A, X.509
