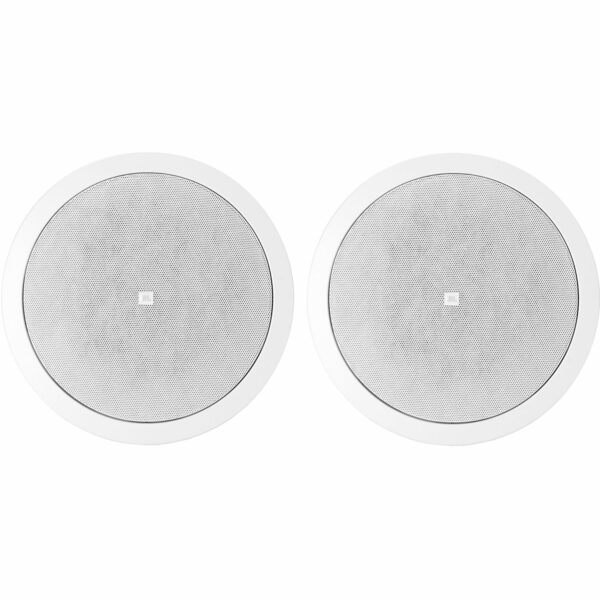

JBL Control 26CT – Ceiling Speaker with Transformer (Pair)

Add to Wishlist

JBL Control 26C Overview

Capable of high-power handling and low distortion, JBL’s ceiling mounted Control 26CT is ideal for upscale installs. Its performance ability ensures balanced sound throughout the listening area. The unit includes a multitap transformer for 70/100V systems.

The Control 26CT offers a very broad 110° area of coverage and is designed for longer, cooler operation, which allows for greater long-term power handling. A simpler and less-expensive install is achieved due to the coverage capability of the Control 26CT.

150 Watts power capability
Multi-tap transformer for 70/100V systems
75 Hz to 20 kHz frequency range (-10 dB)
Coaxially mounted 6.5″ woofer with butyl rubber surround and 3/4″ titanium coated diffraction-loaded tweeter
High power, wide-frequency response and low distortion for high sound level capability
Wide coverage allows for fewer speakers, reducing the cost of the installed sound system without sacrificing performance

AED1,699.00

Add to Wishlist
Key Features
  • High-Output, 2-Way Coaxial Speaker
  • 70/100V Multi-Tap Transformer
  • 6.5″ Woofer
  • 19mm Titanium-Coated Tweeter
  • 150W Continuous Program Power
  • 75 Hz to 20 kHz Frequency Response
  • Backing Plate, Paint Shield, Tile Rails
SKU: CONTROL 26CT Category: Tag:

JBL Control 26C Specs

Key Specs
Active/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
150 W Program
75 W RMS
Constant Voltage / Transformer Taps
100 V:
60 / 30 / 15 W
70 V:
60 / 30 / 15 / 7.5 W
HF Driver
0.75″ / 19 mm Titanium-Coated Polyester
LF Driver
6.5″ / 165 mm Polypropylene-Coated
Color
White
Speaker
Active/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
150 W Program
75 W RMS
Constant Voltage / Transformer Taps
100 V:
60 / 30 / 15 W
70 V:
60 / 30 / 15 / 7.5 W
Drivers
HF Driver
0.75″ / 19 mm Titanium-Coated Polyester
LF Driver
6.5″ / 165 mm Polypropylene-Coated
LF Voice Coil
1″ / 25.4 mm
Performance
Frequency Response
75 Hz to 20 kHz
Maximum SPL
107 dB
Sensitivity
89 dB
Coverage Angle
110° (Conical)
Connectivity
Inputs/Outputs
2x Screw Terminal Input
2x Screw Terminal Thru/Output
Maximum Wire Gauge
12 AWG / 2.5 mm
Environmental
Certifications
UL
Environmental Protection
No
Physical
Color
White
Cutout Depth
7.5″ / 190 mm
Construction Material
Medium-Impact Polystyrene, Steel
Dimensions
9.9 x 8.3″ / 251.5 x 210.8 mm
Weight
10 lb / 4.2 kg (Each Speaker)
Packaging Info
Package Weight
20.55 lb
Box Dimensions (LxWxH)
26.5 x 12 x 11.5″
