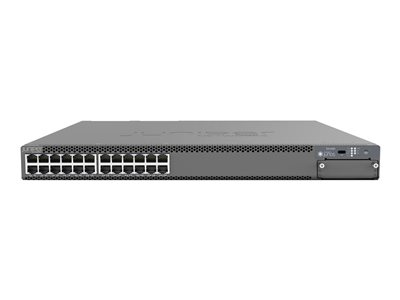

Juniper Networks EX Series EX4400-24T – switch – 24 ports – managed – rack-mountable – E-Rate program
Juniper Networks EX Series EX4400-24T – Switch – L3 – managed – 24 x 10/100/1000 + 2 x 100 Gigabit (uplink / stacking) – front to back airflow – rack-mountable – E-Rate program
AED23,099.00
The EX4400 line of Ethernet access switches offer secure, cloud-ready access for enterprise campus, branch, and data center networks for the AI era and optimized for the cloud. The platforms boost network performance and visibility, meeting the security demands of today as well as for networks of the next decade. As part of the underlying infrastructure for Juniper Mist Wired Assurance, the EX4400 is purpose-built for, and managed by, the cloud. The switch leverages Mist AI to simplify operations and provide better visibility into the experience of connected devices, delivering a refreshing, user experience-first approach to access layer switching.
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x 100 Gigabit (uplink / stacking) |
| Performance | Unidirectional switching capacity: 324 Gbps |
| Bidirectional switching capacity: 648 Gbps |
| Throughput: 482 Mpps |
| Capacity | IPv6 neighbor discovery: 4096 |
| VSTP instances: 510 |
| MST instances: 64 |
| Maximum member ports per LAG: 16 |
| ARP entries: 24000 |
| IPv4 prefixes (Unicast): 130048 |
| IPv4 hosts (Unicast): 81000 |
| IPv4 routes (Multicast): 40000 |
| IPv6 neighbor discovery: 12000 |
| IPv6 routes (Unicast): 87000 |
| Host IPv6 routes (Unicast): 40000 |
| IPv6 routes (Multicast): 20000 |
| MAC Address Table Size | 112000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, |
| IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, BFD, CIDR, BGP for IPv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, |
| DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS, 256-bit AES |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), EAP |
| Features | Flow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP |
| support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack |
| prevention, DiffServ support, store and forward, IPv6 support, High Availability, DPI, WRED, |
| sFlow, STP support, MSTP support, event log, DHCP snooping, ACL support, QoS, DHCP server, |
| VRF-Lite, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, TDR, NSB, NSR, GRES, PVST+, |
| LACP support, DHCP relay, DHCP client, MIB, MVRP, NDP, VSTP, redundant hot swappable fans, CoS, |
| SP, IPFIX, Captive Portal, DSCP support, ERPS, 2 fans, UFD, IP source guard, ECN, ICMP Router |
| Discovery Protocol (IRDP), SCP, VXLAN, Link Aggregation, EVPN, MAC address learning, policy |
| based routing, AAA, WDRR, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, WRR, RVI, |
| VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, flooding detection, MACsec, JTI, |
| MAC Learning Disable, DNS support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, |
| IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, |
| IEEE 802.1ab (LLDP), IEEE 802.1ak, ITU-T G.8032, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, |
| other specific regional standards as listed |
| Processor | 1 x Intel: 2.2 GHz |
| RAM | 4 GB |
| Flash Memory | 20 GB |
| Status Indicators | Status |
| Expansion / Connectivity | Interfaces: |
| 24 x 10/100/1000 Base-T RJ-45 |
| 2 x 100Gbit LAN QSFP28 uplink/stacking |
| 1 x management RJ-45 |
| 1 x USB-C |
| 1 x console RJ-45 |
| 1 x USB |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power | Power Device: Internal power supply – hot-plug |
| Installed Qty: 1 |
| Max Supported Qty: 2 |
| Power Redundancy | Yes |
| Power Provided | 550 Watt |
| Voltage Required | AC 100-120/200-240 V |
| Miscellaneous | Compliant Standards: VCCI, CISPR 24, ICES-003, EN55024, FCC CFR47 Part 15, FCC CFR21 Part |
| 1040, UL 60950-1, IEC 60950-1, RoHS, BSMI CNS 13438, IEC 60825-1, IEC 60825-2, EN 300 386 |
| V1.6.1, KN32, KN35, IEC 62368-1, TCVN 7189, CISPR 32, EN 55032, IEEE 802.3af, IEEE 802.3at, |
| CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, TCVN 7317, EN 55035, CISPR 35, |
| IEEE 802.3bt, EN 300 386 V2.1.1, EMC-221, OCT-16, AS/NZS CISPR 32, TEC, IEC 62368-3, ETSI ES |
| 203 136 V.1.1.1 |
| Manufacturer Selling Program | E-Rate program |
| Software / System Requirements | Software Included: Junos OS |
| Dimensions & Weight | Width: 17.4 in |
| Depth: 16.9 in |
| Height: 1.7 in |
| Environmental Parameters | Min Operating Temperature: 32 °F |
| Max Operating Temperature: 113 °F |
| Humidity Range Operating: 5 – 90% (non-condensing) |
| Min Storage Temperature: -40 °F |
| Max Storage Temperature: 158 °F |
| Humidity Range Storage: 0 – 90% (non-condensing) |
