Juniper Networks MX-series MX204-R – router – rack-mountable

Add to Wishlist

Tech overview

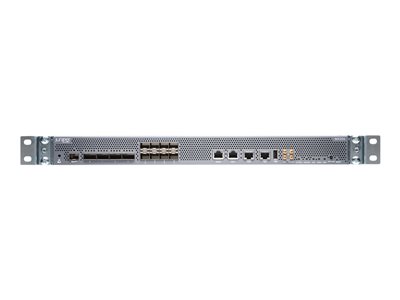

Juniper Networks MX-series MX204-R – Router – front to back airflow – rack-mountable

AED272,099.00

Add to Wishlist

The SDN-ready MX204 3D universal edge router is a cloud-grade routing platform that offers the customers ultra-high density and throughput in a space- and power-optimized package. The MX204 addresses the emerging edge and metro Ethernet networking needs of service providers, mobile, web-scale operators, and MSOs by delivering 800 Gbps of throughput in support of high-density 10GbE, 40GbE, and 100GbE interfaces – all in just one rack unit. The MX204 supports a comprehensive suite of routing, switching, security, and service features, including support for automation and telemetry capabilities that serve as the foundation for the future Self-Driving Network. Additionally, the MX204 supports the stringent timing and synchronization requirements of mobile and financial services.

SKU: MX204-R Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Front to back airflow rack-mountable – modular – 1U
Performance
Switching Capacity 800 Gbps
Network / Transport Protocol IPSec
Routing Protocol BGP, GRE, MPLS
Features Firewall protection, layer 3 switching, NAT support, MPLS support, DDos attack prevention, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Virtual Routing and Forwarding (VRF), redundant fans, Multicast Border Gateway Protocol (MBGP), Virtual Extensible LAN (VXLAN), 3 fan trays, Hierarchical Quality of Service (HQoS), Ethernet OAM, flow monitoring, fast restoration
Compliant Standards NEBS, GR-1089-CORE
RAM 32 GB DDR4 SDRAM
Hard Drive 128 GB
Status Indicators Link OK, alarm, SSD activity, online
Expansion / Connectivity
Interfaces Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 ¦ LAN: 4 x 100Gb Ethernet ¦ LAN: 8 x 10Gb Ethernet – SFP+ ¦ USB: 1 x 4 pin USB Type A
Power
Power Device Internal power supply
Power Redundancy Yes
Installed Qty 2 (max)
Software / System Requirements
OS Required JUNOS
Dimensions & Weight
Width 17.6 in
Depth 18.7 in
Height 1.8 in
Weight 17 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 90%
