Capture up to UHD 4K high-resolution video with multiple recording and streaming options using this JVC GY-HC500U 4K Pro Camcorder with M.2 SSD Media Adapter Kit put together by B&H. The kit includes the GY-HC500U 4K Pro camcorder and the M.2 SSD media adapter. The camcorder features a 1″ CMOS sensor, 20x optical zoom, 40x digital zoom, live streaming up to HD video, and recording up to UHD 4K60 video.
The M.2 SSD media adapter fits into the camera’s expansion slot and allows you to record onto a separately available M.2 SSD, so you can record up to 10-bit 4:2:2 UHD 4K60 video to an external drive while the camera’s internal dual SD card slots allow you to record up to UHD 4K30. The caddy connects to a computer using a USB interface to offload your video for editing.
Read more below about the items in this kit.

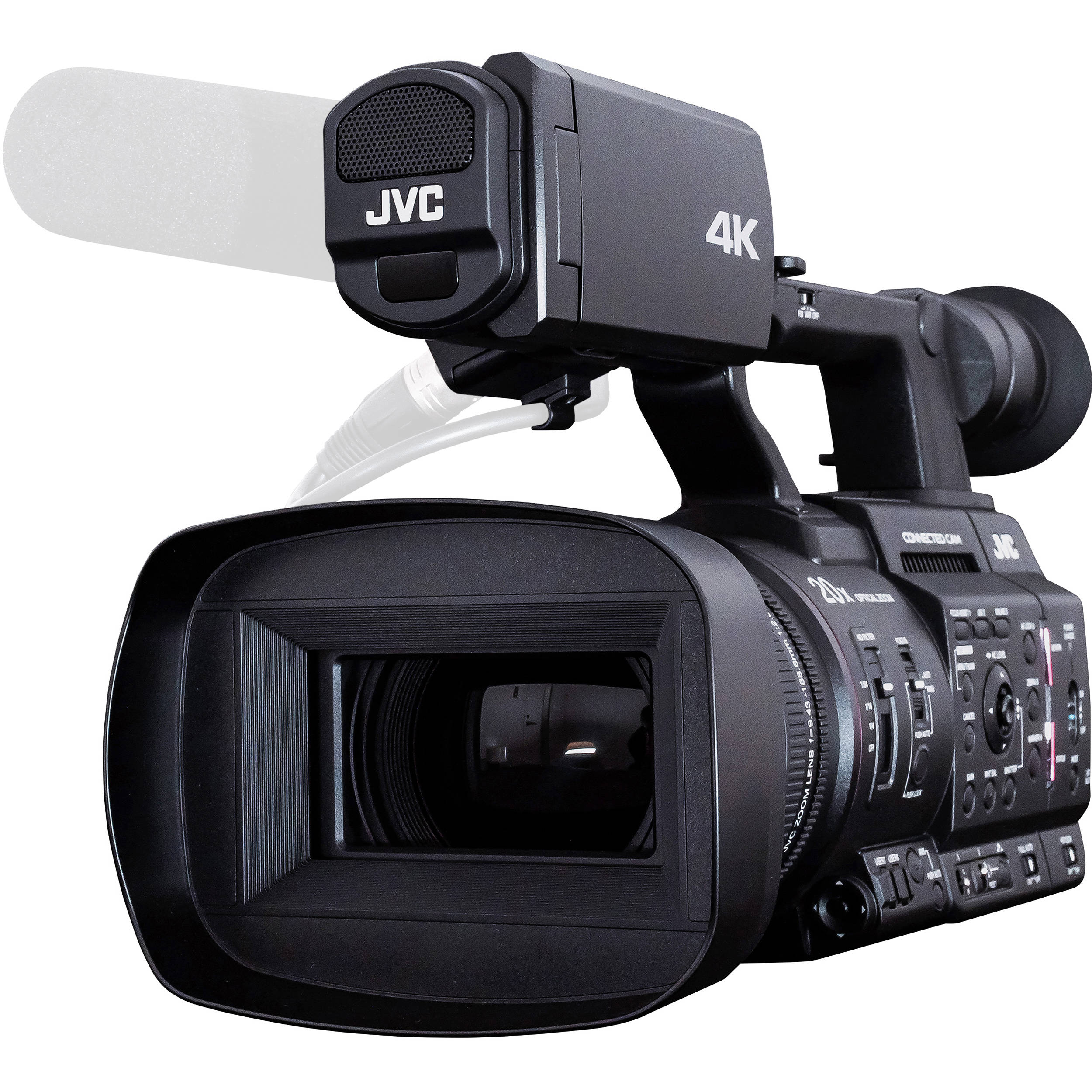

JVC’s GY-HC500U Handheld Connected Cam 1″ 4K Professional Camcorder is a UHD 4K camcorder that shoots in both NTSC and PAL compatible frame rates and is designed to seamlessly work with both a traditional as well as IP workflows. It features a 1″ CMOS sensor and an integrated 20x optical zoom lens, while the camera can create a 40x digital zoom. The camera can capture in UHD, HD, SD, and you can record SD as proxy, recording up to 30p to the built-in media card slots or 60/50p to an optional SSD. The camera supports HDR by recording in HLG or JLog1 (10-bit).
The camera captures in various flavors of ProRes as well as MP4, and it is capable of streaming HD over IP via wired connection. The integrated 20x zoom lens features three manual control rings for iris, focus, and zoom. The EVF features LCOS technology and over 1.2 million dots of resolution, while the built-in flip-out LCD viewfinder is just under 4″ diagonally. The camera can live stream HD while recording 4K and outputting 4K via the HDMI output. It features IFB and return video over IP as well as auto FTP so your video files transfer automatically. It has 2 x SDHC/SDXC card slots and features a slot for an optional SSD for capturing UHD at 60/50p.

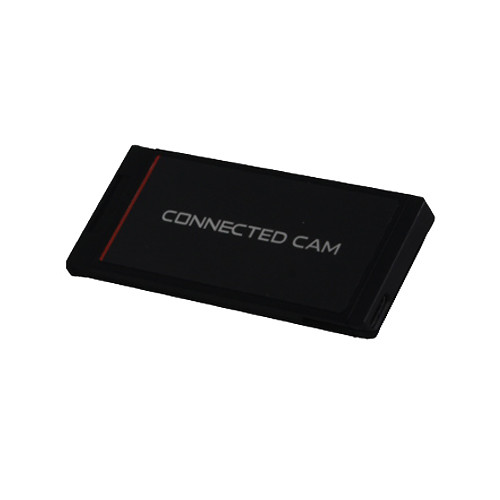

Use this M.2 SSD Media Adapter Caddy from JVC to record up to UHD 4K 60/50p, 10-bit ProRes 422 video on your GY-HC500 or GY-HC550 Connected Cam camcorder. This caddy accepts an M.2 SSD which allows the camera to record higher-resolution video compared to a maximum UHD 4K 30/25p using an SDHC/SDXC card. It installs into the built-in SSD expansion slot on the Connected Cam. The M.2 SSD media is not included with the adapter caddy. To offload your media to a computer, connect the caddy via its USB 3.0/3.1 Gen 1 interface.
ProRes 422:
500GB: 50 minutes
1TB: 100 minutes
2TB: 200 minutes
ProRes 422HQ:
500GB: 32 minutes
1TB: 64 minutes
2TB: 120 minutes
| Image Sensor | 1-Chip 1″ CMOS Sensor |
| Sensor Resolution | Effective: 9.35 Megapixel |
| Sensitivity | f/11 at 2000 lux 89% Reflectance |
| Focal Length | 9.4 to 188.6mm |
| 35mm Equivalent Focal Length | 28 to 560mm |
| Optical Zoom Ratio | 20x |
| Maximum Aperture | f/2.8 to 4.5 |
| Filter Size | 82 mm |
| Control Rings | Focus Zoom Iris |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/6 to 1/10,000 sec |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Built-In Microphone Type | Stereo |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |
| Recording Modes | ProRes 422HQ 4:2:2 10-Bit: 3840 x 2160p up to 50/60 fps ProRes 422 4:2:2 10-Bit: 3840 x 2160p up to 50/60 fps ProRes 422LT 4:2:2 10-Bit: 3840 x 2160p up to 50/60 fps H.264 4:2:2 10-Bit: 3840 x 2160p at 24/25/30 fps (150 Mb/s) H.264 4:2:0 8-Bit: 3840 x 2160p at 24/25/30 fps (70 Mb/s) H.264 4:2:2 10-Bit: 1920 x 1080p (8 to 50 Mb/s) H.264 4:2:0 8-Bit: 1280 x 720p (8 to 50 Mb/s) H.264: 720 x 480p (8 Mb/s) 960 x 540p (1.2 to 3 Mb/s) 480 x 270p (1.2 to 3 Mb/s) |
| Audio Recording | MOV: MP4: Proxy: |
| IP Streaming | MPEG2, RTMP, RTP, RTSP, UDP, TCP: 640 x 360 to 1920 x 1080 at 50p, 59.94p (0.3 to 20.00 Mb/s) |
| Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x 1/8″ (3.5 mm) TRRS A/V (Composite) Output |
| Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8″ / 3.5 mm Stereo Mic Level Input 1 x 1/8″ / 3.5 mm Stereo Headphone Output |
| Other I/O | 1 x 2.5 mm 1 x RCA Timecode 1 x USB (Unspecified Type) LAN Data 1 x RJ45 LAN 1 x 2.5 mm Control |
| Size | 3.97″ |
| EVF Display Type | LCOS |
| Screen Size | .4″ |
| EVF Resolution | 1280 x 960 (1,228,800 Dots) |
| Battery Type | JVC BN-VC296G |
| Power Connectors | 1 x Barrel (12 VDC) Input |
| Accessory Mount | 1 x Cold Shoe Mount |
| Dimensions | 7.68 x 9.06 x 17.52″ / 195 x 230 x 445 mm |
| Weight | 7.94 lb / 3.6 kg |
| Package Weight | 11.195 lb |
| Box Dimensions (LxWxH) | 21.3 x 12.3 x 12.1″ |
| Camera Compatibility | JVC GY-HC500/550 Camcorders |
| Media Compatibility | M.2 SSD |
| Interface | USB 3.0/3.1 Gen. 1 |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 122°F / -20°C to 50°C |
| Dimensions | 3.5 x 0.4 x 1.7″ / 88 x 9 x 44 mm |
| Weight | 1.8 oz / 50 g |
| Package Weight | 0.24 lb |
| Box Dimensions (LxWxH) | 7.5 x 4.4 x 1.8″ |
