KanexPro 4×2 HDMI 4K60 Matrix Switcher with Audio Outputs

Add to Wishlist
  • Route 4 HDMI Sources to 2 HDMI Displays
  • Up to UHD 4K/60 Resolution, 4:2:0
  • Separate TOSLINK & Analog Audio Output
  • HDR & 16-Bit Deep Color Support
  • Front-Panel Buttons & IR Remote Control
  • 3D/HDCP 2.2 Compliant, EDID Management
  • Supports Embedded Audio Extraction
  • PCM/Dolby/DTS-HD/7.1 Ch. Audio Support
  • 18 Gb/s Bandwidth, 1080p Downscaling
  • Robust, Slim, Rectangular Design

AED1,299.00

Add to Wishlist

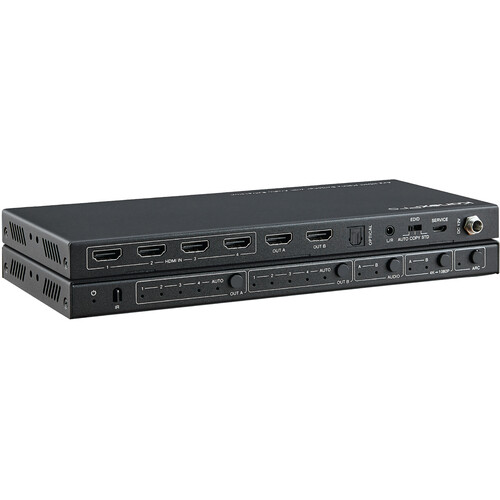

The 4×2 HDMI 4K60 Matrix Switcher with Audio Outputs from KanexPro allows you to display four HDMI sources on two HDMI displays and route one source to the other using the panel control buttons or the included IR remote control. The switcher can also extract audio from the HDMI input and output digital or analog audio with optical TOSLINK and L/R 3.5mm stereo outputs to an independent mixer or speaker system.

The switcher features a slim, rectangular, robust design and can be desktop- or wall-mounted using the supplied mounting ears. It supports up to UHD 4K60 resolution on input and output and can downscale to 1080p60 video output with a maximum bandwidth of 18 Gb/s. The unit features audio format support for PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX/96/24/High Res, and DTS-HD Master audio. Other features include support for HDR and 3D video, HDCP 2.2, smart EDID management, ESD protection, ARC (Audio Return Channel) as well as Dolby Vision, HDR 10+, and HLG.

Key Features
Route four HDMI sources to two HDMI displays
Supports up to UHD 4K60 resolution with 8/10/12-bit 4:2:0 color and up to 8-bit 4:4:4 color
Support for downscaling to 1008p
HDR and 16-bit deep color support; supports Dolby Vision, HDR 10+, HLG
Supports source audio extraction via optical TOSLINK or analog L/R outputs
Supports ARC (Audio Return Channel)
Front-panel and IR remote control
HDCP 2.2 compliant
Supports advanced EDID management including AUTO, COPY, and STD
Robust, slim, rectangular design
Mounting ears included
SKU: HDMX42A-18G Category: Tag:
Processing
Switching Type
IR Remote, Pushbutton
Processing Resolution
UHD 4K at 60
Color Processing
8-Bit 4:4:4 YCbCr
10-Bit 4:2:0 YCbCr
12-Bit 4:2:0 YCbCr
Input
Video Inputs
4x HDMI (DVI/HDMI 2.0) Female
Input Video Format
HDMI (8/10/12-Bit 4:2:0 YCC)
UHD 4K at 30/60 fps
HDMI (8-Bit 4:4:4 YCC)
UHD 4K at 30/60 fps
Embedded Audio Input
HDMI: 7-Channel (per Input)
Output
Video Outputs
2x HDMI (2.0) Female
Output Video Format
HDMI (8/10/12-Bit 4:2:0 YCC)
UHD 4K at 30/60 fps
1080p 30/60 fps
Audio Outputs
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
1x TOSLINK 8-Channel S/PDIF Female
Output Audio Format
Analog
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x Micro-USB Firmware Input
HDCP Support
Yes, Version 2.2
HDR Support
Yes, HDR10+/Dolby Vision/Hybrid Log Gamma
DTS Compatibility
DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio
Dolby Compatibility
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (12 VDC at 1 A) Input
Power Consumption
Device: 3.8 W
Power Supply: 100 to 240 VAC
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 90%
General
Dimensions
9.9 x 4.1 x 0.8″ / 25.1 x 10.5 x 2 cm
Weight
1.4 lb / 620 g
Packaging Info
Package Weight
2.12 lb
Box Dimensions (LxWxH)
10.7 x 7.3 x 2.8″
