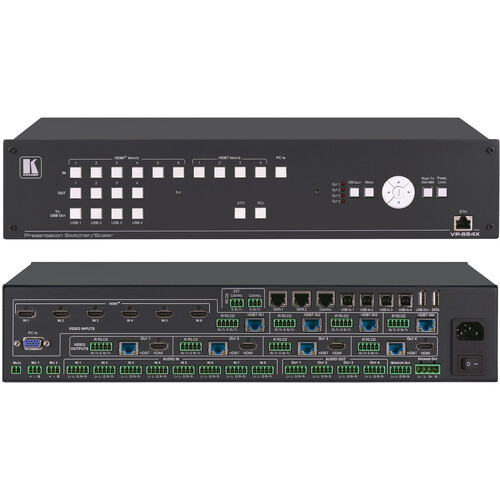

Kramer VP-554X 11×4:2 Presentation Boardroom Router/Scaler System

Add to Wishlist
  • For Multimedia Presentations
  • Mirrored HDMI and HDBaseT Outputs
  • Resolutions up to UHD 4K60 4:4:4
  • Built-In Video Proc Amp
  • Multiple Control Options
  • Integrated Stereo Power Amplifier
  • Analog and Digital Audio Support
  • Advanced EDID Management

AED39,299.00

Add to Wishlist

The VP-554X 11×4:2 Presentation Boardroom Router/Scaler System from Kramer features four pairs of independent, scalable inputs and outputs with mirrored HDMI and HDBaseT as well as a legacy VGA input. The versatile multimedia presentation unit supports up to UHD 4K60 4:4:4 via HDMI, UHD 4K60 4:2:0 via HDBaseT, and 1080p60 via VGA. A built-in video proc amp provides accurate color, hue, sharpness, noise, contrast, and brightness control.

The VP-554X offers an integrated stereo power amplifier and allows for up to two microphones to be connected. Embedded digital audio is supported on the HDMI and HDBaseT inputs and outputs as well as balanced analog stereo audio via multiple 5-pin block ports. Multiple control options include front-panel buttons with OSD, RS-232, Ethernet, and built-in web pages. Advanced EDID management is also supported.

Key Features
  • Kramer’s Pix-Perfect scaling technology provides precision pixel mapping and high-quality full up- and down-scaling
  • Scales the video and provides constant output sync to prevent signal disruption when switching between inputs and when no video is detected
  • HDCP (High-Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass to HDCP compliant outputs
  • 4 x 1 USB switching can be set to follow the switching of the video layer or as an independent switcher
  • Audio DSP features include input and output level adjustments, microphone talkover, mixing, and EQ
  • Analog and embedded audio support
  • Built-in 2 x 20W power amplifier
  • Option for video wall output mode
  • Multiple control options: front-panel buttons with OSD, RS-232, Ethernet, and built-in web pages
  • Includes numerous filters and algorithms for eliminating picture artifacts
  • Converts to 4K60 4:2:0 on HDBaseT outputs when its corresponding mirrored HDMI output resolution is 4K60 4:4:4 (similarly for 4K50)
  • HDMI support: HDR10, CEC, xvYCC color (on input), Dolby TrueHD, DTS-HD Master Audio
  • Multiple aspect ratio selections
  • Advanced EDID management per input
  • Includes non-volatile memory that retains the last settings, after switching the power off and then on again
  • Efficient power-saving features
  • Advanced EDID management per input
  • Includes non-volatile memory that retains the last settings, after switching the power off and then on again
SKU: VP-554X Category: Tag:
Processing
Switching Type
IR Remote, Pushbutton, Software
Processing Resolution
UHD 4K at 60
Color Processing
4:4:4
Input
Video Inputs
6x HDMI (2.0) Female
1x DE-15/DB-15 (VGA) Female
4x RJ45 (HDBaseT) Female
Input Video Format
HDMI (4:4:4)
UHD 4K up to 60 fps
VGA
1080p up to 60 fps
RJ45 (4:2:0)
UHD 4K up to 60 fps
Audio Inputs
8x Block 5-Pin Stereo Female
2x Block 3-Pin Mono Female
Input Audio Format
Analog
Embedded Audio Input
HDMI
RJ45
Output
Video Outputs
4x HDMI (2.0) Female
4x RJ45 (HDBaseT) Female
Output Video Format
HDMI
UHD 4K up to 60 fps
RJ45 (4:2:0)
UHD 4K up to 60 fps
VGA
1080p up to 60 fps
Audio Outputs
5x Block 5-Pin Stereo Analog Female
1x Block 4-Pin Stereo Analog Female
Output Audio Format
Analog
Embedded Audio Output
HDMI
RJ45
Connectivity
Other I/O
4x Block 5-Pin Control, IR, RS-232 Input
4x Block 5-Pin Control, IR, RS-232
4x USB-B Input
1x USB-A Output
1x USB-A Firmware Input
HDCP Support
Yes, Version 2.2
HDR Support
Yes, HDR10
DTS Compatibility
DTS
Dolby Compatibility
Dolby TrueHD
Hardware
OS Compatibility
Windows 7 to 10
macOS
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x IEC C14 Input
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90%
General
Certifications
CE, FCC, RoHS, WEEE
Rack Form Factor
2 RU
Dimensions
17.2 x 9.3 x 3.5″ / 43.7 x 23.6 x 8.9 cm
Weight
11 lb / 5 kg
