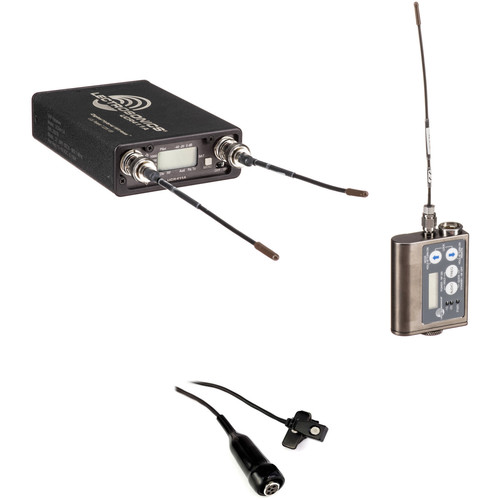

Lectrosonics UCR411a Wireless Omni Lavalier Microphone System Kit (Block 21: 537 to 563 MHz)


17,499.00 د.إ

Key Features
  • For Professional Field Productions
  • M152/5P Omnidirectional Lav Mic
  • SMV Super-Miniature Wireless Transmitter
  • UCR411a SmartDiversity Wireless Receiver

TheĀ Lectrosonics UCR411a Wireless Omni Lavalier Microphone System KitĀ fromĀ B&HĀ delivers Lectrosonics’s world-renowned, pristine wireless audio and reliability for professional field & location production.

The kit comes with the M152/5P omnidirectional lavalier microphone, the SMV super-miniature bodypack transmitter, and the UCR411a SmartDiversity wireless receiver. The transmitter features a water-resistant, super-hard finish and includes a mic-connector kit with a weather-resistant sleeve.

Note:

For system compatibility, the component’s frequency must match your existing system/component frequency.

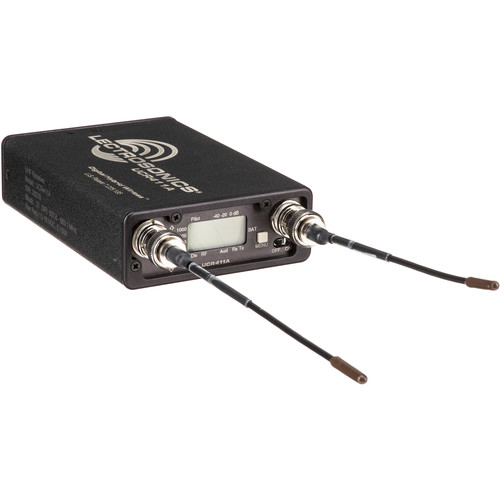

Lectrosonics UCR411a Digital Hybrid Wireless Compact Receiver (Block 21: 537 to 563 MHz)

TheĀ UCR411a Digital Hybrid Wireless Compact ReceiverĀ fromĀ LectrosonicsĀ is a portable, camera mountable receiver designed for professional outdoor or indoor audio applications. It can be used when paired with a transmitter and microphone to capture audio for ENG (electronic news gathering), and EFP (electronic field production) functions, and more.

All settings are made from the front panel with an LCD interface, making the unit ideal for use in Quad Paks, on sound carts, in portable bags, and in rackmount multi-couplers. The receiver is compatible with all 400 series wireless transmitters and provides 256 selectable UHF frequencies across a 25.6 MHz tuning range. SmartDiversity reception reduces RF interference and dropout and a built-in RF spectrum analyzer searches across the entire 25.6 MHz tuning range, locating the strongest possible frequencies in the area.

Furthermore, a balanced XLR output provides maximum output gain with minimal noise and the receiver is powered by two internal 9V batteries or external DC power supply. The machined aluminum housing and panels are surfaced with electrostatic powder-coated and anodized finishes with laser etched markings to withstand the rigors of field production.

Note:

For system compatibility, the component’s frequency must match your existing system/component frequency.

Digital Hybrid Technology

24-bit digital audio stream is decoded at the receiver resulting in greater operating range without noise and artifacts caused by analog compandor circuits.

256 Selectable Frequencies

The receiver offers 256 selectable UHF frequencies over a 25.6 MHz range.

SmartDiversity Diversity Reception

The UCR411 uses Lectrosonic’s SmartDiversity design analyzes incoming audio signal to determine the optimum timing for phase switching. The result is minimal noise and dropout due to RF interference.

SmartNR

Lectrosonics SmartNR (Noise Reduction) automatically allocates noise reduction by attenuating audio signal that match a calculated, statistical profile. The result enhances clarity and intelligibility while eliminating noise.

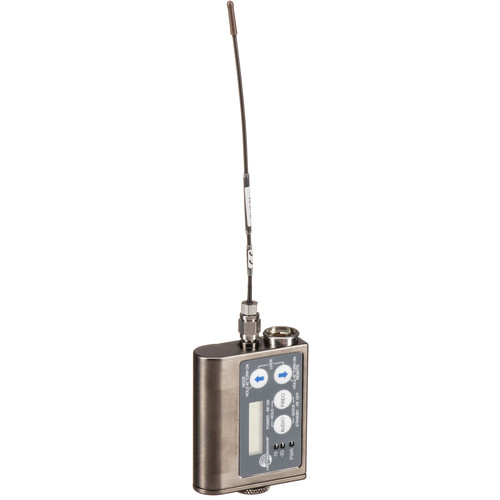

Lectrosonics SMV Super Miniature Wireless Microphone Transmitter (Freq Block 21)

TheĀ Lectrosonics SMV Super Miniature Wireless Microphone TransmitterĀ incorporates Lectrosonics patented Digital Hybrid Wireless technology, in a package no bigger than a pager. The SMV transmitter is miniature in size yet rugged enough to withstand rigorous daily use in the field or in studios.

To meet the demand for both extended operating range and extended battery life, the SMV transmitters offer selectable output power of 50, 100 or 250 mW. A third selection at 50 mW is provided for some theatrical applications, where the system design specifies lower transmitter power. The SMV transmitter offers 256 user-selectable UHF frequencies. The Switchcraft TA5M audio input has user-calibrated 44 dB gain range, and accepts electret lavaliere mics, dynamic mics, or line level signals. A DSP-controlled analog audio limiter is employed before the A-D converter. The limiter has a range of more than 30 dB and a dual-release envelope, making the limiter transparent while maintaining low distortion.

Lectrosonics patented Digital Hybrid technology revolutionizes wireless microphone transmission. Digital audio signal is converted and encoded for analog transmission, then decoded and converted back to digital audio at the receiver. The result is an exceptionally low noise floor as the compandor circuit is eliminated and clear audio reception is retained at greater distances.

The non-corrosive, machined aluminum casing is splash proof and features an LCD display with membrane switch control panel. The transmitter is powered by one AA lithium, NiMH or alkaline battery for up to 7.25 hours (lithium). The SMV transmitter is completely compatible with all Lectrosonics Digital Hybrid wireless receivers, as well as older Lectrosonics analog receivers.

A Clear and Reliable Omnidirectional Lav Mic

Variable, Selectable Output Power

The SMV features selectable 50, 100 or 250 mW output power.

Miniature Design

The miniature design allows for a variety of mounting possibilities in film, video, theater, performances, etc.

Digital Hybrid Wireless Architecture

Lectrosonics incorporates digital and analog audio technology to enhance range and eliminate the noise associated with compandor circuits.

Locking TA5-Male Connection

A locking TA5M input is compatible with Lectrosonics and third-party microphones and cables. The input accepts line and microphone level signal.

Backwards Compatibility

The SMV transmitter is completely compatible with all current Lectrosonics Digital Hybrid receivers and older Lectrosonics analog receiver models as well.

Splash-Proof Enclosure

The polished aluminum enclosure is moisture proof and ideal for use in rain.

Extended Battery Life

The SMV transmitter is powered by one AA alkaline, NiMH or lithium rechargeable battery. With Lithium power, the unit is capable of up to 7.25 hours of use.

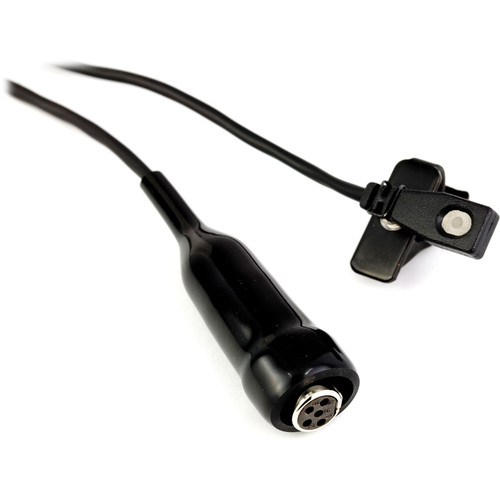

Lectrosonics M152/SM5P Omnidirectional Lavalier Microphone with Water-Resistant TA5F Connector (Black)

The blackĀ Lectrosonics M152/SM5PĀ is an omnidirectional lavalier microphoneĀ featuring a wide frequency response that accentuates the presence and character of the human voice. The mic offers a 3.3′ cable and this version features a dust- and moisture-resistant rubber sleeve that protects the TA5F connector and complements the water-resistant characteristics of the SM Series transmitters. The TA5F connector is designed to work with any Lectrosonics transmitter with a TA5M input connector.

The M152’s frequency response is measured at 20 Hz to 20 kHz with a slight rise around 10 kHz, resulting in a brighter, more “airy” response. A low-frequency roll-off around 50 Hz reduces noise caused by proximity effect and ambience. The omnidirectional polar pattern provides a generous response at both the direct and off-axis sections of the microphone capsule, helping to ensure consistent levels.

Locking TA5F Connector

Compatible Wireless Transmitters

  • Lectrosonics:Ā Works with current and legacy Lectrosonics transmitter and recorder models equipped with a TA5M connector, including the following: SMWB, SMDWB, LMb, LT, MTCR, SPDR, SMV, SMQV, and DBu (TA5M version).
  • The M152/SM5P can also be used with third-party transmitters that are equipped to supply 1.3 to 10 VDC through a TA5M connector with a Lectrosonics servo-bias wiring configuration.

Moisture-Resistant Rubber Sleeve

The M152/SM5P features a rubber sleeve over the TA5F connector that is resistant to both dust and moisture, making it well suited to the water-resistant connectors used on the SM Series transmitters.

A Clear and Reliable Omnidirectional Lav Mic

Wide Frequency Response with Presence Boost

A wide 20 Hz to 20 kHz frequency range with a light low-end roll-off filter below 50 Hz along with a 2 to 3 dB presence boost in the 10 to 12 kHz range allows the M152 to provide crisp and accurate reproduction of speech and vocals.

Omnidirectional Polar Pattern

The forgiving omnidirectional polar pattern picks up sound from all around the mic and provides a consistent frequency response, even for off-axis sound. This helps to supply clear, intelligible speech, even when the talent isn’t speaking directly toward the microphone.

Headroom for Standard Speech Applications

The mic is designed to handle speech at levels up to 114 dB without distortion, enough headroom for most broadcast and presentation applications.

Tough Build Quality

The M152 has been designed to minimize mechanical noise and survive the rigors of on-set wear and tear to deliver accurate, dependable audio.

Lectrosonics UCR411a Digital Hybrid Wireless Compact Receiver (Block 21: 537 To 563 MHz)Ā Specs

RF Carrier Frequency Range Block 21: 537 to 563 MHz
Frequency Adjustment Range 25.5 MHz in 100 kHz steps
Type of Receiver Triple conversion, superheterodyne, 244 MHz, 10.7 MHz, and 300 kHz
Frequency Stability ±0.001%
Front End Bandwidth ±5.5 MHz @ -3 dB
Sensitivity 20 dB Sinad: 0.9 uV (-108 dBm), A weighted
60 dB Quieting: 1.12 uV (-105 dBm), A weighted
Squelch Quieting Greater than 100 dB
AM Rejection Greater than 60 dB, 2 uV to 1 V (undetectable after processing)
Modulation Acceptance 85 kHz
Image and Spurious Rejection 85 dB
Third Order Intercept +8 dBm
Diversity Method Phased antenna combining SmartDiversity
FM Detector Digital Pulse Counting Detector operating at 300 kHz
Antenna Inputs Dual BNC female, 50-Ohm impedance
Audio Outputs Rear Panel XLR: Adjustable from -50 dBu to +5 dBu in 1 dB steps
Calibrated into a typical 10-kOhm balanced load
Can drive 600-Ohm load
Front Controls & Indicators
LCD Display Main Window: Pilot tone, antenna phase, receiver battery level, transmitter battery status, audio level, and RF level
Frequency Window: Frequency, TV channel, and Transmitter switch setting
Audio Output Level Adjustment: -50 dBu to +5 dBu
Battery Level Tracking: Receiver and transmitter (9 V battery) in 1/10th V steps, accuracy ±0.2 V
Transmitter (AA battery) x.xxV format, accuracy ±0.05 V
Timer option available when transmitter battery is set to NiMH
Scanning Mode: Coarse and fine modes for RF spectrum site scanning
Audio Test Tone: 1 kHz, -50 dBu to +5 dBu output, < 1% THD
Transmitter Battery Type Selection: 9 V alkaline, 9 V lithium, AA alkaline, AA lithium, and NiMH
Phase Invert: Audio output phase normal or inverted
SmartNR (Noise Reduction): OFF, normal, and full modes (available in 400 Series mode only)
Audio Performance (Overall System)
Frequency Response 32 Hz to 20 kHz (±1 dB)
THD 0.2% (typical)
SNR at Receiver Output SmartNR Off: No limiting 103.5 dB, w/limiting 108.5 dB
Normal: No limiting 107.0, w/limiting 111.5 dB
Full: No limiting 108.5, w/limiting 113.0 dB
Input Dynamic Range 125 dB (with full Tx limiting)
Rear Panel XLR audio output jack, External DC input, and battery compartment access
Power Options Ext DC: Minimum 10 V to maximum 18 VDC, 1.6 W, 180 mA at 12 VDC
Internal Battery: 2 x 9 V alkaline or lithium (165 mA @ 9 V, 240 mA @ 6 V)
Battery Life 9 V Alkaline: 6 to 8 hours continuous, up to 12 hours intermittent
9 V Lithium: Up to 20 hours (continuous and intermittent usage are the same)
Dimensions (W x H x D) 3.2 x 1.3 x 4.6″ / 8.2 x 3.2 x 11.8 cm
Weight 14.0 oz / 396.9 g (with batteries)
Packaging Info
Package Weight 3.8 lb
Box Dimensions (LxWxH) 14.05 x 10.55 x 4.15″

Lectrosonics SMV Super Miniature Wireless Microphone Transmitter (Freq Block 21)Ā Specs

Physical
Operating Frequency 537.600 – 563.100 MHz
Frequency Range 256 frequencies in 100 kHz steps for one 25.5 MHz wide block
Channel Spacing 100 kHz
Frequency Selection Control panel mounted membrane switches
RF Power Output Switchable; 50, 100 or 250 mW
Compatibility Modes Digital Hybrid WirelessĀ® (400 Series), 200 Series, 100 Series, Mode 3 , Mode 6, IFB
Pilot Tone 25 to 32 kHz; 5 kHz deviation (in 400 Series Mode)
Frequency Stability ± 0.002%
Deviation ± 75 kHz max. (in 400 Series Mode)
Spurious Emission 60 dB below carrier
Equivalent Input Noise -125 dBV, A-weighted
Input Level
  • If set for dynamic mic: 0.5 mV to 50 mV before limiting; greater than 1 V with limiting
  • If set for electret lavaliere mic: 1.7 uA to 170 uA before limiting; greater than 5000 uA (5 mA) with limiting
  • Line level input: 17 mV to 1.7 V before limiting; greater than 50 V with limiting
Input Impedance
  • Dynamic mic: 300 Ohms
  • Electret lavaliere: input is virtual ground with servo adjusted constant current bias
  • Line level: 2.7 k Ohms
Limiter DSP Controlled Soft limiter, 30 dB range
Bias Voltage(s) Fixed 5 V at up to 5 mA; selectable 2 V or 4 V servo bias for any electret lavaliere
Gain Range 44 dB; panel mounted membrane switches
Modulation Dual bicolor LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation
Controls Control panel with LCD and four membrane switches
Low Frequency Roll-Off Adjustable from 35 to 150 Hz
Audio Frequency Response 35 Hz to 20 kHz, +/-1 dB
Signal to Noise Ratio SmartNR Off:

  • No Limiting: 103.5 dB
  • Limiting: 108 dB

SmartNR Normal:

  • No Limiting: 107 dB
  • Limiting: 111.5 dB

SmartNR Full:

  • 108.5 dB
  • 113 dB
Total Harmonic Distortion 0.2% typical (400 Series mode)
Audio Input Jack Switchcraft 5-pin locking (TA5F)
Antenna Flexible, unbreakable steel cable
Batteries One 1.5 Volt AA lithium or rechargeable; NiMH recommended
Battery Life 50 mW:

  • Alkaline: 2 hrs
  • Lithium: 7.25 hrs
  • 2500 MA NiMH: 5 hrs

100 mW

  • Alkaline: 1.5 hrs
  • Lithium: 5.5 hrs
  • 2500 MA NiMH: 4 hrs

250 mW

  • Alkaline: not recommended
  • Lithium: 3 hrs
  • 2500 MA NiMH: 2.25 hrs
Emission Standard 180KF3E
Dimensions 2.3 x 1.8 x 0.64″ / 58 x 46 x 16 mm not including microphone/lanyard
Weight 2.7 oz / 75.9 g with lithium battery
Packaging Info
Package Weight 0.875 lb
Box Dimensions (LxWxH) 9.9 x 7.85 x 2.95″

Lectrosonics M152/SM5P Omnidirectional Lavalier Microphone With Water-Resistant TA5F Connector (Black)Ā Specs

Microphone
Form Factor Lavalier
Capsule 1 xĀ Electret Condenser
Polar Pattern Omnidirectional
Windscreen Foam (Included)
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 114 dB SPL
Impedance 3 Kilohms
Sensitivity 10 mV/Pa
Signal-to-Noise Ratio 38 dB
Connectivity
Output Connectors 1 xĀ TA5/Mini XLR 5-Pin Female Balanced (Lockable)
Headphone Connector None
Cable Length 3.3′ / 1Ā m
Power
Operating Voltage 1.3 to 10 V
Operating Current Consumption 30 µA
Physical
Color Black
Mounting Alligator Clip (with Included Hardware)
Packaging Info
Package Weight 0.12 lb
Box Dimensions (LxWxH) 3.9 x 2.45 x 1.15″
