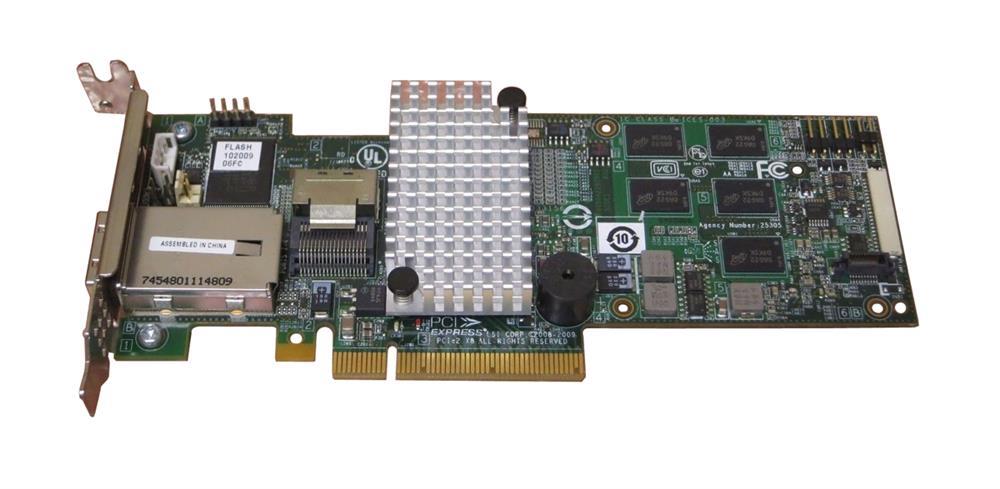

LSI Logic LSI00209 512MB PCIe SAS/SATA MegaRAID Controller

LSI Logic LSI00209 512MB 8 Port PCIe SAS/SATA 6Gbps MegaRAID Controller – Brand New

LSI Logic LSI00209 512MB 8 (4 Internal/4 External) Port PCI Express, SAS, Serial ATA 6.0 Gbps MegaRAID Controller – Brand New

Alt MPN: 9280-4i4e

MegaRAID® SAS 9280-4i4e Four-Port Internal / Four-Port External 6Gb/s PCI Express SATA+SAS RAID Controller

Protect Business Critical Data with the Industry’s Most Trusted SATA+SAS RAID Controllers

Next-Generation SATA+SAS RAID – MegaRAID SATA+SAS controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges driven by unprecedented data growth. The MegaRAID SAS 9280-4i4e, with four internal and four external ports, supports both internal drive storage and external JBOD expansion. Using the external SAS ports, multiple JBODs can be connected to a server, providing a scalable and affordable solution for growing storage requirements.

6Gb/s SAS Performance Advantage – With data transfer rates of up to 6Gb/s per port, the MegaRAID SAS 9280-4i4e bring users new features and improved performance, while continuing to support all the features of the previous 3Gb/s SATA+SAS generation. 6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS as well as with 6Gb/s and 3Gb/s SATA hard drives. Regardless of the drive speed, 6Gb/s MegaRAID controllers will deliver significant performance improvements in both read and write applications as compared to their 3Gb/s predecessors.

SafeStore Encryption Services – Avago is pleased to introduce SafeStore Encryption Services, which include Instant Secure Erase for self-encrypting drives (SEDs). This technology represents a significant step forward in securing a drive’s data from any unauthorized access or modification resulting from theft, loss, or repurposing of drives. Instant secure provides instant data protection via cryptographic erase. Whether the drive is 73GB or 1TB, this feature will delete the existing encryption key and regenerate a new data encryption key in less than a second, enabling drives to be returned, retired, sold or reused securely.

Intuitive RAID Management Utility – The MegaRAID Management Suite™ provides the essential software tools to efficiently manage MegaRAID products, whether deployed in an enterprise or small business. Avago offers a collection of applications and tools including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allow administrators to adjust SAS topology views from the system host, controller and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools scale to easily configure, monitor and manage RAID volumes locally or over the LAN network.

Key Features

• Four internal + Four external 6Gb/s SATA+SAS ports
• One Mini-SAS internal connector (SFF-8087)
• One Mini-SAS external connector (SFF-8088)
• LSI SAS 2108 6Gb/s RAID-on-Chip
  • 800MHz PowerPC®
• 512MB 800MHz DDRII cache memory
• Optional battery backup module
• RAID Levels 0, 1, 5 and 6
• RAID Spans 10, 50 and 60

Key Advantages

• Superior Performance
  • Maximum Reads: 2,875MB/s
  • Maximum Writes: 1,800MB/s
• PCI Express® 2.0 provides faster signaling for high bandwidth applications
• Support for 3Gb/s and 6Gb/s SATA and SAS hard drives
• SafeStore™ Encryption Services for more secure data protection
