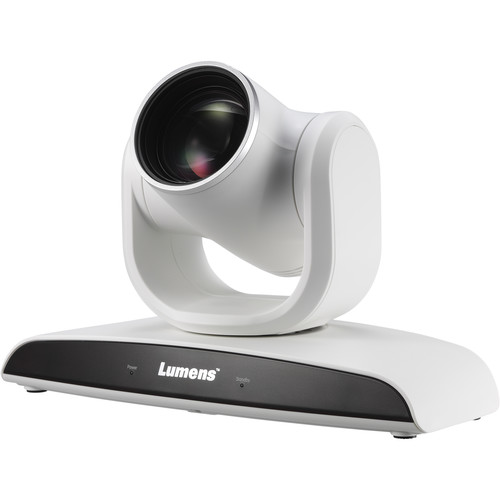

Lumens VC-B30U 2MP PTZ Camera (White)

Add to Wishlist

AED5,499.00

Add to Wishlist

The white Lumens VC-B30U 2MP PTZ Camera is designed to support video at resolutions up to 1920 x 1080p at 60 fps. It features a 12 x optical zoom with a 3.92-47.32mm varifocal lens, f/1.8-2.8 aperture, 74° horizontal and 82° diagonal viewing angle,  -100 to 100° pan, and a -30 to 30° tilt. It offers USB 3.0 and HDMI video outputs. The Lumens Control Software (free download) can be used to control the camera without a joystick controller.

This plug-and-play camera uses standard UVC drivers and is compatible with Windows, Linux, MacOS, and Chrome OS. The VC-B30U camera has one USB interface that can work with the video conferencing software and one HDMI that can be used to output video to a second display. A remote control, power cord, power adapter, USB 3.0 cable, and HDMI cable are included.

Works with any software running on OS that supports USB 3.0 devices
Up to 128 preset settings for pan, tilt, zoom, focus, exposure, and white balance modes
Quiet, fast, and precise positioning movements
The camera’s settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232 interface and supports daisy-chain
IR select DIP switch
Key Features
  • Up to 1920 x 1080 Resolution at 60 fps
  • 3.92-47.32mm Varifocal Lens
  • 74° Horizontal Viewing Angle
  • 12x Optical Zoom
  • -100 to 100° Pan
  • -30 to 30° Tilt
  • USB 3.0 and HDMI Video Outputs
  • RS-232 Interface
  • Remote Control
SKU: VC-B30UW Category: Tag:
Weight 1.32 kg

Lumens VC-B30U Specs

Image Sensor
Image Sensor 1-Chip 1/2.8″ CMOS Sensor
Sensor Resolution 1920 x 1080 (2.0 MP)
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1.6 Lux
Camera
Shutter Speed 1/10000 to 1/1 sec
Max Digital Zoom 12x
Lens
Optical Zoom Ratio 12x
Focal Length 3.9 to 47.3mm
Field of View Horizontal: 74°
Diagonal: 82°
Maximum Aperture f/1.8 to 2.8
Minimum Focusing Distance Wide: 19.7″ / 50.0 cm
Telephoto: 47.2″ / 120.0 cm
Focus Control Autofocus
Manual Focus
Video Output
Output Formats USB: 1920 x 1080p at 25, 30 fps
1280 x 720p at 25, 30 fps
HDMI: 1920 x 1080p at 50, 60 fps
1280 x 720p at 50, 60 fps
Control
Presets 128 via RS-232
Movement Range Pan: 200° (-100 to 100°)
Tilt: 60° (-30 to 30°)
Supported Control Protocols RS-232
Interfaces
Video Output Connectors 1 x USB 3.0 Type-B (USB Video) Female
1 x HDMI Type A Female
Control Interface 1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output
Power
Power Connectors 1 x Barrel / Coaxial (12 VDC)
General
Dimensions 10.6 x 4.8 x 6.2″ / 26.92 x 12.19 x 15.75 cm
Weight 2.9 lb / 1.32 kg
Packaging Info
Package Weight 5.85 lb
Box Dimensions (LxWxH) 13.4 x 8.9 x 8.7″
