Movo Photo WMX-20 Camera-Mount Wireless Lavalier Microphone System (UHF: 556.71 to 595.66 MHz)

Add to Wishlist

799.00 د.إ

Add to Wishlist
Key Features
  • For Mobile Journalist, Videographer
  • 1 x Omnidirectional Lavalier Mic
  • 1 x Bodypack Transmitter
  • Camera-Mount Dual-Channel Receiver

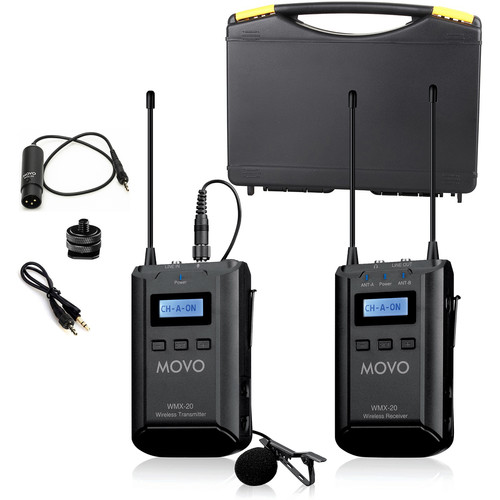

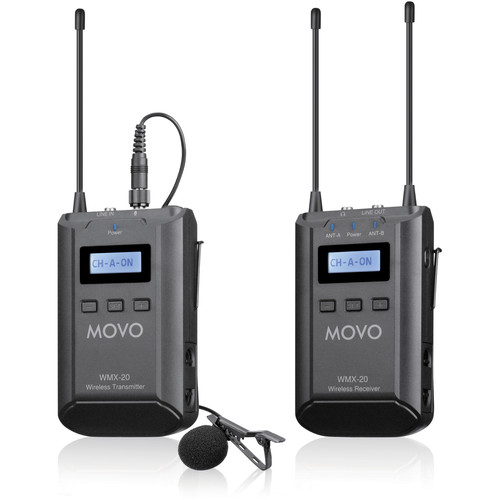

Movo Photo WMX-20 Overview

The Movo Photo WMX-20 is a camera-mount wireless lavalier microphone system offering a complete, budget-friendly solution for filmmakers, videographers, and mobile journalists looking to record one subject (or expand to two subjects in the future) with a camera, camcorder, or portable audio recorder.

The dual-channel receiver can accept signal from the bodypack transmitter from up to 330′ away while outputting audio in split-mono or stereo mode. A dedicated headphone output enables convenient real-time monitoring while recording. With 48 channels at your disposal, you have plenty of options for achieving wireless operation free of interference. Plus, the system utilizes the UHF band to avoid conflicts with Bluetooth and Wi-Fi devices.

Separate mic and line inputs on the transmitter can accommodate the included omnidirectional lavalier microphone or an audio feed from a camera or mixer, making the WMX-20 great for traditional mic capture or camera hops. The mute buttons and adjustable gain give you easy control over the audio signal.

Powered via AA batteries (available separately), the receiver and transmitter provide up to six hours of run time. 3.5mm and XLR output cables are included to ensure easy connectivity between the receiver and your camera, camcorder, or recorder.

  • Operates on the license-free UHF frequency range from 556.71 to 595.66 MHz
  • Enables operation of two transmitters on two groups of 48 channels (96 unique frequencies)
  • Supports up to 48 microphones at the same time
  • Wireless operating range up to 330′
  • Camera-mount receiver with dedicated line and headphone outputs to allow real-time monitoring while recording
  • Bodypack transmitter with belt clip and separate mic and line input jacks
  • Omnidirectional lavalier microphone with locking 3.5mm TRS mini plug
  • Dual-channel receiver can output in split-mono or stereo
  • Adjustable gain
  • Backlit LCD screens with control lock
  • Mute buttons
  • Up to six hours of run time via two AA batteries (available separately)
  • Includes 3.5mm TRS cable for connection to a camera and a 3-pin XLR cable for connection to a camcorder or portable audio recorder
SKU: WMX-20 Category: Tag:

Movo Photo WMX-20 Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 48
Included Transmitters 1 x Bodypack with Microphone
Diversity Non-Diversity
RF Frequency Band A:
556.71 to 575.98 MHz
B:
576.39 to 595.66 MHz
RF Channel Scanning Manual
Max Operating Range 330′ / 100.6 m (Line of Sight)
Max Systems per Setup 48
Encryption None
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave Wire, Fixed (Top-Mount)
Number of Audio Channels 2
Audio I/O 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level -60 dBV
Frequency Response 40 Hz to 18 kHz ±3 dB
Network I/O None
Word Clock I/O None
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 6 Hours
Display & Indicators 1 x Backlit LCD (Channel)
1 x LED (Power)
2 x LED (Data Transmission)
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.6 x 8.2 x 1.1″ / 67 x 208 x 29 mm (with Antennas)
Weight 3.4 oz / 95 g (without Batteries)
Transmitter 1
Transmitter
Form Factor Bodypack with Microphone
RF Output Power 10 mW
Audio I/O 2 x 1/8″ / 3.5 mm TRS Female Unbalanced Input
Included Cable Connector 1/4″ TRS
Pad None
Muting Mute Switch
Audio Input Level -60 dBV (Mic Level, at 0 dB Gain)
Auto-Level Control No
Signal Processing None
Frequency Response 20 Hz to 20 kHz
Sync Method Manual
Antenna 1 x 1/4 Wave Wire, Fixed
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 6 Hours
USB/Lightning Connectivity None
Display & Indicators 1 x Backlit LCD (Channel)
1 x LED (Power)
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.6 x 8.2 x 1.1″ / 67 x 208 x 29 mm (with Antennas)
Weight 2.9 oz / 81 g (without Batteries)
Microphone
Form Factor Lavalier
Color Black
Sound Field Mono
Operating Principle Pressure Operated
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 35 Hz to 18 kHz
SNR 74 dB
Sensitivity -30 dBV/Pa at 1 kHz
Output Connectors 1 x 1/8″ / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 3.94′ / 1.2 m
Packaging Info
Package Weight 1.435 lb
Box Dimensions (LxWxH) 9.3 x 7.6 x 2″
