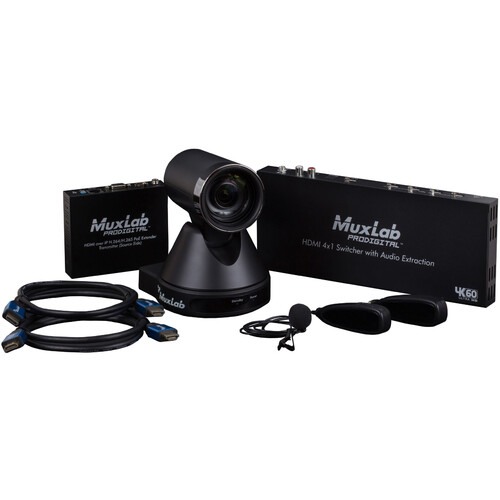

MuxLab MuxStream Multi-Camera Live Streaming Solution

Add a standalone video conferencing device to your conference room, lecture hall, event space, or house of worship with this MuxStream 1080p HDMI/IP PTZ Streaming Camera with 12x Optical Zoom from MuxLab. The camera features a high-quality HD 1/2.7″ 2.07MP CMOS sensor, 12x optical zoom, 16x digital zoom, wide 72.5° angle of view, noise reduction, analog audio input, and serial control capability.

The PTZ camera allows you to capture up to 1080p60 video that it can output via HDMI to a video switcher or via IP to a computer for optional streaming to popular internet sites, using low-latency H.265/H.264 video codecs. The free-to-download MuxStream control app installs onto your Android or iOS tablet or Windows system, allowing you to set up and control the PTZ camera.

The sensor features 2D/3D noise reduction that reduces image noise for a crisp, clean image in low-light. Its quiet motor allows you to pan and tilt smoothly using the included IR remote, via IP connectivity, or via an optional serial controller, using RS-232 serial protocols such as VISCA, Pelco-P, and Pelco-D. A power adapter, power cord, and RS-232 cable are also included with the camera.

Switch between four HDMI sources such as a computer, laptop, DVD, or Blu-ray to one HDMI display such as a projector, monitor, TV, or another destination with the 4K HDMI 4×1 Switcher with Audio Extraction from Muxlab. Supporting up to UHD 4K60 resolution, this switcher is equipped with four HDMI inputs, two RCA audio outputs which extract LPCM 7.1, Dolby TrueHD, Digital Plus, and DTS-HD audio to digital S/PDIF TOSLINK and LPCM to analog 2CH audio, and one HDMI output.

The 3.5mm stereo, RCA coaxial, and TOSLINK optical connectors allow audio to be de-embedded from the sources and output to audio equipment. The switcher supports up to 12-bit Deep Color, uncompressed HD audio, pass-through of LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master audio. The switching and audio mode selections are controlled via buttons on the front of the unit or with the included IR remote control.

The MuxLab 500764-TX allows you to transmit up to a UHD 4K/60 HDMI signal up to 328′ over a single Cat 5e/6 cable. It’s compatible with the MuxLab 500762-RX receiver and can be set up in various combinations with Ethernet switches, network controllers, and routers. It lets you achieve point-to-point, point-to-multipoint, and multipoint-to-multipoint matrix, video wall, and multiview configurations. Depending on network bandwidth, hundreds of devices can be incorporated and managed using the optional MuxLab 500811 or 500812 Pro Digital Network Controller, or via the MuxControl iOS/Android app or 3rd-party apps. Additionally, RS-232 and directional IR inputs allow for remote control of end-point devices.

With H.264/H.265 codec support, the transmitter allows streaming over a local network or over the Internet for worldwide distribution in a low-bandwidth workflow. In low-latency mode using the H.265 codec, the delay is only 200ms. Alternatively, the MJPG video codec is also supported for low-latency transmission. Featuring support for Power-over-Ethernet (PD), the transmitter can be powered by a PoE (PSE) Ethernet switch, but it also supports the optional MuxLab 500993 power supply.
