MXL ACVC HD USB 2.0 PTZ Camera and 180-Degree USB Conferencing Mic Bundle

Add to Wishlist

AED3,299.00

Add to Wishlist

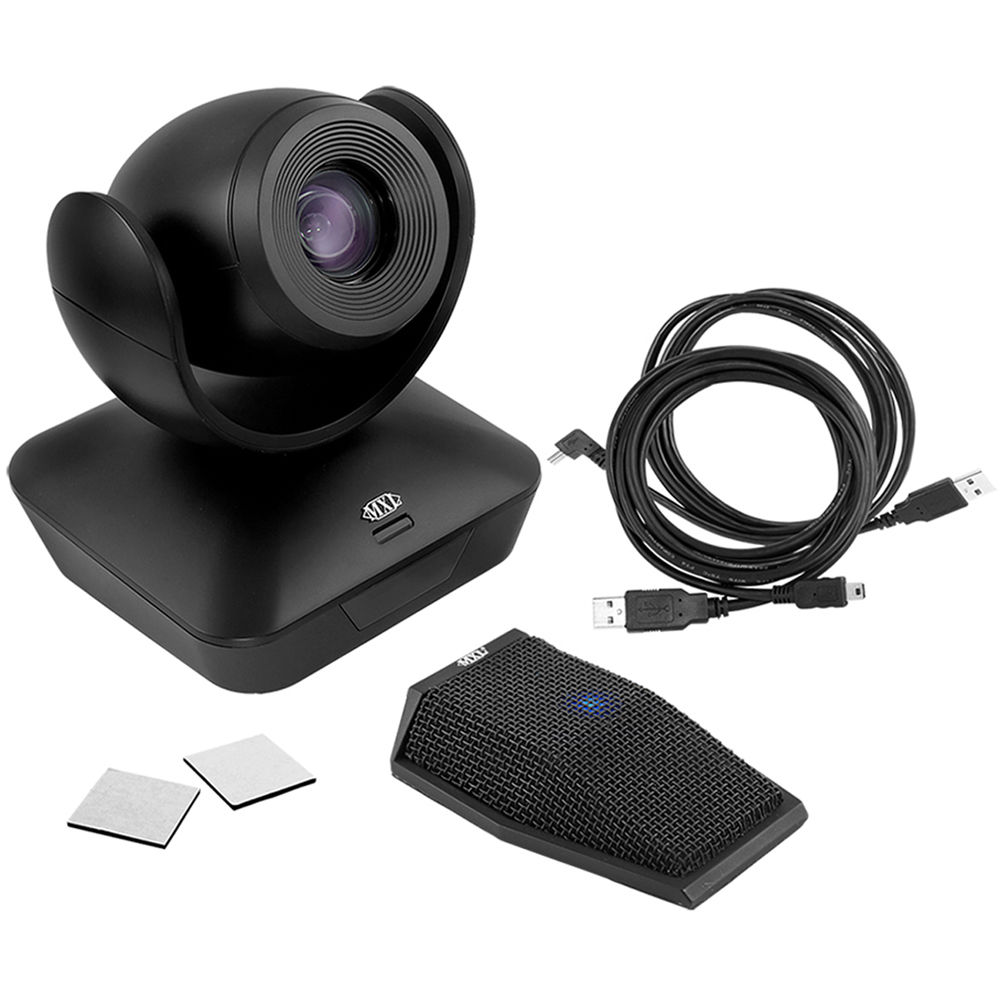

The MXL ACVC is a complete plug-and-play package for integrating video and audio into meeting rooms, huddle rooms, and other web conferencing applications. It includes the black CV610-U2 HD USB 2.0 PTZ camera, an AC-404 portable USB conferencing microphone, and all the cables and mounting accessories you’ll need for easy installation. Thanks to the camera’s 10x optical zoom, 340° horizontal pan, and 120° vertical tilt, and the microphone’s 25-foot pickup range across 180 degrees, your clients and collaborators will be able to clearly see and hear what’s going on in your room.

Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera (Black)

The black CV610-U2 Full HD USB 2.0 PTZ Camera from Marshall Electronics incorporates a 5MP 1/2.8″ image sensor with a 10x optical zoom. It is suitable for small teleconference spaces, and outputs video via USB 2.0. The camera supports UVC1.5, which allows you to control the camera via the USB2.0 port as well. You can also control the camera using the RS-232 port.

Outputting 1080p, 720p, and 480p, the camera captures video at 30, 15, or 8 fps, and the 10x optical and 12x digital zoom provides up to 120x zoom capability. The camera can store up to 128 preset positions, and it is compatible with common software platforms for Teleconference, Unified Communications (UC), and Huddle Spaces.

1/2.8″ sensor captures clear images
Full HD image resolution at 30/15/8 fps
OSD Menu
3D Noise Reduction
Electronic Shutter
Wide Dynamic Range
IR Transfer (IR Pass)
10x optical zoom (4.7 to 47mm lens) with 12x digital
10 presets via IR remote setting, 128 via VISCA control, preset accuracy: 0.1°
Mountable via table, wall, ceiling mounts included with flippable images
Compatible with integrated video conferencing systems
Quiet PTZ motor allows for quality transitions

MXL AC-404 Portable USB Boundary Conferencing Microphone (Black)

The black MXL AC-404 is a USB boundary microphone with a low-profile, desktop design and a durable metal construction. Three built-in mic capsules provide a wide 180° pickup pattern and capture sound within a 25′ radius.

Multiple participants can be heard clearly, enabling natural conversations for productive group meetings conducted over the internet using the platform or service of your choice (Teams, Zoom, and more).

The AC-404’s 3.5mm connector can be used as a headphone jack to monitor or record your calls. The included USB cable provides plug-and-play connectivity to Mac/Windows computers.

Clear, Natural Conversations for Meetings over the Internet

  • Three capsules designed for broad 25′ audio pickup in an 180° arc with high voice intelligibility
  • Compatible with any web-conferencing platform (Zoom, Teams, and more)
  • Easy plug-and-play connectivity for use with Mac and Windows computers—no batteries required
  • Headphone jack to monitor/record your calls
  • Professional low-profile design with durable all-metal construction
SKU: ACVC Category: Tag:
Weight 0.900 kg

Marshall Electronics CV610-U2 Full HD USB 2.0 PTZ Camera (Black) Specs

Image Sensor
Image Sensor 1-Chip 1/2.8″ CMOS Sensor
Sensor Resolution 5 x
Camera
Max Digital Zoom 12x
Lens
Optical Zoom Ratio 10x
Focal Length 4.7mm
Maximum Aperture f/1.8 to 14
Video Output
Broadcast System Compatibility NTSC
Output Formats USB: 1920 x 1080p1280 x 720p640 x 480p
Control
Presets 128
Movement Range Pan: 340°
Tilt: 120°
Interfaces
Video Output Connectors 1 x USB 2.0 Type-B (USB Video) Female
Control Interface 1 x 8-Pin Mini-DIN (RS-232)
Physical
Dimensions 6.34 x 5.83 x 5.2″ / 16.1 x 14.8 x 13.2 cm
Weight 2 lb / 900 g
Packaging Info
Package Weight 5.315 lb
Box Dimensions (LxWxH) 10.4 x 8.8 x 8.55″

MXL AC-404 Portable USB Boundary Conferencing Microphone (Black) Specs

Microphone
Primary Applications Web-Streaming, Conferencing
Form Factor Boundary/Surface Mount
Intended Sound Sources Vocals
Sound Field Mono
Capsule 3 x Condenser
Polar Pattern Hemispherical/Half-Omnidirectional
High-Pass Filter None
Gain Adjustment None
Performance
Frequency Range 40 Hz to 16 kHz
Connectivity
Output Connectors (Analog) None
Output Connectors (Digital) 1 x USB Type-A
Headphone Connector 1 x 1/8″ / 3.5 mm
Wireless Connectivity None
Bluetooth None
Digital Audio
A/D Conversion 16-Bit Delta-Sigma
Sample Rate 44.1 kHz
48 kHz
Operating System Support Windows, macOS/OS X
Available Port USB 2.0
Power
Bus Power USB
Operating Voltage Not Specified by Manufacturer
Physical
Color Black
Mounting Surface-Mount
Included Case None
Included Filters None
Construction Material Metal
Dimensions H: 2 x W: 4.3 x L: 2.9″ / H: 50.8 x W: 109.2 x L: 73.7 mm
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 10.15 x 4.15 x 2.1″
