Nady Encore Duet Dual Receiver VHF Wireless Guitar System

Add to Wishlist

AED699.00

Add to Wishlist
Key Features
  • B / 185.150MHz & D / 209.150MHz
  • Dual Instrument Operation
  • Two WGT Instrument Bodypack Transmitters
  • XLR and 1/4″ Outputs
  • 9V Battery Operation up to 15 Hours

Nady Encore Duet Overview

The Encore Duet Dual Receiver VHF Wireless Guitar System by Nady brings you a complete wireless solution for up to two guitars or other instruments and is a cost-effective, cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.

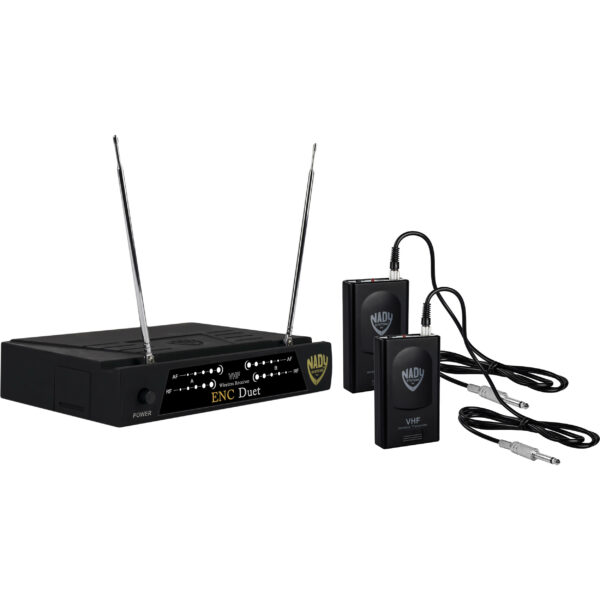

The Encore Duet allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, two WGT Instrument Bodypack transmitters and 1/4″ phone and XLR outputs for connection to PA systems. Each transmitter operates up to 15 hours on a single 9V battery.

Available on selected frequencies in the VHF high-band (171-216 MHz) for low-interference, long-range performance

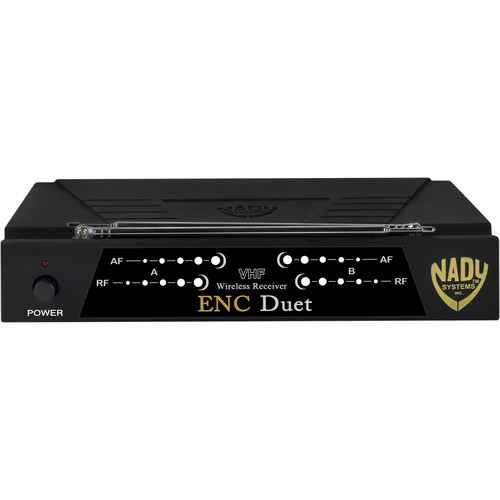

Half-rack receiver design with retractable front panel antennas
Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
RF and AF 5-LED displays for monitoring incoming signal strength and audio level
Balanced XLR and unbalanced adjustable ¼” jack output
Noiseless transmitter On/Off switching
Operates up to 15 hours on a single 9V alkaline battery
Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
Easily accessible Input Level Adjust for optimum sound
This system includes two WGT Instrument Bodypack transmitters

WGT Instrument Bodypack Transmitters

Off/Standby/On switch allows convenient audio muting with the transmitter on
Input level adjust
Locking 3.5mm jack
LED status indicator flashes once for unit on, lights steady for low-battery alert
SKU: ENCORE DUET GT/B&D Category: Tag:

Nady Encore Duet Specs

System
Type of System Dual Channel VHF
RF Carrier Frequency Range 2 channels between 169-216MHz
Approx. Working Range Up to 250 ft. typical (depending on site conditions)
Up to 500+ feet optimum line-of-sight
Overall Frequency Response 25Hz – 20kHz, +/-3dB
Total Harmonic Distortion (THD) < 0.3 %
Frequency Stability +/- 0.005%
crystal controlled
Modulation FM (F3E)
+/-20kHz max
Receiver

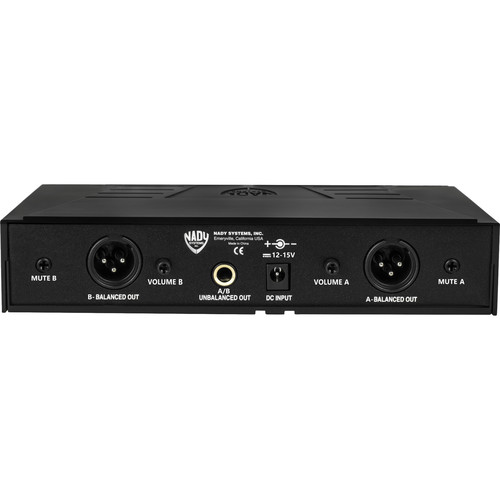

Type of Outputs Dual balanced XLR and unbalanced adjustable 1/4″ audio out jacks (Ch A & B mixed)
2.1 mm barrel-type DC input jack
Power Requirements 12V @ 400mA, nominal
AC/DC adapter supplied
LED Indicators Power ON, Dual 5-LED RF and AF level displays(Ch A/B)
Antenna Type 11.2″ (28.5 cm), dual telescopic
Dimensions 1.75 x 7.5 x 8.1″ (4.4 x 19 x 20.7 cm)
Weight 1.6 lb (0.73 kg)
Transmitter
Type of Transmitter WGT instrument bodypack
Polar Pattern Omnidirectional
Battery Type/Approx. Life Battery: 9V Alkaline
Battery Life: Up to 15 hours
Mute Switch Off/On Switch
Display Low-battery LED
Dimensions 4.1 x 2.4 x 0.8″ (10.4 x 6.1 x 2.0 cm)
Weight 3.6 oz (101 g)
Packaging Info
Package Weight 3.05 lb
Box Dimensions (LxWxH) 11.89 x 11.417 x 2.362″
