Nady U-2100 Over-the-Ear Omnidirectional UHF Wireless System with 2 x HM-35 Headmic Condenser Microphones

Add to Wishlist

AED1,199.00

Add to Wishlist

Nady U-2100 Overview

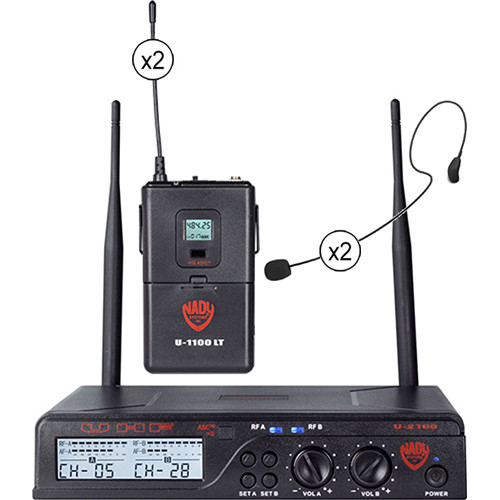

The U-2100 Omnidirectional UHF Wireless System from Nadyincludes a 100-channel U-2100 dual receiver, an AC-2100 power supply, two HT-1100 handheld transmitter microphones, and two HM-35 omnidirectional headmic condenser microphones. The U-2100 has 100 selectable UHF frequencies to provide clear and transparent audio with full frequency response. The rugged ABS housing doesn’t give way for a long time. The system offers uninterrupted PLL UHF performance with 120 dB dynamic range and line-of-sight operation up to 500′.

The HM-35 omnidirectional headmic condenser microphone is optimally designed for singing and speech applications. The HM-35’s small size and light weight make it ideal for all hands-free use with minimum visibility. It is suitable for singers/musicians (drummers, keyboard players), vocal/dance performers, DJs, television announcers, public speakers, and aerobics instructors.

U-2100 Wireless Receiver

Uninterrupted PLL UHF performance with 120 dB dynamic range and up to 500′ line-of-sight operation
100 UHF frequencies per band
Frequency Auto-Scan for quickly, conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
Rear-panel removable swivel-BNC antennas
Front-panel touch-control buttons for ease of channel selection and ASC operation
Full front-panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

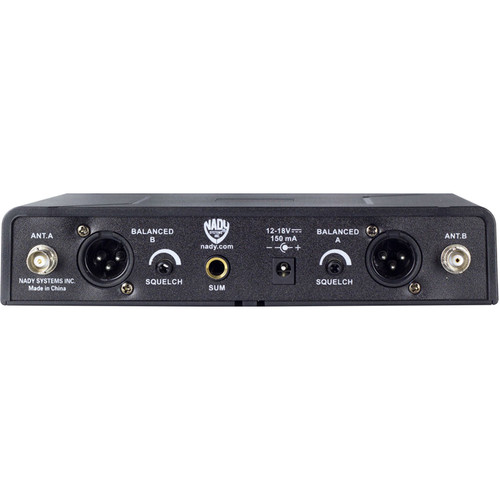

Back-panel, balanced-XLR fixed Mic Level and adjustable unbalanced 1/4″ jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
Externally powered with included universal voltages 110 V-220 VAC / 13.5 VDC 400mA adapter
Rugged all-ABS plastic housing for long-term durability
Includes two U-1100HT handheld microphones with neodymium dynamic cartridge for optimal true sound, maximum feedback rejection, and minimal handling noise

U-1100 HT Handheld Microphone Transmitter

Touch buttons for On/Off power and Mute allow convenient audio muting with the transmitter on
LCD display (with backlighting) including Channel and Frequency Selected, Battery Level status
Manual selectable channel with Up/Down recessed buttons or ASC sync with RX selected Channel and Frequency
Convenient, economical operation with two AA alkaline or NiMH batteries
Features a unidirectional neodymium dynamic cartridge for optimal true sound, maximum feedback rejection and minimal handling noise
Sleek housing with internal antenna for durable long life and optimum aesthetics

HM-35 Headset Microphone

Wide bandwidth, omnidirectional electret condenser microphone ensures clean transparent audio and enhanced vocal pickup with improved gain before feedback
Durable, thin metal frame can be easily molded to any user
Ergonomic single-ear design and comfortable fit with or without glasses, hats, or headphones (also no hairstyle hindrance)
Tiny capsule with diameter of 5mm for light weight and hours of comfortable use
Three sizes of foam windscreen included to reduce wind and popping noise
Extendable boom fully adjustable 100° for optimum mic-capsule placement
Black color
Low-voltage phantom power required (1.5-6 VDC)
SKU: U-2100 / HM-35 Category: Tag:

Nady U-2100 Specs

System Performance
Operating Frequency Range (A) 480-504.75 MHz and (B) 505-529.75 MHz
Frequency Synthesizer PLL (100 channels selectable) 250 kHz/step
System Frequency Selection
Frequency Response 50 Hz – 18 kHz +/-3 dB
Dynamic Range 120 dB
Harmonic Distortion
Modulation FM (F3E) +/-25 kHz normal, +/-75 kHz max
Operating Range 150-250′ (45.7-76.2 m) typical, 500′ (152.4 m) max line-of-sight
Receiver
Receiver Type Dual-conversion Super Heterodyne
Selectivity 60 dB, normal +/-75 kHz offset
Image Rejection -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal
Mute Threshold Adjustable (-65 to -95 dBm)
Controls GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot
Display Two-Digit LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators
Audio Outputs Line Out Unbalanced, adjustable line-audio output; Mic Out Balanced, fixed mic-level audio output
Output Impedance Unbalanced, 1 kOhm and Balanced; for 600-Ohm loads
Power Requirements 13.5 VDC/0.4 A
Antennas Dual-removable swivel-BNC antenna
Housing Material ABS Plastic
Dimensions (W x D x H) 8 x 6 x 1.25″ (20.4 x 15.3 x 3.2 cm)
Weight 15.1 oz (469.7 g)
Handheld Transmitter
RF Output Power +14 dBm (25 mW typical)/50 Ohm
Harmonic & Spurious Emissions -50 dBc normal
Input Impedance 10 kOhms
Controls Power OFF/ON, MUTE
LED Display Channel/Frequency, Battery status, Mute LED
Antenna Type Integral
Battery Type 2 x AA alkaline or NiMH
Battery Life 8-10 hours typical, alkaline
Housing Material ABS Plastic
Dimensions (L x D) 9.5 x 1.5″ (24.1 x 5.1 cm)
Weight 10.4 oz (323.5 g) without batteries
Headset
Element Back electret condenser
Pattern Omnidirectional
Frequency Response 20 Hz to 20 kHz
Sensitivity -42 ± 3 dB
Impedance 1 kOhm: ± 5%
Power Supply 1.5-10 VDC
Cable Length 0.059″ (1.5 mm)
Wiring GND = Pin 1, Hot (+) = Pin 3 -> 2 kOhms -> Pin 2
Output Connector 3.5 mm phono plug
Dimensions 0.197″ (5 mm)
Weight 1.65 oz (23 g)
Packaging Info
Package Weight 2.7 lb
Box Dimensions (LxWxH) 14.1 x 11.9 x 2.9″
