Nady UHF-3 UHF Wireless Lavalier Microphone System

Add to Wishlist

699.00 د.إ

Add to Wishlist
Key Features
  • Frequency Group U1
  • DigiTRU Diversity
  • UB-3 Bodypack Transmitter
  • Lavalier Microphone
  • Audio Mute Switch
  • Balanced XLR and 1/4″ Phone Outputs

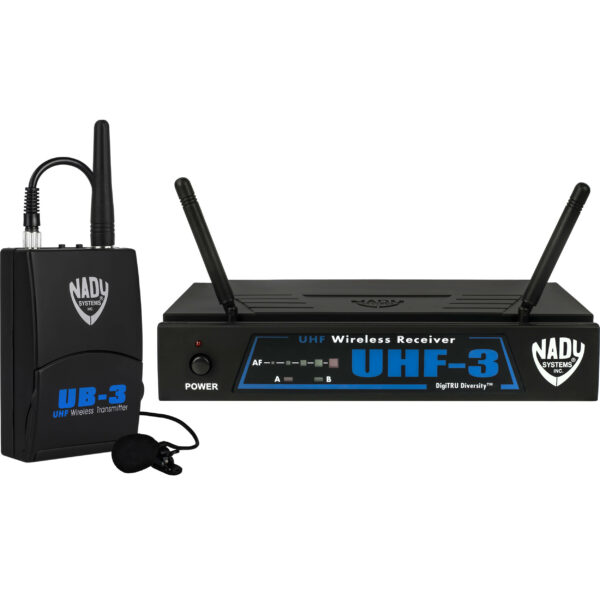

Nady UHF-3 LT Overview

The Nady UHF-3 UHF Wireless Lavalier Microphone System incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke, and much more. The UHF-3 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UB-3 bodypack transmitter, lavalier microphone and UHF-3 receiver. The bodypack transmitter and lavalier microphone provide reliable, hands-free microphone operation during presentations, sermons, performances and more. The receiver features DigiTRU diversity technology for stable reception.

Clear channel UHF operation for optimum interference-free performance in any application or locale
Half-rack receiver design with folding front panel dual antennas
Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
Nady’s proprietary companding circuitry for an industry best 120dB dynamic range, and the clearest, most natural sound available
Tone Squelch for locking out potential interference
UHF-3 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ¼” unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
Includes the UB-3 bodypack transmitter. The UH-3 handheld is sold separately

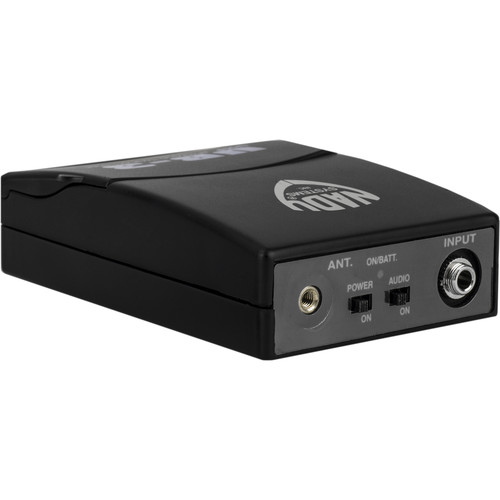

UB-3 Bodypack Transmitter

This system includes a lavalier microphone. A headset microphone is optional.
Audio mute switch allows convenient audio muting with the transmitter on
Bi-color LED status indicator: Unit On (green); low-battery alert (orange)
Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
Uses two AAA alkaline or NiMH batteries
SKU: UHF-3 LT/MU1 Category: Tag:

Nady UHF-3 LT Specs

System
Type of System Bodypack/Lavalier UHF
RF Carrier Frequency Range UHF, choice of single frequencies from 470-500MHz
Approx. Working Range Up to 250 ft. typical (depending on site conditions); up to500+ feet optimum line-of-sight
Overall Frequency Response 30Hz – 18KHz, +/- 3dB
Total Harmonic Distortion (THD) < 0.6%
Frequency Stability +/- 0.005%, crystal controlled
Modulation FM (F3E), +/-20KHz normal
Receiver

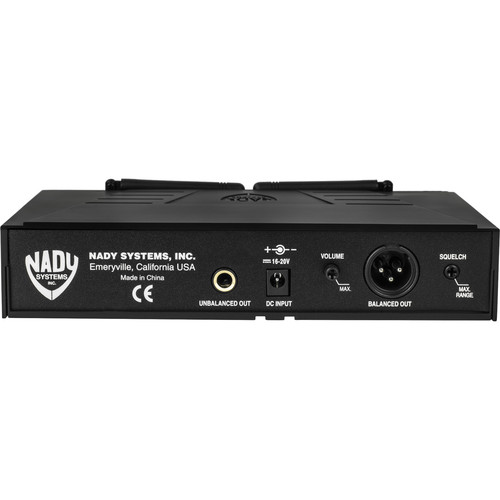

Type of Outputs DC in, 1/4″(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)
Power Requirements DC 18V @ 250 mA, AC/DC adapter included
Display Power ON, Diversity A/B, Audio Peak
Antenna Type 11.2″ (28.5 cm), dual telescopic
Dimensions 1.75 x 7.5 x 8.1″ (4.4 x 19 x 20.7cm)
Weight 1.6 lbs (0.73 kg)
Transmitter
Type of Transmitter Nady UB-3 Bodypack
Type of Microphone Lavalier
Battery Type/Approx. Life AAA Alkaline (2x)
4-5 Hours
Mute Switch POWER/MUTE ON/OFF, INSTRUMENT/
HEADWORN MIC/LAV MIC, INPUT LEVEL
Display Bicolor, Unit “ON” (green), Low BatteryAlert (orange)
Dimensions 3.25 x 2.187 x 1″ (8.25 x 5.53 x 2.54cm)
Weight 2.25 oz (63.78 g) without battery
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH) 11.9 x 11.2 x 2.4″
