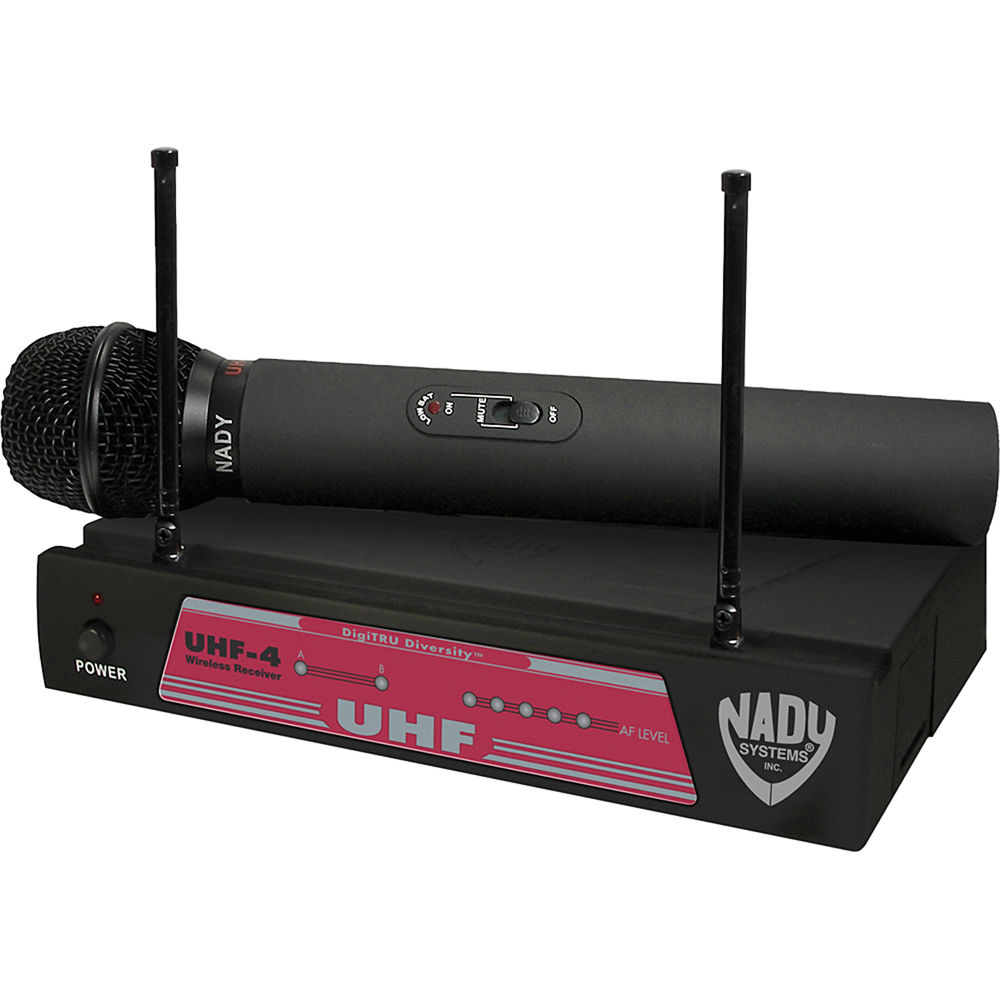

Nady UHF-4 Handheld UHF Wireless Microphone System


499.00 د.إ

Key Features
  • Frequency Group 11
  • DigiTRU Diversity
  • UH-4 Handheld Transmitter
  • DM-10D Unidirectional Capsule

Nady UHF-4 HTĀ Overview

TheĀ Nady UHF-4 Handheld UHF Wireless Microphone SystemĀ incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke, and much more. The UHF-4 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UH-4 handheld microphone transmitter and UHF-4 receiver. The UH-4 handheld transmitter features Nady’s DM-10D neodymium, cardioid capsule for professional sound in any application. The receiver features DigiTRU diversity technology for stable reception.

Unprecedented value in a full-featured, single-channel UHF wireless mic system
Interference-free operation in any application or locale on select UHF frequencies
Half-rack receiver design with folding front panel dual antennas
Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
Tone Squelch for locking out potential interference
Nady’s proprietary companding circuitry for an industry-best 120dB dynamic range, and the clearest, most natural sound available

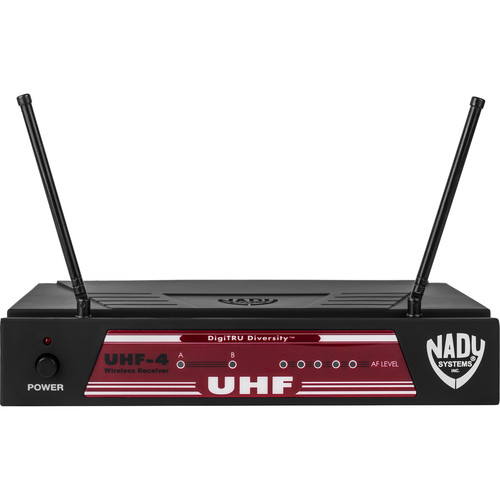

UHF-4 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ¼” unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
The UH-4 handheld transmitter is included. The UB-4 bodypack is sold separately

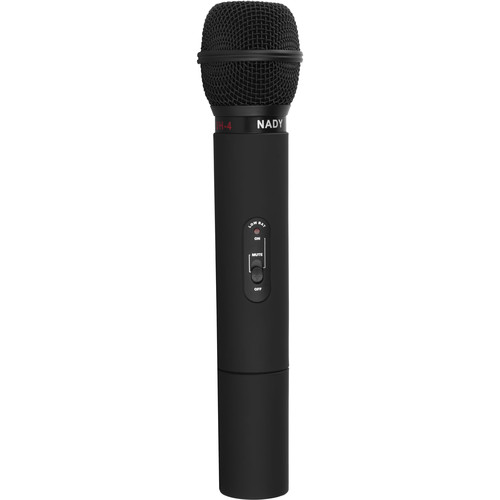

UH-4 Handheld Microphone Transmitter

Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
Off/Standby/On switch allows convenient audio muting while transmitter on
Status LED indicator flashes once for Unit On; lights steady for low-battery alert
Single 9V alkaline or NiMH battery operation

Nady UHF-4 HTĀ Specs

System
Type of System Handheld UHF
RF Carrier Frequency Range UHF, choice of single frequencies within separate bands902-928 and 944-952 MHz
Approx. Working Range Up to 250 ft. typical (depending on site conditions); up to500+ feet optimum line-of-sight
Overall Frequency Response 30Hz – 18KHz, +/- 3dB
Total Harmonic Distortion (THD) < 0.6%
Frequency Stability +/- 0.005%, crystal controlled
Modulation FM (F3E), +/-20KHz normal
Receiver

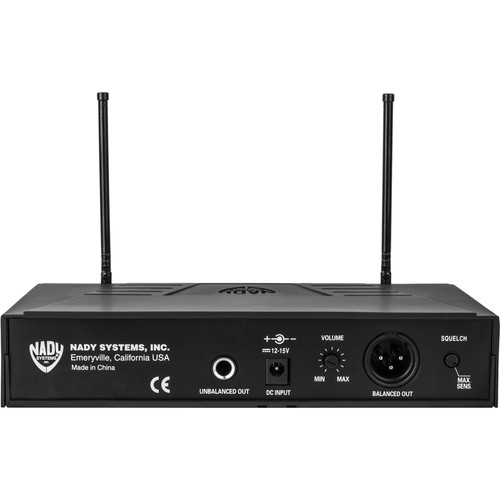

Type of Outputs DC in, 1/4″(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)
Power Requirements DC 15V @ 300 mA, AC/DC adapter included
Display Power ON, Diversity A/B, Audio LED Bars + Peak
Antenna Type 3.5″ (9.0cm), dual telescopic
Dimensions 1.75 x 7.5 x 8.1″ (4.5 x 19 x 20.6cm)
Weight 0.9 lbs (0.41 kg)
Transmitter
Type of Transmitter Nady UH-4 Handheld
Type of Microphone DM-10D Neodymium
Polar Pattern Cardioid
Battery Type/Approx. Life 9V Alkaline10 Hours
Mute Switch POWER/STANDBY/OFF/INPUT LEVEL
Display Single color (red), Unit “ON” (single flash red), Low BatteryAlert (steady red)
Dimensions 9.5 x 2.0″ (24 x 5.1cm)
Weight 6.6 oz (187 g) without battery
Packaging Info
Package Weight 2.575 lb
Box Dimensions (LxWxH) 12 x 11.35 x 2.45″
