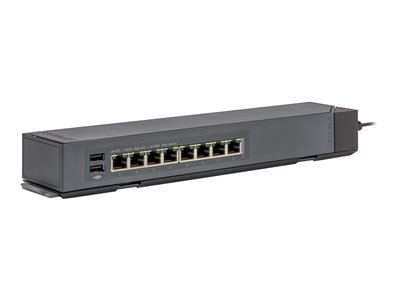

NETGEAR Click GSS108E – switch – 8 ports – managed GSS108E-100NAS


Interface Types:Ā Ethernet RJ45

Electrical Interface:Ā Ethernet Gigabit – 1Gbps

On-Board Cache:Ā 128KB

Bays/Ports/Slots:Ā 8

Voltage:Ā 110-240V Multi

AED399.00

NetGear ProSAFE GSS108E 8-Port Gigabit Web Managed Click Switch – Brand New

NetGear ProSAFE GSS108E 8-Port Gigabit Web Managed Click Switch – Brand New

Your ports and cables where you want them
Today’s networks have increasing numbers of devices attached to them, both wired and wireless. As wired devices proliferate, it can be difficult to easily and neatly place networked ports where you want them.

NETGEAR ProSAFE Click Switchesā„¢ address this issue with an innovative and thoughtful hardware design, including the flexible 1-2-3-4 Click mounting system. The new ProSAFE Click Switches are Gigabit Ethernet switches with an industry-first, bracket mounting system for easy installation. Available in either 8- or 16-Gigabit port configurations, their slim design and internal power supplies enables you to organize wires, secure cables, eliminate bulky power adapters, and improve the overall appearance of wiring closets, training facilities, lab benches, conference rooms, and entertainment centers that require multiple connected devices.

Highlights

  • Unique 1-2-3-4 Click mounting system for flexible placement options
  • Cable management with provided retaining strap
  • Multi-directional power cable to optimize placement
  • Internal power supply to eliminate power brick
  • 2 USB ports for quick access to charging tablets or smartphones
  • Turn LED lights ON/OFF for non-distracting operation in dark environments such as next to a TV

NETGEAR Plus Switch features including:

  • VLAN support for traffic segmentation
  • Troubleshoot connection issues via cable test
  • Loop detection and broadcast storm controls
  • IGMP snooping v1, v2 and v3 support for multicast optimization
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • No fan for silent operation
  • Reinforced plastic for rugged durability
  • Jumbo frame support
  • Energy Efficient Ethernet (IEEE802.3az) support for maxium power savings
SKU: GSS108E-100NAS Category: Tags: , , ,

Specifications

General
Device Type Switch – 8 ports – managed
Enclosure Type Desktop
Ports 8 x 10/100/1000 + 2 x USB
Performance Bandwidth: 16 Gbps
Capacity Virtual interfaces (VLANs): 64Ā Layer 2 multicast groups: 128
MAC Address Table Size 8K entries
Jumbo Frame Support 16KB
Remote Management Protocol TFTP
Features Flow control, network monitoring, VLAN support, IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, vertical mounting, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), horizontal mounting, Jumbo Frames support, plastic housing, fanless, DHCP client, Energy Efficient Ethernet, 2MB packet buffer, loop prevention, Multicast filtering function, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators Port transmission speed, power, link/activity
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45Ā 2 x USB
Power
Power Device Internal power supply
Power Consumption Operational 20.1 Watt
Miscellaneous
Included Accessories Cable retaining straps, 1-2-3-4 mounting kit
MTBF 1,031,177 hours
Compliant Standards VCCI, C-Tick, cUL, EN 60950, EN55022, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, CISPR 22, EN50082-1, CCC, FCC Part 15
Localization Latin America, North America
Software / System Requirements
Software Included Drivers & Utilities
Dimensions & Weight
Width 2.6 in
Depth 12 in
Height 1.4 in
Weight 15.52 oz
Manufacturer Warranty
Service & Support Limited warranty – lifetimeĀ Limited warranty – power supply – 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
General
Capacity Virtual interfaces (VLANs): 64 ¦ Layer 2 multicast groups: 128
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Device Type Switch – 8 ports – managed
Enclosure Type Desktop
Features Flow control, network monitoring, VLAN support, IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, vertical mounting, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), horizontal mounting, Jumbo Frames support, plastic housing, fanless, DHCP client, Energy Efficient Ethernet, 2MB packet buffer, loop prevention, Multicast filtering function, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support
Jumbo Frame Support 16KB
MAC Address Table Size 8K entries
Performance Bandwidth: 16 Gbps
Ports 8 x 10/100/1000 + 2 x USB
Remote Management Protocol TFTP
Status Indicators Port transmission speed, power, link/activity
Dimensions & Weight
Depth 12 in
Height 1.4 in
Weight 15.52 oz
Width 2.6 in
Environmental Parameters
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 ¦ 2 x USB
Manufacturer Warranty
Service & Support Limited warranty – lifetime ¦ Limited warranty – power supply – 2 years
Miscellaneous
Compliant Standards VCCI, C-Tick, cUL, EN 60950, EN55022, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, CISPR 22, EN50082-1, CCC, FCC Part 15
Included Accessories Cable retaining straps, 1-2-3-4 mounting kit
Localization Latin America, North America
MTBF 1,031,177 hours
Power
Power Consumption Operational 20.1 Watt
Power Device Internal power supply
Software / System Requirements
Software Included Drivers & Utilities
