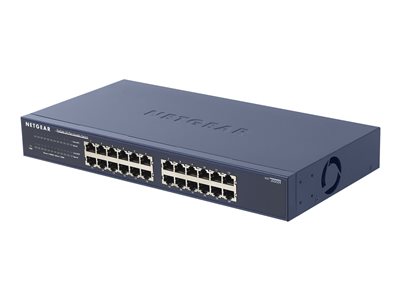

NETGEAR JGS524 – switch – 24 ports – unmanaged JGS524NA
10 in stock
AED899.00
10 in stock
NETGEAR 24-Port Gigabit Ethernet Unmanaged Switch
Overview
The ProSAFE Plus16 and 24-port Gigabit Switch provides simple network management delivering network monitoring, traffic prioritization and network segmentation beyond simple connectivity. They also come with features such as IGMP snooping, cable diagnostics, loop prevention and Auto DoS prevention, providing much needed improvement for network performance and resilience.
High capacity
1000-Mbps speeds and a switching capacity meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.
Affordable
Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.
Flexible
Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10-, 100-, and 1000-Mbps devices on your network.
Convenient
Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. They are compact enough for the desktop.
Specifications
| Device Type | Switch – 24 ports – unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| MAC Address Table Size | 8K entries |
| Features | Flow control, full duplex capability, auto-sensing per device, auto-uplink (auto MDI/MDI-X), Jumbo Frames support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x |
| RAM | 2 MB |
| Status Indicators | Port transmission speed, power, link/activity |
| Interfaces | 24 x 1000Base-T RJ-45 |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 16 Watt |
| Rack Mounting Kit | Included |
| MTBF | 230,000 hours |
| Compliant Standards | FCC Class A certified, C-Tick, cUL, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, FCC Part 15, RoHS, WEEE |
| Localization | United States |
| Width | 13 in |
| Depth | 8.1 in |
| Height | 1.7 in |
| Weight | 3.75 lbs |
| Service & Support | NETGEAR lifetime warranty |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 – 90% |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch – 24 ports – unmanaged |
| Enclosure Type | Desktop |
| Features | Flow control, full duplex capability, auto-sensing per device, auto-uplink (auto MDI/MDI-X), Jumbo Frames support |
| MAC Address Table Size | 8K entries |
| Ports | 24 x 10/100/1000 |
| RAM | 2 MB |
| Status Indicators | Port transmission speed, power, link/activity |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 8.1 in |
| Height | 1.7 in |
| Weight | 3.75 lbs |
| Width | 13 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 0 – 90% |
| Max Operating Temperature | 122 °F |
| Min Operating Temperature | 32 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 1000Base-T RJ-45 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | NETGEAR lifetime warranty |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC Class A certified, C-Tick, cUL, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, FCC Part 15, RoHS, WEEE |
| Localization | United States |
| MTBF | 230,000 hours |
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Power Consumption Operational | 16 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
