Switches

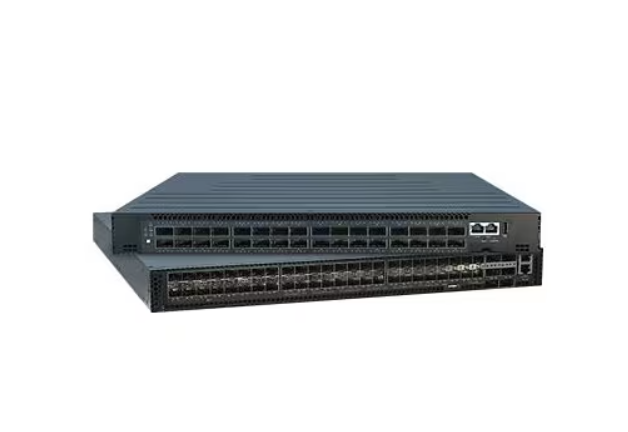

NetScout nGenius 7000 Series Packet Flow Switch 7010 – switch – 54 ports – managed – rack-mountable
Quick tech specs
- Switch
- 6 x 40 Gigabit QSFP+ + 48 x 1 Gigabit / 10 Gigabit SFP+
- rack-mountable
- 240 V
- managed
- front to back airflow
- AC 100
AED51,199.00
Know your gear
The nGenius Packet Flow Switch (PFS) 7000 series models operate at high speeds. In addition to core packet broker functionality, such as filtering, load balancing, aggregation, and replication, they provide advanced capabilities including header stripping, L2GRE tunnel origination and termination, time stamping, and external PowerSafe TAP integration. Enabled with self-organizing mesh technology, the nGenius PFS 7000 series easily scales for massive network monitoring needs.
| Category | Specification |
|---|
| Overview |
| Brand | NetScout |
| Product Line | NetScout nGenius 7000 Series Packet Flow Switch |
| Model | 7010 |
| Manufacturer | NETSCOUT |
| Network & Communication |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3u, IEEE 802.3z |
| Features | 4+1 redundant fans, ARP support, ERSPAN, GRE tunneling, Hot swappable 4+1 fans, Hot swappable power supply, pStack, MPLS support, NTP, NVGRE, Reset button, Syslog, VXLAN, VLAN support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Manageable | Yes |
| Ports | 54 |
| Product Type | Switch |
| Remote Management | CLI, HTTP, HTTPS, NETCONF, NTP, SNMP, SSH |
| Status Indicators | Link/activity |
| Subcategory | Network hubs and switches |
| Switching Type | 40 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x 1000Base-T RJ-45 management, 1 x serial (console) RJ-45 management, 48 x 1/10Gbit LAN SFP+, 6 x 400Gbit LAN QSFP+ |
| Port Quantity | 6 |
| Port Type | 40 Gigabit QSFP+ |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit SFP+ |
| Power |
| Features | Front-to-rear airflow |
| Frequency | 50 – 60 hertz |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 400 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Redundant Power Supply Supported | 1+1 |
| Technical Information |
| Encryption | SSL, TLS |
| Max Operating Temperature | 104 degrees Fahrenheit |
| Max Storage Temperature | 158 degrees Fahrenheit |
| Min Operating Temperature | 32 degrees Fahrenheit |
| Min Storage Temperature | -40 degrees Fahrenheit |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Airflow Direction | Front to back airflow |
| Authentication Method | RADIUS, TACACS+ |
| Capacity | 10G ports (with QSFP+ breakout): 72 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Ports (2nd) Quantity | 48 |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 19.73 lbs |
| Width | 17.2 inch |
| Depth | 18.6 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, CNS 13138 Class A, cUL, EN 300386 Class A, EN 55032 Class A, EN 61000, FCC Part 15 B, ICES-003 Class A, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, KCC Class A, TUV GS, UL, UL 60950-1, VCCI Class A |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
