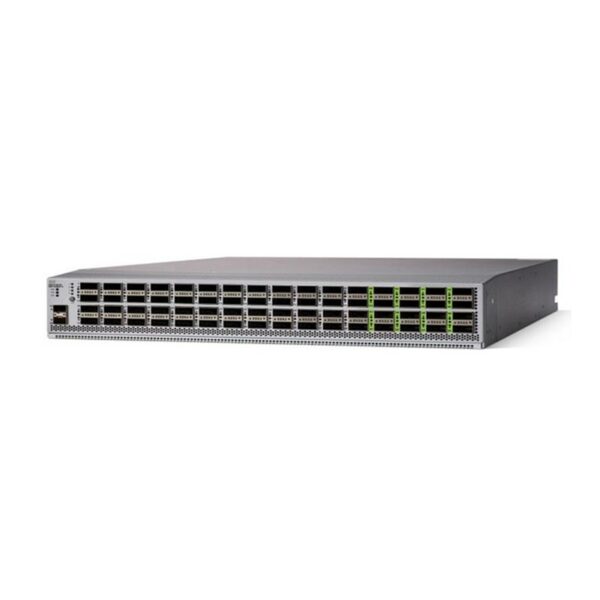

N3K-C3264C-E is the Nexus 3264C-E switch with 64 QSFP28. The Cisco Nexus 3264C-E switch is a dense, high-performance, power-efficient, 100-Gbps switch designed for the data center. This 2-Rack-Unit (2RU) model offers wire-rate Layer 2 and 3 switching on all ports with latency of 450ns. Cisco Nexus 3264C-E introduces MACsec to the 3200 family, offering 16 ports of MACsec.
The Cisco Nexus 3264C-E supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs.
The Cisco Nexus 3264C-E is a Quad Small Form-Factor Pluggable (QSFP) switch with 64 QSFP28 ports. Each QSFP28 port can operate at 10, 25, 40, 50, and 100 Gbps, up to a maximum of 128 x 25-Gbps ports.
N3K-C3264C-E Specification |
|
| Physical | · 64 fixed 100-Gigabit Ethernet QSFP28 ports
· 16 fixed ports of MACsec · Beacon LED · Environment LED · Status LED · Lane-selected LED · Dual redundant power supplies · Redundant (3+1) fans · 2 100/1000-Mbps SFP ports (port 65 and port 66 in front) · 1 RS-232 serial console port · 1 RJ45 and 1 SFP Management port · 1 USB port |
| Performance | · Line-rate traffic throughput (both Layer 2 and 3) on all ports
· 12.8 -Tbps switching capacity · Configurable Maximum Transmission Units (MTUs) of up to 9416 bytes (jumbo frames) |
| Typical operating power | 392W |
| Maximum power | 1263W |
| Typical heat dissipation | 1337 BTUs/hour |
| Maximum heat dissipation | 4309 BTUs/hour |
| Max Mac Addresses | Host Mode (urpf disabled):73K
L2 (urpf disabled): 200K |
| Max IPv4 Host routes | Host Mode (urpf disabled):73K
L2 (urpf disabled): 200K |
| Max IPv6 Host routes | Host Mode (urpf disabled):100K
L2 (urpf disabled): 36K |
| Max IPv4 LPM routes | Host Mode (urpf disabled):100K
L2 (urpf disabled): 28K |
| Max IPv6 LPM routes (<=64) | Host Mode (urpf disabled):12K
L2 (urpf disabled): 12K |
| Max IPv4 LPM routes (>64 & <128) | Host Mode (urpf disabled):1024
L2 (urpf disabled): 1024 |
| Number of VLANs | 4096 |
| Number of ACL entries | 6000 Ingress
1000 Egress |
| Number of spanning-tree instances | Rapid Spanning Tree Protocol (RSTP): 512
Multiple Spanning Tree (MST) Protocol: 64 |
| Number of EtherChannels | 256 |
| Number of ports per EtherChannel | 32 |
| Buffer size | 42 Mb |
| Boot flash memory | 128 GB |
| Number of power supplies | 2 (redundant) |
| Power supply types | AC (forward and reversed airflow) |
| Input voltage | 100 to 240 VAC |
| Frequency | 50 to 60 Hz |
| Power supply efficiency | 89 to 91% at 220V |
| Forward and reversed airflow schemes
· Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) · Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) 4 individual, hot-swappable fans (3+1 redundant) |
|
| Dimensions (height x width x depth) | 3.39 x 17.4 x 23.5 in. (4.36 x 43.9 x 46.7 cm) |
| Weight | 34.82 lbs (15.79kg) |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | –40° to 158°F (-40° to 70°C) |
| Relative humidity | 5 to 95% noncondensing |
| Altitude (operating) | Designed to meet: –500 ft to 13,123 ft |
| Altitude (Nonoperating) | –1000 ft to 30,000 ft |
