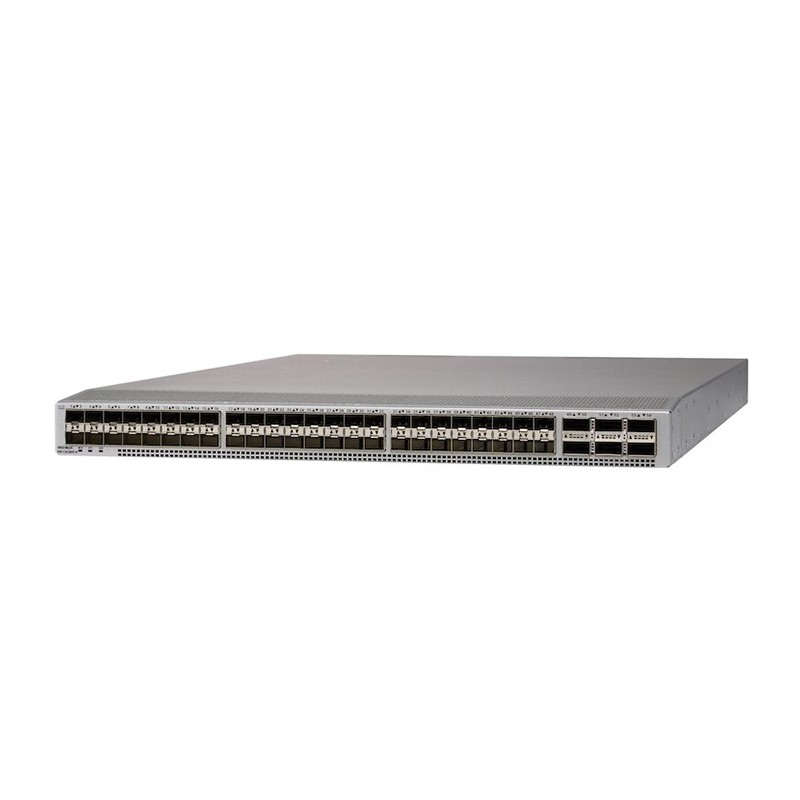

N3K-C36180YC-R is the Nexus 36180YC-R, with 48p 10/25G and 6p QSFP28. The Cisco Nexus C36180YC-R is a high-speed, high-density, 1, 10, 25, 40, or 100 Gigabit Ethernet switch designed for data center aggregation. The large buffers and routing table sizes of the Cisco Nexus C36180YC-R also make this switch an alternative for a wide range of applications, such as IP storage, Demilitarized Zone (DMZ), big data, and edge routing. The switch comes in a compact 1-Rack-Unit (1RU) form factor and provides extensive Layer 2 and Layer 3 functions. It is part of the R-Series family and runs the industry-leading NX-OS operating system software.
N3K-C36180YC-R Specification |
||
| Physical | Ā· 1RU fixed-form-factor switch
Ā· 48 SFP ports; each supports native 25, 10, or 1 Gigabit Ethernet mode Ā· 6 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes Ā· 2 redundant power supplies Ā· Management, console, and USB flash-memory ports |
|
| Performance | Ā· 1.8-Tbps switching capacity
Ā· Forwarding rate of up to 1.67 bpps Ā· Line-rate traffic throughput (both Layer 2 and 3) on all ports, for packet size bigger than 115B Ā· Configurable Maximum Transmission Unit (MTU) of up to 9216 bytes (jumbo frames) |
|
| Hardware tables and scalability | Number of MAC addresses | 750,000 |
| Number of VLANS | 4096 | |
| Number of spanning-tree instances | Ā· Rapid Spanning Tree Protocol (RSTP): 512
Ā· Multiple Spanning Tree Protocol (MSTP): 64 |
|
| Number of ACL entries | Ā· 7000 ingress | |
| Routing table | Ā· Maximum number of Longest-Prefix-Match (LPM) routes: 256,000
Ā· Maximum number of IP host entries: 750,000 Ā· Maximum number of MAC address entries: 750,000 Ā· Maximum number of Layer 3 multicast entries: 128,000 |
|
| Number of EtherChannels | 256 (with vPC) | |
| Number of ports per EtherChannel | 32 | |
| Buffer size | 8 GB | |
| System memory | 32 GB | |
| Boot-flash memory | 128 GB | |
| Frequency | 50 to 60 Hz | |
| Power | Power-supply types | AC (forward and reverse airflow) DC (port-side exhaust) |
| Typical operating power | Watts (W) | |
| Maximum power | 771W | |
| AC Power-Supply Units (PSUs)
Ā· Input voltage Ā· Frequency Efficiency |
Ā· 100 to 240 VAC Ā· 50 to 60 Hz 89 to 91% at 220V |
|
| Ā· Power-supply efficiency | Ā· 89 to 91% at 220V | |
| Maximum heat dissipation | 2,631MBTU | |
| Ā· Forward and reverse airflow schemes
ā¦Ā Ā Ā Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits throughĀ ports) ā¦Ā Ā Ā Reverse airflow: Port-side intake (air enters through ports and exits through fan tray and powerĀ supplies) Hot-swappable (must swap within 1 minute) |
||
| Cooling | Measured sound power (maximum)
Ā· Fan speed: 40% duty cycle Ā· Fan speed: 70% duty cycle Ā· Fan speed: 100% duty cycle |
|
| Sound | Dimensions (Height x Width x Depth) |
1.72 x 17.3 x 26.85 in. (4.4 x 43.9 x 68.2 cm) |
| Environment | Weight | 27.1 lb (12.3 kg) |
| Temperature: Operating | 32 to 104Ā°F (0 to 40Ā°C) | |
| Temperature: Storage | ā40 to 158Ā°F (ā40 to 70Ā°C) | |
| Relative humidity: Operating | Ā· 10 to 85% noncondensing
Ā· Up to 5 days at maximum (85%) humidity Recommend American Society of Heating, Refrigeration, and |
|
| Relative humidity: Storage | Ā· 5 to 95% noncondensing | |
| Altitude | 0 to 10,000 ft (0 to 3000m) | |
