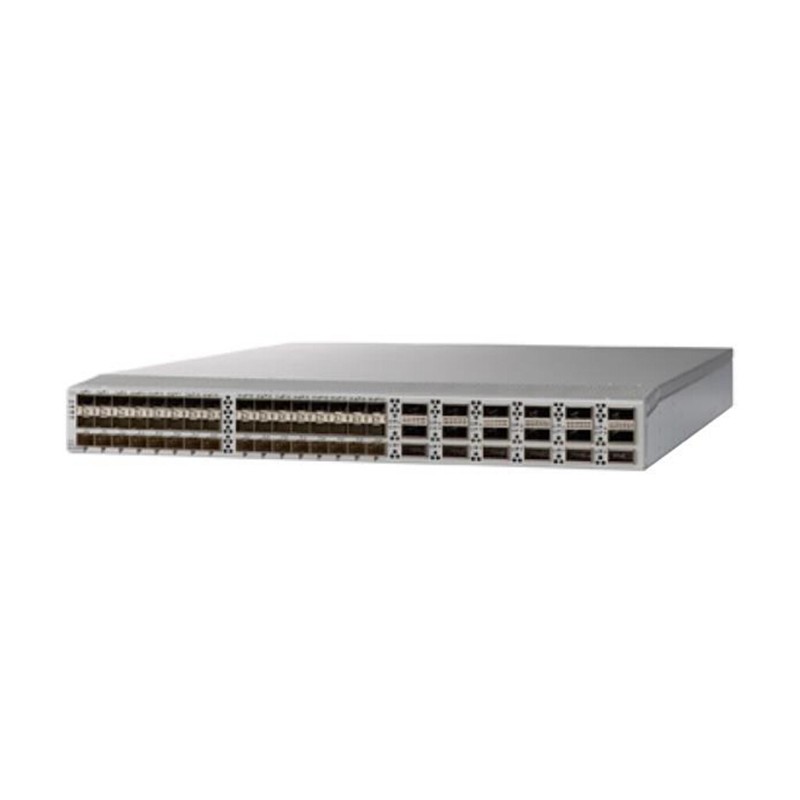

N9K-C92300YC is the Nexus 9200 with 48p 10/25 Gbps and 18p 100G QSFP28. Built on the latest Cisco Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.
N9K-C92300YC Specification |
|
| Ports | 48 x 10- and 25-Gbps SFP+ and 18 100-Gbps ports |
| Supported speeds | 1, 10, and 25 Gbps on SFP+ ports
40, 100 Gbps on QSFP ports |
| Port configuration | 48 x 10/25-Gbps ports for downlinks; 100-Gbps for the uplinks |
| Telemetry support | – |
| CPU | 2 cores |
| System memory | 16 GB |
| Solid-State Disk (SSD) drive | 128 GB |
| Shared system buffer | 30 MB |
| Management ports | 2 ports: 1 RJ-45 and 1SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (PSU – up to 2) | 650W AC 1200W HVDC (Roadmap) |
| Typical power (AC) | 10G: 216W
25G: 260W |
| Maximum power (AC) | 603W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | –40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal) |
| Input voltage (HVDC) | 240 to 380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| MTBF (hours) | 365,610 |
| Physical (H x W x D) | 2.00 x 17.2 x 22.3 in. (5.08 x 43.8 x 56.6 cm) |
| Acoustics | 52.1 dBA at 40% fan speed, 62.0 dBA at 70% fan speed, and 71.5 dB at 100% fan speed |
| RoHS compliance | Yes |
| Weight | 18.6 lb (8.4 kg) (without power supplies or fans) |
