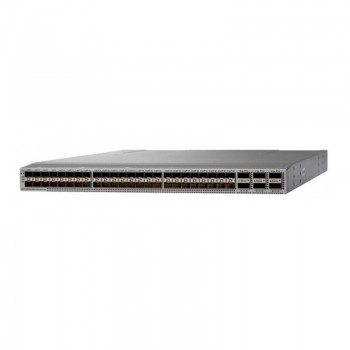

Nexus 9300 with 48p 10/25G SFP+ and 6p 100G QSFP28 N9K-C93180YC-EX
Availability:
10 in stock
AED42,499.00
10 in stock
Nexus 9300 with 48p 10/25G SFP+ and 6p 100G QSFP28
N9K-C93180YC-EX Overview
N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
| Cisco Nexus 93180YC-EX – switch – 48 ports – rack-mountable | |
| Device Type | Switch – 48 ports – L3 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+ |
| Performance | Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4 |
| Features | Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN |
N9K-C93180YC-EX Specification
N9K-C93180YC-EX Specification |
|
| Ports | 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 64 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 210W |
| Maximum power (AC/DC) | 470W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (high-voltage AC [HVAC]) |
200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (high-voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 390,330 hours |
| Maximum number of Longest Prefix Match (LPM) routes | 896,000 |
| Maximum number of IP host entries | 896,000 |
| Maximum number of MAC address entries | 256,000 |
| Maximum number of multicast routes | 32,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000
Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries | Per slice of the forwarding engine:
4000 ingress 2000 egress Total (2 forwarding slices): 8000 ingress 4000 egress |
| Maximum number of VLANs | 3,967 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000
Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Weight (without power supplies or fans) | 17.2 lb (7.8 kg) |
