NTI 16-Port VGA Audio/Video Switch w/ RS232 Control – 16 CPU to 1 Display SE-AV-8-RS

16-Port VGA Audio/Video Switch w/ RS232 Control – 16 CPU to 1 Display

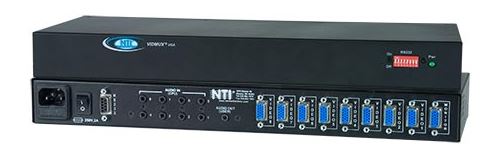

The SE-AV-8-RS VGA video switch enables 8 computers to be connected to a single video monitor, projector or LCD/plasma screen.

• Compatible with PCs, SUNs and MACs with VGA video.
• Supports resolutions up to 1920×1200.
• Eliminate redundant monitors.
• Ideal for classrooms and boardrooms.
• Interconnect NTI switches & splitters for complex applications.
• Monitors and speakers are hot-pluggable.
• RS232 Controls

Audio Option

• 3.5mm stereo audio jacks for inputs and output.
• Maximum input/output levels: 4Vp-p (line level).
• Input impedance: 10k Ohms.
• Output impedance: 32 Ohms.
• Signal-to-Noise Ration (SNR): 87 dBA
• Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB.
• Total Harmonic Distortion + Noise: 0.02% at 1kHz.
• Requires powered speakers or headphones.
• CD quality audio output.

RS232 Control Option

• Female DB9 connector.
• Baud rate 300 through 9600.
• Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.

RS232 Commands

• RS – causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
• CS – causes one INx/OUTx connection to occur.
• CA – causes all inputs to connect to specified output.
• RO – reads what input is connected to specified output.
• RU – reads size of matrix, reports number of inputs and number of outputs on specified switch.
