NTI VOPEX 16-Port S-Video & Audio Splitter/Extender via CAT5

The NTI VOPEX® VOPEX-C5SVA-16 S-Video and Audio Splitter/Extender simultaneously displays high-resolution video from one computer source to 16 remote locations via Cat5 UTP cable. The VOPEX-C5SVA-16 is a real-time system which supports remote s-video devices up to 600 feet from the computer as well as local display.  The VOPEX S-Video Splitter/Extender system has two components: the VOPEX-C5SVA-16 S-Video broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX ST-C5SVA-R-600 remote unit (sold separately) for each remote monitor. The units are interconnected by CAT5 cable.

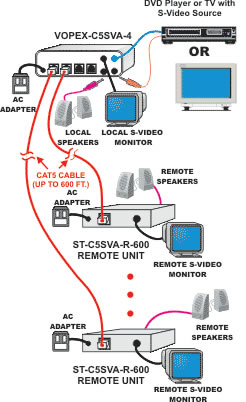

NTI VOPEX S-Video & Audio Splitter/Extender System Diagram

NTI VOPEX-C5SVA-16 Features:

• Broadcast real-time s-video or audio/s-video to multiple display locations.
• Accompanying audio can be broadcast to self-powered stereo speakers at the remote unit as well as each remote location.
• Supports maximum s-video resolution – 800×600 at distances up to 600 feet.
• Easily expandable. Add remote units as you add monitors
• Inexpensive CAT5 cable replaces bulky video cables.
• A pure hardware solution – no software conflicts.

NTI VOPEX-C5SVA-16 Details:

• Video Input
  • Supports computers and video devices with s-video output.
  • Female 4-pin miniDIN connector.
  • Input impedance: 75 Ohms.
  • Maximum input levels for s-video: 1.45 p-p.
  • Video is DC coupled.
• Video Output
  • Female 4-pin miniDIN connector.
  • Compatible with s-video.
  • 800×600 video resolution.
  • Output impedance: 75 Ohms.
  • Maximum output level for s-video: 1.45Vp-p
• Cables
  • 3-foot s-video cable included.
  • 3-foot audio cable included with unit with audio option.
  • CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

NTI VOPEX-C5SVA-16 Specifications:
