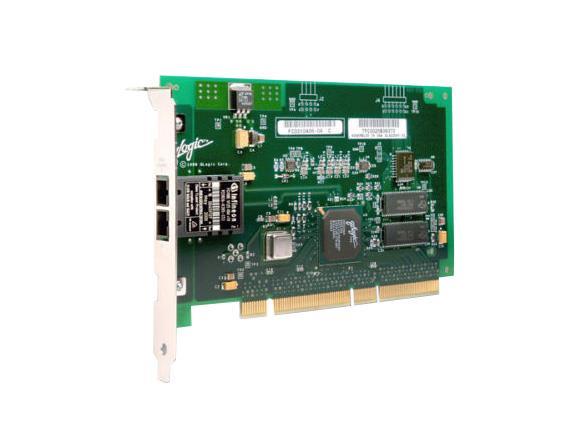

Qlogic Gigabit Single Port Optical PCI Fiber Fibre Channel Host Bus Adapter QLA2200F/66 – New Pull
The QLA22xx HBA is an intelligent, high-performance, DMA bus master host adapter designed for high-end systems. The intelligence and performance are derived from the ISP22xx chips, making the QLA22xx HBA a leading-edge host adapter. The ISP22xx combines a powerful RISC processor, a fibre protocol module (FPM) with gigabit transceivers, and a peripheral component interconnect (PCI) local bus interface in a single-chip solution. The QLA22xx HBA supports all FC peripherals that support private loop direct attach (PLDA) and fabric loop attach (FLA). Installation of the QLA22xx HBA is quick and easy.
| Weight | 0.907 kg |
|---|
ā Ā Compliance with PCI version 2.2 specification
ā Ā Compliance withĀ Third Generation Fibre Channel Physical and Signaling
InterfaceĀ (FC-PH-3) standard
ā Ā Compliance withĀ Fibre Channel-Arbitrated LoopĀ (FC-AL-2) standard
ā Ā Compliance with U.S. and international safety and emissions standards
ā Ā Support for bus master DMA
ā Ā Fast!UTIL BIOS utility to customize the configuration parameters on the
QLA22xxĀ HBA and attached drives
ā Ā Two independent channels on a single HBA (QLA2202F HBA)
ā Ā Two independent channels, one of which supports internal and external
connections (QLA2212F HBA)
ā Ā Four independent channels on a single HBA (QLA2204F HBA)
ā Ā Supports Fibre Channel SCSI (FCP-SCSI) and internet protocol (IP) protocols
ā Ā Supports point-to-point fabric connection (F-PORT FABRIC LOGIN)
